5678 Series

Manufacturer: BRADY

Catalog

B689 5678-I WHT/GRN STYLE I

Part	Legend (Text)	Applications	Color - Legend	Shape	Material - Body	Width	Width	Legend (Symbol Only)	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Max) [diameter]	Application Specifics	Location	Length	Length	Mounting Type	Print Type	Features	Outside Pipe Diameter (Min)	Outside Pipe Diameter (Min) [Min]	Language	Arrangement	Color - Background	Outside Pipe Diameter (Max) [Max] [diameter]	Outside Pipe Diameter (Max) [Max] [diameter]	Width [x]	Width [x]	Outside Pipe Diameter (Min) [Min]	Outside Pipe Diameter (Max) [Max]	Outside Pipe Diameter (Max) [Max]	Length [x]	Length [x]	Label Type	Label Size [y]	Label Size [x]	Label Size [y]	Label Size [x]	Color	Material
BRADY 5678-I	Drain	Pipe	White	Rectangle	Plastic	8 in	203.2 mm	Directional Arrow	1.5 in	38.1 mm	Directionality	Outdoor	9 in	228.6 mm	Snap On	Pre-Printed	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	60.33 mm	2.375 in	63000 A 69000 A	Symbol and Text	Green
BRADY 5678-O	Drain	Pipe	White	Rectangle	Plastic			Directional Arrow			Directionality	Outdoor	8 in	203.2 mm	Snap On	Pre-Printed	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	34.93 mm	1.375 in	63000 A 69000 A	Symbol and Text	Green	0.5 in	12.7 mm	127 mm	127 mm

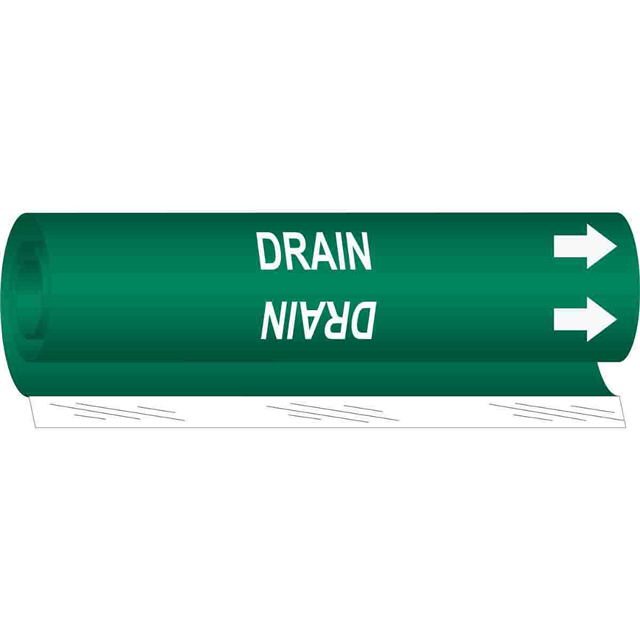

BRADY 5678-II	Drain	General	White	Rectangle	Plastic	12 in	304.8 mm	Directional Arrow			Directionality	Outdoor				Pre-Printed	Abrasion Resistant Chemical Resistant		7.875 in	63000 A 69000 A	Text Only	Green					200.03 mm	63.5 mm	2.5 in	660.4 mm	26 in
BRADY 5678-HPHV																																Drain	101.6 mm	609.6 mm	4 "	24 in	Green Background White Legend	Polyester
