FLZ3 Series

Catalog

DIODE ZENER 3.4V 500MW SOD80

Part	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Impedance (Max) (Zzt) [Max]	Current - Reverse Leakage @ Vr	Package / Case	Power - Max [Max]	Tolerance	Voltage - Zener (Nom) (Vz)
ON Semiconductor FLZ3V3B	1.2 V	Surface Mount	SOD-80	-65 ░C	347 °F	35 Ohms	14 µA	DO-213AC MINI-MELF SOD-80	500 mW	3 %
ON Semiconductor FLZ3V9A	1.2 V	Surface Mount	SOD-80	-65 ░C	347 °F	40 Ohms	1.4 µA	DO-213AC MINI-MELF SOD-80	500 mW	3 %	3.9 V
ON Semiconductor FLZ3V3B	1.2 V	Surface Mount	SOD-80	-65 ░C	347 °F	35 Ohms	14 µA	DO-213AC MINI-MELF SOD-80	500 mW	3 %

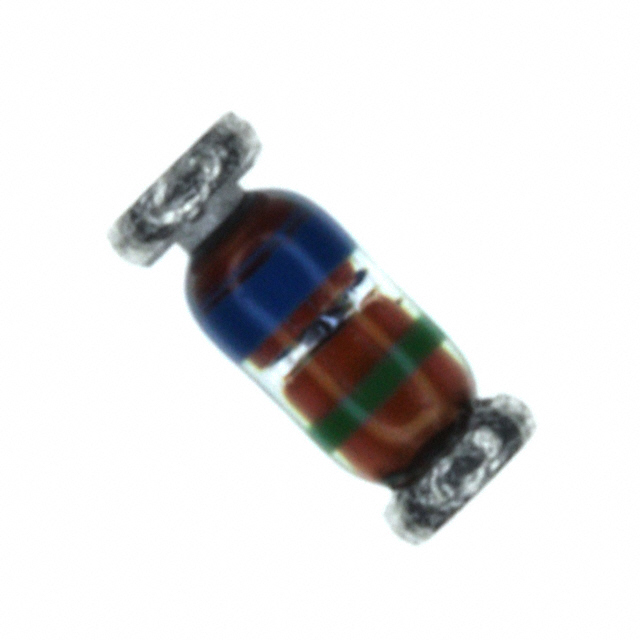

ON Semiconductor FLZ3V6B	1.2 V	Surface Mount	SOD-80	-65 ░C	347 °F	48 Ohms	2.8 µA	DO-213AC MINI-MELF SOD-80	500 mW	3 %	3.7 V
ON Semiconductor FLZ3V0A	1.2 V	Surface Mount	SOD-80	-65 ░C	347 °F	35 Ohms	35 µA	DO-213AC MINI-MELF SOD-80	500 mW	4 %	3 V
ON Semiconductor FLZ3V6A	1.2 V	Surface Mount	SOD-80	-65 ░C	347 °F	48 Ohms	2.8 µA	DO-213AC MINI-MELF SOD-80	500 mW	3 %	3.6 V
ON Semiconductor FLZ3V0B	1.2 V	Surface Mount	SOD-80	-65 ░C	347 °F	35 Ohms	35 µA	DO-213AC MINI-MELF SOD-80	500 mW	3 %	3.1 V
