65025CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

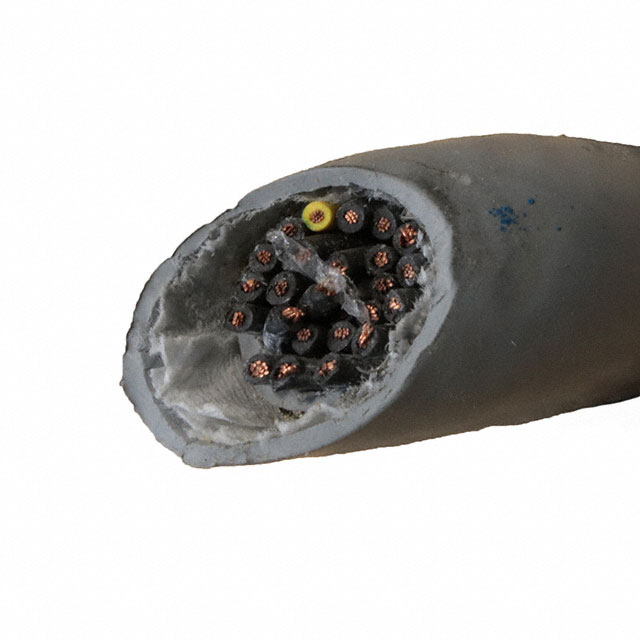

CABLE 25COND 20AWG SHLD 1000'
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Conductor Insulation | Jacket Color | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors [custom] | Cable Type | Features | Shield Type | Jacket (Insulation) Material | Conductor Material | Length | Length | Ratings | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % | Copper Tinned | 0.05 in | 1.27 mm | 20 AWG | Poly-Vinyl Chloride (PVC) | Slate | 600 V | 18.08 mm | 0.712 in | 10 | 30 AWG | 25 | Multi-Conductor | Biological Compatibility | Braid | Poly-Vinyl Chloride (PVC) | Copper Bare | 304.8 m | 1000 ft | ISO 10993 UL Style 2587 | ||
 ALPHA WIRE | 85 % | Copper Tinned | 0.05 in | 1.27 mm | 20 AWG | Poly-Vinyl Chloride (PVC) | Slate | 600 V | 18.08 mm | 0.712 in | 10 | 30 AWG | 25 | Multi-Conductor | Biological Compatibility | Braid | Poly-Vinyl Chloride (PVC) | Copper Bare | ISO 10993 UL Style 2587 | 100 ft | 30.5 m |
