3760 Series
Manufacturer: Pomona Electronics
Beta
⌘K
BINDING POST, 3760 SERIES, 15 A, 70 VDC, TIN PLATED CONTACTS, PANEL MOUNT, VIOLET
| Part | Nut Plating | Cross Hole Diameter | Cross Hole Diameter | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Head Size [diameter] | Head Size [diameter] | Voltage Rating | Material - Insulation | Nut Material | Material - Body | Termination | Plating - Body | Termination Thread | Color | Current Rating (Amps) | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pomona Electronics | Nickel | 2.43 mm | 0.096 in | 0.25 " | 0.07 " | 6.35 mm | 1.77 mm | 0.44 " | 11.18 mm | 33 VAC/DC 70 VDC | Polycarbonate (PC) | Brass | Brass | Threaded and Turret | Tin | 8-32 | Violet | 15 A | Standard |
 Pomona Electronics | Nickel | 2.43 mm | 0.096 in | 0.25 " | 0.07 " | 6.35 mm | 1.77 mm | 0.44 " | 11.18 mm | 33 VAC/DC 70 VDC | Polycarbonate (PC) | Brass | Brass | Threaded and Turret | Tin | 8-32 | Brown | 15 A | Standard |

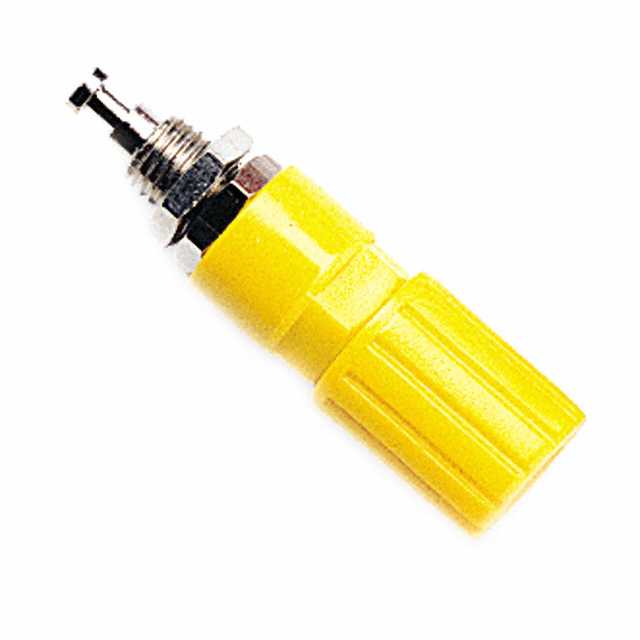

 Pomona Electronics | Nickel | 2.43 mm | 0.096 in | 0.25 " | 0.07 " | 6.35 mm | 1.77 mm | 0.44 " | 11.18 mm | 33 VAC/DC 70 VDC | Polycarbonate (PC) | Brass | Brass | Threaded and Turret | Tin | 8-32 | Yellow | 15 A | Standard |
 Pomona Electronics | Nickel | 2.43 mm | 0.096 in | 0.25 " | 0.07 " | 6.35 mm | 1.77 mm | 0.44 " | 11.18 mm | 33 VAC/DC 70 VDC | Polycarbonate (PC) | Brass | Brass | Threaded and Turret | Tin | 8-32 | 15 A | Standard | |
 Pomona Electronics | Nickel | 2.43 mm | 0.096 in | 0.25 " | 0.07 " | 6.35 mm | 1.77 mm | 0.44 " | 11.18 mm | 33 VAC/DC 70 VDC | Polycarbonate (PC) | Brass | Brass | Threaded and Turret | Tin | 8-32 | Black | 15 A | Standard |
 Pomona Electronics | Nickel | 2.43 mm | 0.096 in | 0.25 " | 0.07 " | 6.35 mm | 1.77 mm | 0.44 " | 11.18 mm | 33 VAC/DC 70 VDC | Polycarbonate (PC) | Brass | Brass | Threaded and Turret | Tin | 8-32 | Black | 15 A | Standard |
 Pomona Electronics | Nickel | 2.43 mm | 0.096 in | 0.25 " | 0.07 " | 6.35 mm | 1.77 mm | 0.44 " | 11.18 mm | 33 VAC/DC 70 VDC | Polycarbonate (PC) | Brass | Brass | Threaded and Turret | Tin | 8-32 | Red | 15 A | Standard |

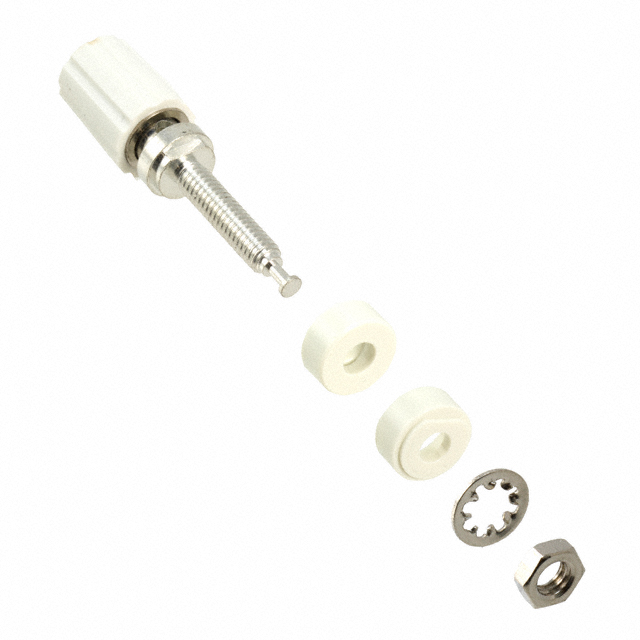

 Pomona Electronics | Nickel | 2.43 mm | 0.096 in | 0.25 " | 0.07 " | 6.35 mm | 1.77 mm | 0.44 " | 11.18 mm | 33 VAC/DC 70 VDC | Polycarbonate (PC) | Brass | Brass | Threaded and Turret | Tin | 8-32 | White | 15 A | Standard |

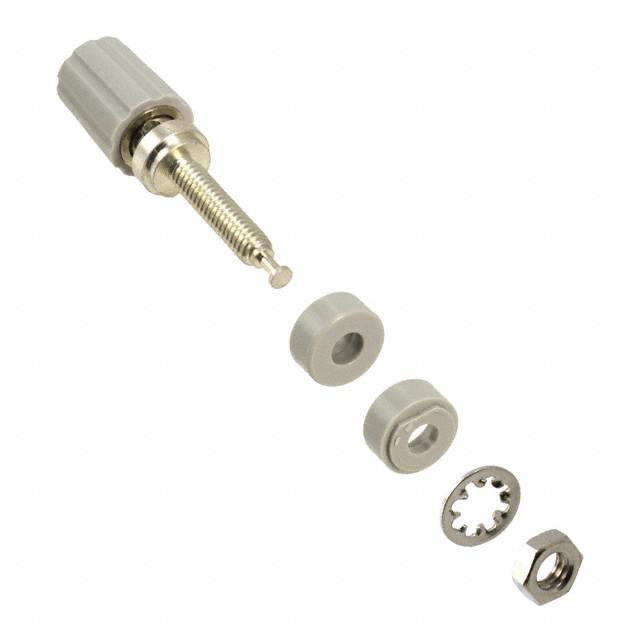

 Pomona Electronics | Nickel | 2.43 mm | 0.096 in | 0.25 " | 0.07 " | 6.35 mm | 1.77 mm | 0.44 " | 11.18 mm | 33 VAC/DC 70 VDC | Polycarbonate (PC) | Brass | Brass | Threaded and Turret | Tin | 8-32 | Gray | 15 A | Standard |

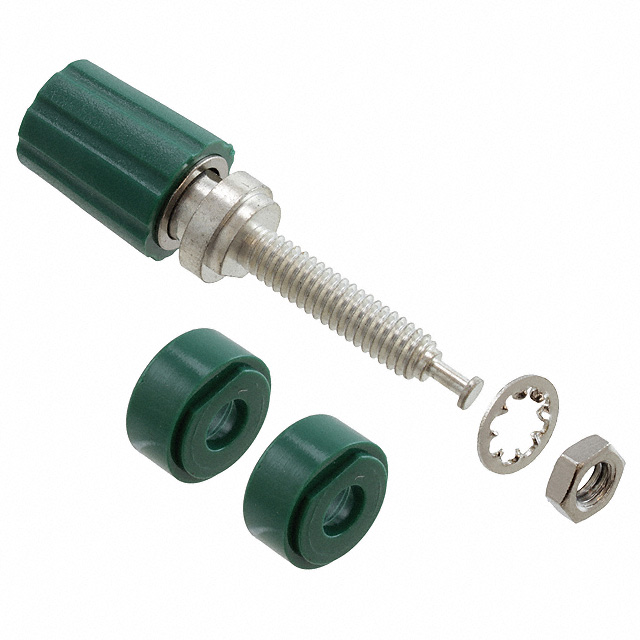

 Pomona Electronics | Nickel | 2.43 mm | 0.096 in | 0.25 " | 0.07 " | 6.35 mm | 1.77 mm | 0.44 " | 11.18 mm | 33 VAC/DC 70 VDC | Polycarbonate (PC) | Brass | Brass | Threaded and Turret | Tin | 8-32 | Green | 15 A | Standard |
