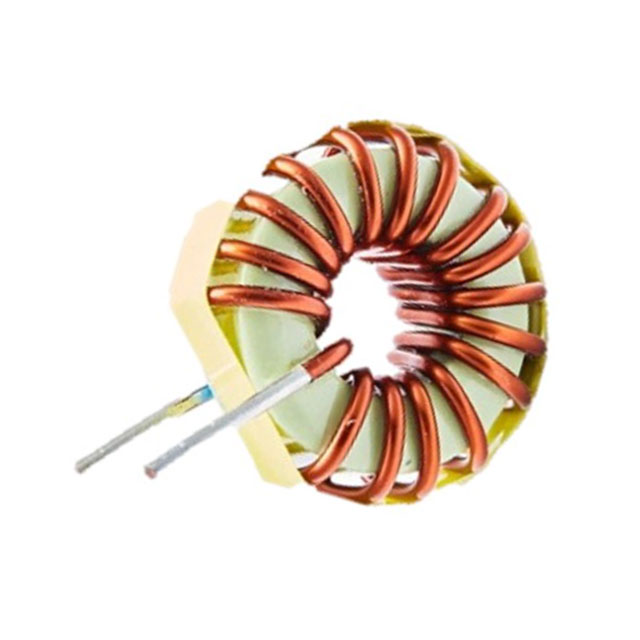

HCTI Series

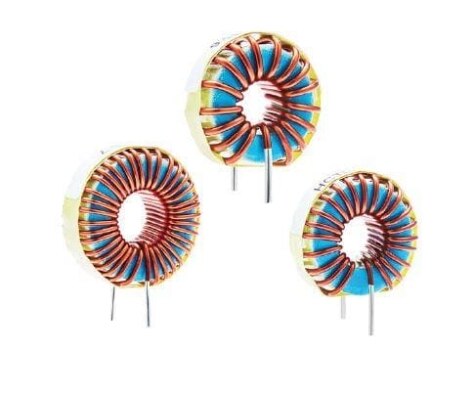

Power Inductors - Leaded HIGH CURR TOROIDAL INDUCTOR 12 UH
Manufacturer: Signal Transformer
Catalog
Power Inductors - Leaded HIGH CURR TOROIDAL INDUCTOR 12 UH
Beta
⌘K
Power Inductors - Leaded HIGH CURR TOROIDAL INDUCTOR 12 UH
Power Inductors - Leaded HIGH CURR TOROIDAL INDUCTOR 12 UH
Power Inductors - Leaded HIGH CURR TOROIDAL INDUCTOR 12 UH
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Type | Mounting Type | Package / Case | DC Resistance (DCR) [Max] | Inductance Frequency - Test | Tolerance | Shielding | Size / Dimension [diameter] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [diameter] | Current Rating (Amps) | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Signal Transformer | -55 C | 105 ░C | Toroidal | Through Hole | Radial Vertical (Open) | 5 mOhm | 1 kHz | 15 % | Shielded | 32.51 mm | 16.51 mm | 0.65 W | 1.28 Dia | 19.1 A | 12 µH |
 Signal Transformer | -55 C | 105 ░C | Toroidal | Through Hole | Radial Vertical (Open) | 13 mOhm | 1 kHz | 15 % | Shielded | 32.51 mm | 16.51 mm | 0.65 W | 1.28 Dia | 11.7 A | 33 µH |
Signal Transformer | -55 C | 105 ░C | Toroidal | Through Hole | Radial Vertical (Open) | 140 mOhm | 1 kHz | 15 % | Shielded | 32.51 mm | 16.51 mm | 0.65 W | 1.28 Dia | 3.6 A | 560 µH |
