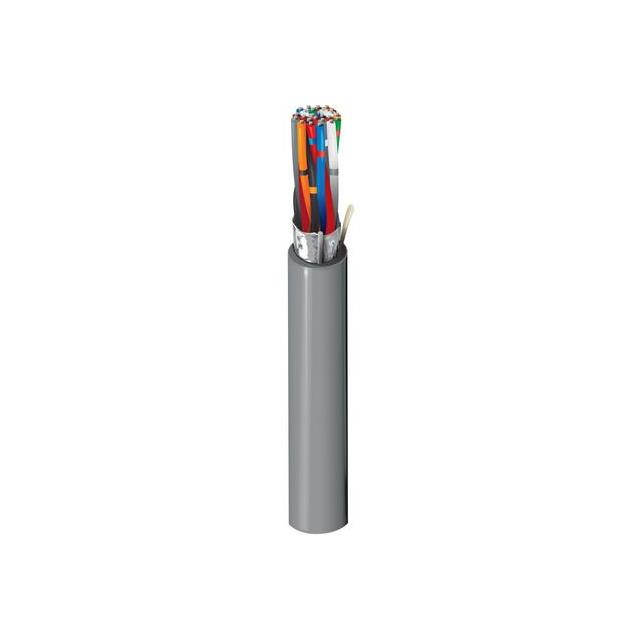

1424A Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 25COND 24AWG
| Part | Shield Material | Shield Coverage | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Conductor Material | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Ratings | Wire Gauge | Features | Number of Conductors | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Multi-Pair | 80 °C | -20 ░C | Foam Polyethylene (FPE) | Copper Tinned | 152.4 m | 500 ft | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | 0.035 in | 0.889 mm | Computer | 10.62 mm | 0.418 in | Chrome | UL Style 2919 | 24 AWG | Drain Wire | 25 | Foil |
Belden Inc. | Aluminum | 100 % | Multi-Pair | 80 °C | -20 ░C | Foam Polyethylene (FPE) | Copper Tinned | 304.8 m | 1000 ft | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | 0.035 in | 0.889 mm | Computer | 10.62 mm | 0.418 in | Chrome | UL Style 2919 | 24 AWG | Drain Wire | 25 | Foil |
