396-020 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 20POS 0.125
| Part | Material - Insulation | Termination Rows [custom] | Termination | Pitch | Pitch | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Color | Number of Rows [custom] | Number of Positions | Card Type | Contact Type | Flange Feature | Number of Positions/Bay/Row | Card Thickness [Max] | Card Thickness [Min] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Gender | Mounting Type | Termination Rows | Number of Rows | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | Solder Wire Wrap | 3.18 mm | 0.125 in | Copper Alloy | -40 C | 105 ░C | Dual | Black | 2 | 20 | Non Specified - Dual Edge | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 10 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | Female | Right Angle Through Hole | |||||
 EDAC Inc. | Polyester Thermoplastic | Solder Wire Wrap | 3.18 mm | 0.125 in | Copper Alloy | -40 C | 105 ░C | Single | Black | 20 | Non Specified - Single Edge | Cantilever | 4-40 Threaded Insert Top Mount Opening | 20 Bay/Row | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | Female | Right Angle Through Hole | 1 | 1 | |||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Solder | 3.18 mm | 0.125 in | Copper Alloy | -40 C | 105 ░C | Dual | Black | 2 | 20 | Non Specified - Dual Edge | Cantilever | 4-40 Threaded Insert Top Mount Opening | 10 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | Female | Through Hole | |||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Wire Wrap | 3.18 mm | 0.125 in | Copper Alloy | -40 C | 105 ░C | Dual | Black | 2 | 20 | Non Specified - Dual Edge | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 10 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | Female | Through Hole | |||||

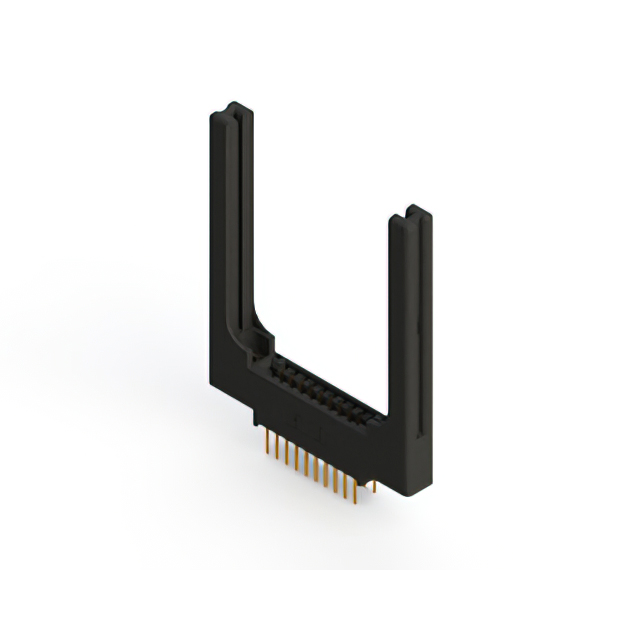

 EDAC Inc. | Polyester Thermoplastic | 2 | Solder | 3.18 mm | 0.125 in | Copper Alloy | -40 C | 105 ░C | Dual | Black | 2 | 20 | Non Specified - Dual Edge | Cantilever | 4-40 Threaded Insert Top Mount Opening | 10 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | Female | Board Edge Straddle Mount | Card Extender Card Guides | ||||
 EDAC Inc. | Polyester Thermoplastic | Solder Wire Wrap | 3.18 mm | 0.125 in | Copper Alloy | -40 C | 105 ░C | Single | Black | 20 | Non Specified - Single Edge | Cantilever | 4-40 Threaded Insert Top Mount Opening | 20 Bay/Row | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | Female | Right Angle Through Hole | 1 | 1 | |||||

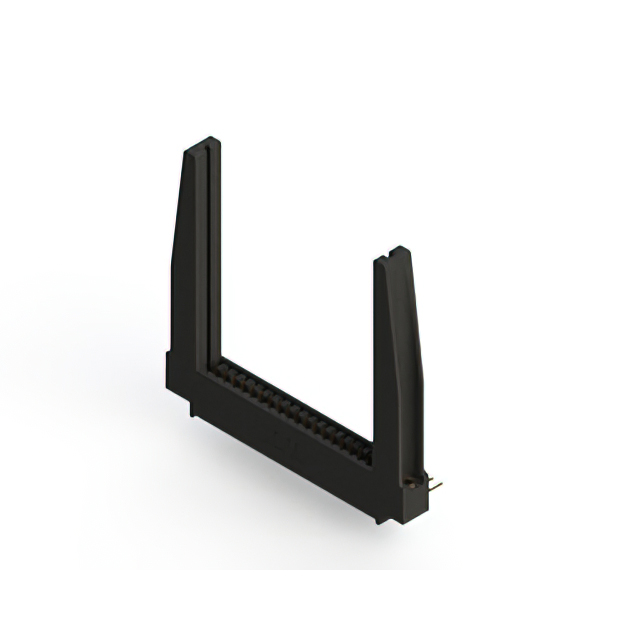

 EDAC Inc. | Polyester Thermoplastic | 2 | Solder Eyelet(s) | 3.18 mm | 0.125 in | Copper Alloy | -40 C | 105 ░C | Dual | Black | 2 | 20 | Non Specified - Dual Edge | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 10 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | Female | Board Edge Straddle Mount | Card Extender Card Guides | ||||
 EDAC Inc. | Polyester Thermoplastic | Solder Wire Wrap | 3.18 mm | 0.125 in | Copper Alloy | -40 C | 105 ░C | Single | Black | 20 | Non Specified - Single Edge | Cantilever | Flush Mount M3 Threaded Insert Top Opening | 20 Bay/Row | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | Female | Right Angle Through Hole | 1 | 1 | |||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Solder Wire Wrap | 3.18 mm | 0.125 in | Copper Alloy | -40 C | 105 ░C | Dual | Black | 2 | 20 | Non Specified - Dual Edge | Cantilever | 10 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | Female | Right Angle Through Hole | 3.25 mm | 0.128 " | ||||
 EDAC Inc. | Polyester Thermoplastic | Solder | 3.18 mm | 0.125 in | Copper Alloy | -40 C | 105 ░C | Single | Black | 20 | Non Specified - Single Edge | Cantilever | M3 Threaded Insert Top Mount Opening | 20 Bay/Row | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | Female | Through Hole | 1 | 1 |
