9GV1248 Series

Catalog

FAN AXIAL 120X25.4MM 48VDC WIRE

Part	Lifetime @ Temp.	Material - Frame	Material - Blade	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Approval Agency	Width [y]	RPM	Static Pressure	Static Pressure	Air Flow	Air Flow	Noise	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Power (Watts)	Termination	Voltage - Rated	Size / Dimension [z]	Size / Dimension [x]	Bearing Type	Features	Size / Dimension	Size / Dimension [y]	Weight [custom]	Weight [custom]
Sanyo Denki America Inc. 9GV1248G4011	40000 Hrs	Plastic	Plastic	0.42 A	40.8 VDC	60 V	CSA TUV UL	25.4 mm	5100 RPM	0.9 in H2O	224.2 Pa	171 CFM	4.79 m³/min	58 dB(A)	-20 ░C	70 °C	Tubeaxial	20.16 W	3 Wire Leads	48 VDC	120 mm	120 mm	Ball	Locked Rotor Protection Speed Sensor (Tach)

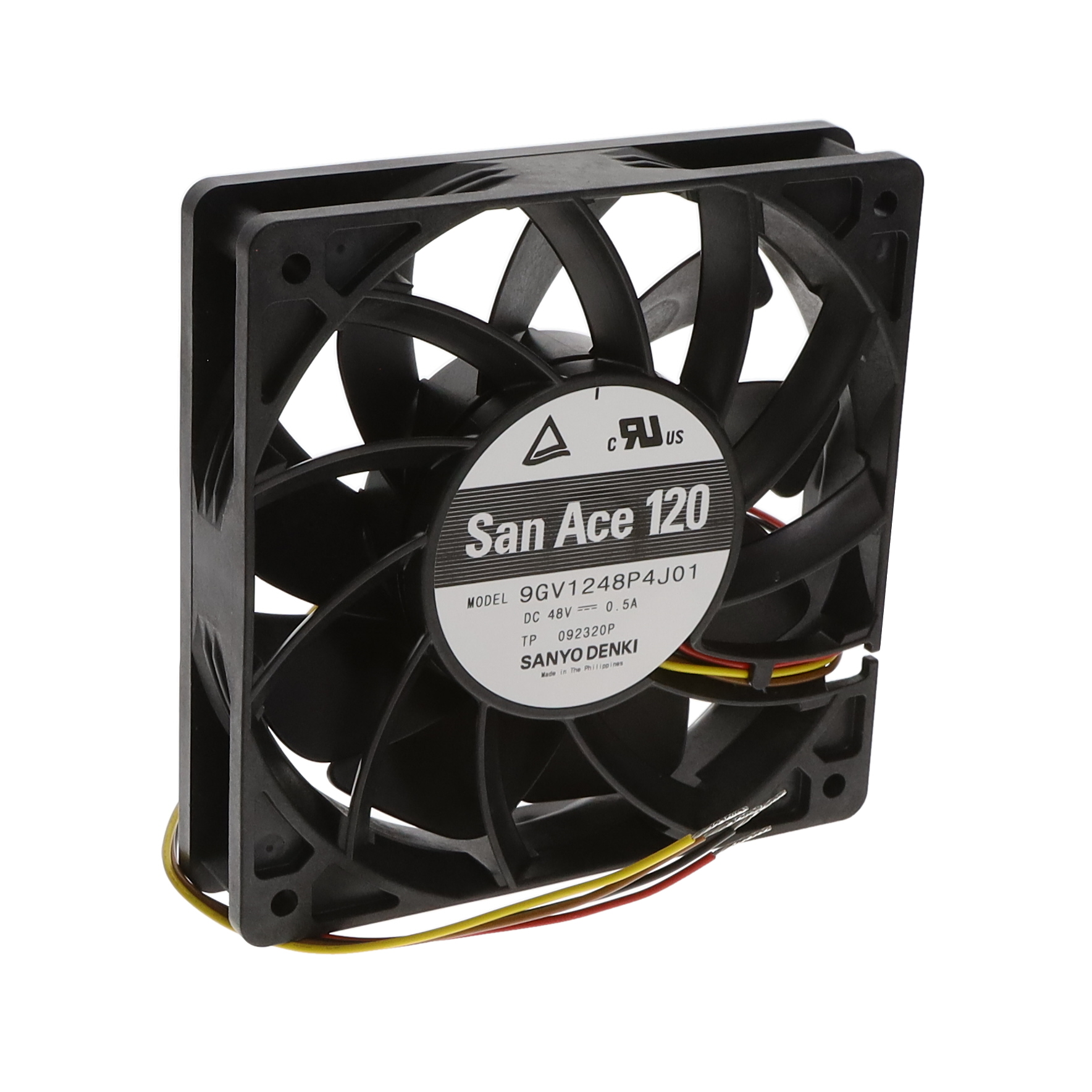

Sanyo Denki America Inc. 9GV1248P4J01	40000 Hrs	Plastic	Plastic	0.5 A	40.8 VDC	55.2 VDC	CSA TUV UL	25.4 mm	5400 RPM	1.015 in H2O	252.8 Pa	180 CFM	5.04 mł/min	59 dB(A)	-20 ░C	70 °C	Tubeaxial	24 W	4 Wire Leads	48 VDC		119 mm	Ball	PWM Control Speed Sensor (Tach)	Square	119 mm
Sanyo Denki America Inc. 9GV1248P1J01	40000 Hrs	Plastic	Plastic	75 mA	40.8 VDC	55.2 VDC	CSA TUV UL	38 mm	6400 RPM	1.45 in H2O	361.2 Pa	224 CFM	6.27 mł/min	64 dB(A)	-20 ░C	70 °C	Tubeaxial	36 W	4 Wire Leads	48 VDC	120 mm	120 mm	Ball	PWM Control Speed Sensor (Tach)			0.794 lb	360.15 g
Sanyo Denki America Inc. 9GV1248P4H01	40000 Hrs	Plastic	Plastic	0.33 A	40.8 VDC	60 V	CSA TUV UL	25.4 mm	4600 RPM	0.73 in H2O	181.8 Pa	154 CFM	4.31 m³/min	55 dB(A)	-20 ░C	70 °C	Tubeaxial	15.84 W	4 Wire Leads	48 VDC	120 mm	120 mm	Ball	Locked Rotor Protection PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9GV1248P4J011	40000 Hrs	Plastic	Plastic	0.5 A	40.8 VDC	55.2 VDC	CSA TUV UL	25.4 mm	5400 RPM	1.015 in H2O	252.8 Pa	180 CFM	5.04 mł/min	59 dB(A)	-20 ░C	70 °C	Tubeaxial	24 W	4 Wire Leads	48 VDC		119 mm	Ball	PWM Control Speed Sensor (Tach)	Square	119 mm
Sanyo Denki America Inc. 9GV1248P4G01	40000 Hrs	Plastic	Plastic	0.42 A	40.8 VDC	60 V	CSA TUV UL	25.4 mm	5100 RPM	0.09 in H2O	22.4 Pa	170.9 CFM	4.79 m³/min	58 dB(A)	-20 ░C	70 °C	Tubeaxial	20.16 W	4 Wire Leads	48 VDC	120 mm	120 mm	Ball	Locked Rotor Protection PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9GV1248J101							CSA TUV UL	38 mm									Tubeaxial	36 W	3 Wire Leads	48 VDC	120 mm	120 mm	Ball	Speed Sensor (Tach)			0.794 lb	360.15 g
Sanyo Denki America Inc. 9GV1248J102	40000 Hrs	Plastic	Plastic	750 mA	40.8 VDC	55.2 VDC	CSA TUV UL	38 mm	6400 RPM	1.45 in H2O	361.2 Pa	224 CFM	6.27 mł/min	64 dB(A)	-20 ░C	70 °C	Tubeaxial	36 W	2 Wire Leads	48 VDC	120 mm	120 mm	Ball				0.794 lb	360.15 g
Sanyo Denki America Inc. 9GV1248G402	40000 Hrs	Plastic	Plastic	0.42 A	40.8 VDC	60 V	CSA TUV UL	25.4 mm	5100 RPM	0.9 in H2O	224.2 Pa	171 CFM	4.79 m³/min	58 dB(A)	-20 ░C	70 °C	Tubeaxial	20.16 W	2 Wire Leads	48 VDC	120 mm	120 mm	Ball
Sanyo Denki America Inc. 9GV1248P4G011	40000 Hrs	Plastic	Plastic	0.42 A	40.8 VDC	60 V	CSA TUV UL	25.4 mm	5100 RPM	0.9 in H2O	224.2 Pa	171 CFM	4.79 m³/min	58 dB(A)	-20 ░C	70 °C	Tubeaxial	20.16 W	4 Wire Leads	48 VDC	120 mm	120 mm	Ball	Locked Rotor Protection PWM Control Speed Sensor (Tach)
