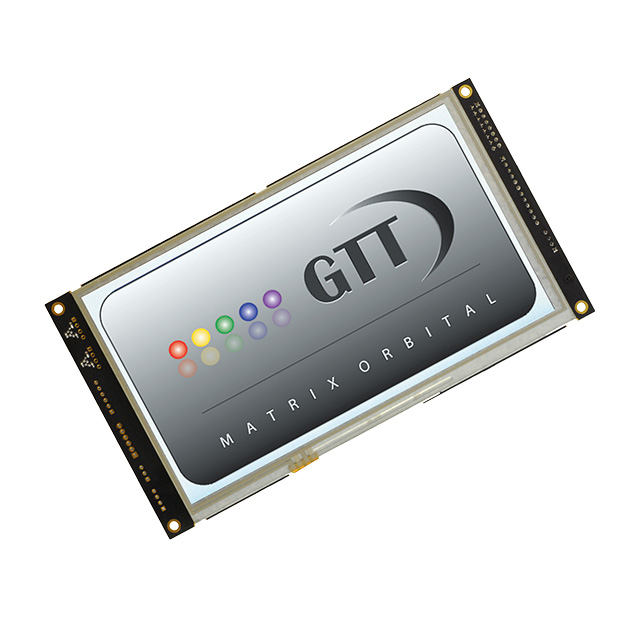

GTT70A Series

Catalog

LCD TOUCH TFT DISPLAY

Part	Dot Pitch [x]	Dot Pitch [y]	Graphics Color	Viewing Area [y]	Viewing Area [z]	Diagonal Screen Size	Diagonal Screen Size	Display Mode	Touchscreen	Display Type	Interface	Dot Pixels [x]	Dot Pixels [y]	Backlight	Viewing Area [x]
Matrix Orbital GTT70A-TPC-BLM-B0-H1-CT-V5	0.19 mm	0.18 mm	Blue Green Red	155.08 mm	86.92 mm	7 "	177.8 mm	Transmissive	Capacitive	TFT - Color	TTL	800 pixels	480
Matrix Orbital GTT70A-TPR-BLM-B0-H1-CT-V5	0.19 mm	0.18 mm	Blue Green Red	89.1 mm		7 "	177.8 mm	Transmissive	Resistive	TFT - Color	TTL	800 pixels	480 pixels	LED - White	156.7 mm
Matrix Orbital GTT70A-TPR-BLM-B0-H1-C4-VPT	0.19 mm	0.18 mm	Blue Green Red	89.1 mm		7 "	177.8 mm	Transmissive	Resistive	TFT - Color		800 pixels	480		156.7 mm
Matrix Orbital GTT70A-TPR-BLM-B0-H1-CS-VPT	0.19 mm	0.18 mm	Blue Green Red	89.1 mm		7 "	177.8 mm	Transmissive	Resistive	TFT - Color	RS-232	800 pixels	480		156.7 mm
Matrix Orbital GTT70A-TPC-BLM-B0-H1-CS-V5	0.19 mm	0.18 mm	Blue Green Red	155.08 mm	86.92 mm	7 "	177.8 mm	Transmissive	Capacitive	TFT - Color	RS-232	800 pixels	480
Matrix Orbital GTT70A-TPC-BLM-B0-H1-C4-V5	0.19 mm	0.18 mm	Blue Green Red	155.08 mm	86.92 mm	7 "	177.8 mm	Transmissive	Capacitive	TFT - Color		800 pixels	480
Matrix Orbital GTT70A-TPC-BLM-B0-H1-C4-VPT	0.19 mm	0.18 mm	Blue Green Red	155.08 mm	86.92 mm	7 "	177.8 mm	Transmissive	Capacitive	TFT - Color		800 pixels	480
Matrix Orbital GTT70A-TPC-BLM-B0-H1-CT-VPT	0.19 mm	0.18 mm	Blue Green Red	155.08 mm	86.92 mm	7 "	177.8 mm	Transmissive	Capacitive	TFT - Color	TTL	800 pixels	480
Matrix Orbital GTT70A-TPC-BLM-B0-H1-CU-VPT	0.19 mm	0.18 mm	Blue Green Red	155.08 mm	86.92 mm	7 "	177.8 mm	Transmissive	Capacitive	TFT - Color	USB	800 pixels	480
Matrix Orbital GTT70A-TPR-BLM-B0-H1-C4-V5	0.19 mm	0.18 mm	Blue Green Red	89.1 mm		7 "	177.8 mm	Transmissive	Resistive	TFT - Color		800 pixels	480		156.7 mm
