60Fx Series Series

Manufacturer: Renesas Electronics Corporation

Catalog

IGBT TRENCH 600V 60A TO-247A

Part	Td (on/off) @ 25°C [custom]	Td (on/off) @ 25°C [custom]	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	Operating Temperature	Test Condition	Vce(on) (Max) @ Vge, Ic	Power - Max [Max]	IGBT Type	Current - Collector (Ic) (Max) [Max]	Mounting Type	Reverse Recovery Time (trr)	Package / Case	Td (on/off) @ 25°C	Gate Charge	Td (on/off) @ 25°C	Vce(on) (Max) @ Vge, Ic [Max]
Renesas Electronics Corporation RJH60F4DPQ-A0#T0	45 ns	85 ns	600 V	TO-247A	150 °C	5 Ohm 15 V 30 A 400 V	1.82 V	235.8 W	Trench	60 A	Through Hole	90 ns	TO-247-3
Renesas Electronics Corporation RJH60F6DPQ-A0#T0			600 V	TO-247A	150 °C	5 Ohm 15 V 30 A 400 V	1.75 V	297.6 W	Trench	85 A	Through Hole	90 ns	TO-247-3	58 ns 131 ns
Renesas Electronics Corporation RJH60F3DPQ-A0#T0	44 ns	65 ns	600 V	TO-247A	150 °C	5 Ohm 15 V 30 A 400 V	1.82 V	178.5 W	Trench	40 A	Through Hole	90 ns	TO-247-3
Renesas Electronics Corporation RJH60F4DPK-00#T0	45 ns	85 ns	600 V	TO-3P	150 °C	5 Ohm 15 V 30 A 400 V	1.82 V	235.8 W	Trench	60 A	Through Hole	140 ns	SC-65-3 TO-3P-3
Renesas Electronics Corporation RJP60F0DPM-00#T1			600 V	TO-3PFM	150 °C	5 Ohm 15 V 30 A 400 V	1.82 V	40 W	Trench	50 A	Through Hole		TO-220-3 Full Pack	46 ns 70 ns
Renesas Electronics Corporation RJH60F6DPK-00#T0			600 V	TO-3P	150 °C	5 Ohm 15 V 30 A 400 V	1.75 V	297.6 W	Trench	85 A	Through Hole	140 ns	SC-65-3 TO-3P-3	58 ns 131 ns
Renesas Electronics Corporation RJP60F5DPM-00#T1	53 ns	90 ns	600 V	TO-3PFM	150 °C	5 Ohm 15 V 30 A 400 V	1.8 V	45 W	Trench	80 A	Through Hole		TO-220-3 Full Pack		74 nC
Renesas Electronics Corporation RJH60F7ADPK-00#T0			600 V	TO-3P	150 °C	5 Ohm 15 V 30 A 400 V		328.9 W	Trench	90 A	Through Hole	140 ns	SC-65-3 TO-3P-3			63 ns 142 ns	1.75 V
Renesas Electronics Corporation RJH60F5BDPQ-A0#T0	53 ns	95 ns	600 V	TO-247A	150 °C	5 Ohm 15 V 30 A 400 V	1.8 V	260.4 W	Trench	80 A	Through Hole	25 ns	TO-247-3

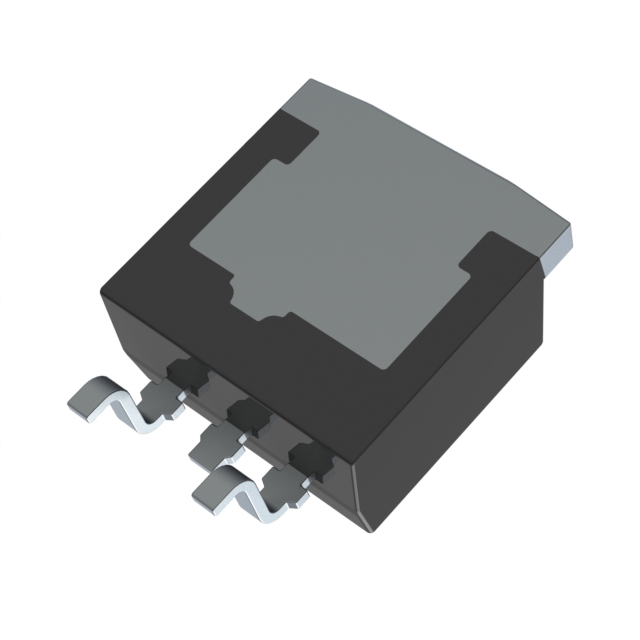

Renesas Electronics Corporation RJP60F0DPE-00#J3			600 V		150 °C	5 Ohm 15 V 30 A 400 V	1.82 V	122 W	Trench	50 A	Surface Mount		SC-83	46 ns 70 ns
