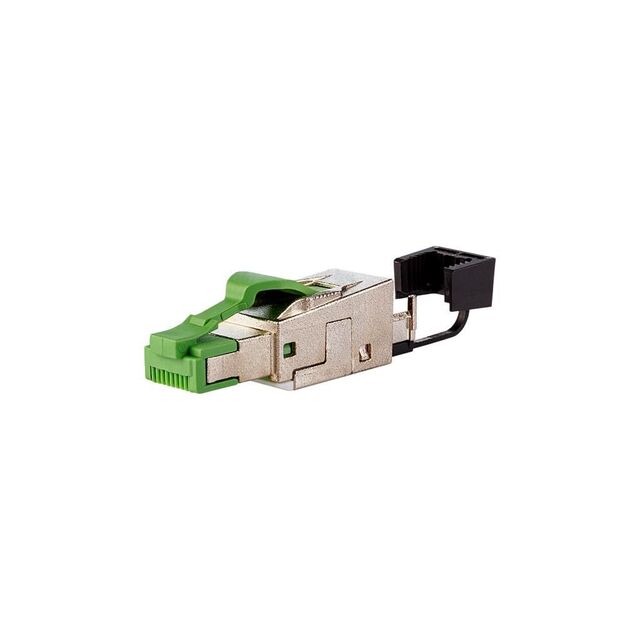

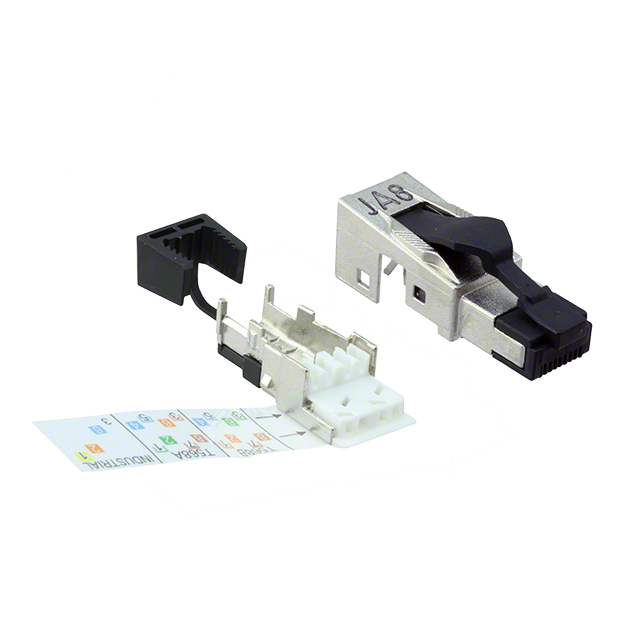

CAT 6A RJ45 FIELD PLUG PRO
| Part | Current Rating | Contact Finish | Voltage Rating | Contact Material | Housing Material | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Color | Features | Length | Shielding | Connector Type | Termination | Number of Positions | Number of Contacts | Ingress Protection | Ratings | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | 1 A | Gold | 50 V | Tin Bronze | Zinc Die Cast | 22 AWG | 27 AWG | Black | Housing Locking Hook Strain Relief | 1.96 in | Shielded | Ethernet Plug RJ45 | IDC | 8 | 8 | IP20 | Cat6a | Round Cable Solid or Stranded Wires |
 METZ CONNECT USA Inc. | 1 A | Gold | 50 V | Tin Bronze | Zinc Die Cast | 22 AWG | 27 AWG | Green | Housing Locking Hook Strain Relief | 1.961 in | Shielded | Ethernet Plug RJ45 | IDC | 8 | 4 | IP20 | Cat5 | Round Cable Solid or Stranded Wires |
