090198 Series

Manufacturer: Molex

Catalog

CONN TERM WTB 22-26AWG TIN

Part	Terminal Type	Contact Finish	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Hole Diameter [Min]	Hole Diameter [Max]	Hole Diameter [Min]	Hole Diameter [Max]	Length - Overall	Length - Overall [x]	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]
Molex 0901980002	Through Board	Tin	0.06 in	1.52 mm	1.17 mm	1.3 mm	0.046 in	0.051 in	6.24 mm	0.246 in	Phosphor Bronze	22 AWG	26 AWG

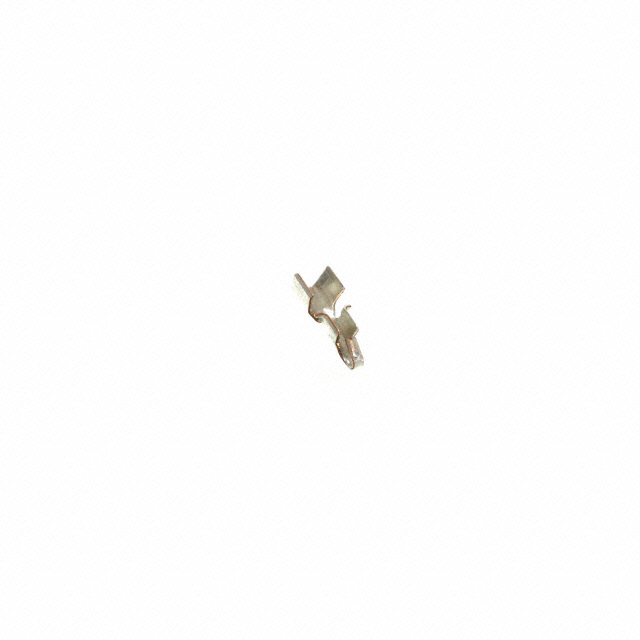

Molex 0901980001	Through Board	Tin	0.06 in	1.52 mm	1.17 mm	1.3 mm	0.046 in	0.051 in	6.24 mm	0.246 in	Phosphor Bronze	22 AWG	26 AWG
