MS1751 Series

Catalog

FAN AXIAL 171X51.5MM 12VDC WIRE

Part	Material - Blade	Material - Frame	Current Rating (Amps)	Ingress Protection	Voltage - Rated	Termination	RPM	Bearing Type	Static Pressure	Static Pressure	Air Flow	Air Flow	Fan Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension	Width [x]	Features	Noise	Weight [custom]	Weight [custom]
Mechatronics Fan Group MS1751L12B-FHR-2EM	Plastic	Aluminum	1.22 A	IP68 - Dust Tight Waterproof	12 VDC	2 Wire Leads	3000 RPM	Ball	156.9 Pa	0.63 in H2O	5.16 m³/min	184.4 CFM	Tubeaxial	171 mm	153 mm	Rectangular/Rounded	51.5 mm	Auto Restart	53 dB	0.67 kg	1.5 lbs
Mechatronics Fan Group MS1751M12B-FHR-2EM	Plastic	Aluminum	3.75 A	IP68 - Dust Tight Waterproof	12 VDC	2 Wire Leads	4500 RPM	Ball	249.1 Pa	1 in H2O	9.86 m³/min	352.1 CFM	Tubeaxial	171 mm	153 mm	Rectangular/Rounded	51.5 mm	Auto Restart		0.67 kg	1.5 lbs
Mechatronics Fan Group MS1751H12B1+6-FHR	Plastic	Aluminum	6.3 A		12 VDC	4 Wire Leads	5500 RPM	Ball	408.5 Pa	1.64 in H2O	11.7 m³/min	418 CFM	Tubeaxial	171 mm	153 mm	Rectangular/Rounded	51.5 mm	Auto Restart PWM Control Speed Sensor (Tach)	71 dB(A)	0.67 kg	1.5 lbs

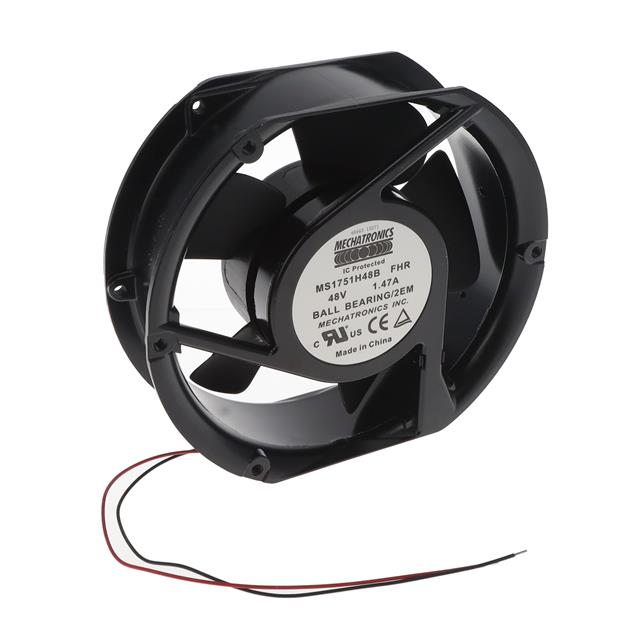

Mechatronics Fan Group MS1751H48B-FHR-2EM	Plastic	Aluminum	1.56 A	IP68 - Dust Tight Waterproof	48 VDC	2 Wire Leads	5500 RPM	Ball	408.5 Pa	1.64 in H2O	11.7 m³/min	418 CFM	Tubeaxial	171 mm	153 mm	Rectangular/Rounded	51.5 mm	Auto Restart	71 dB(A)	0.67 kg	1.5 lbs
Mechatronics Fan Group MS1751M24B1+6-FHR	Plastic	Aluminum	1.85 A		24 VDC	4 Wire Leads	4500 RPM	Ball	249.1 Pa	1 in H2O	9.86 m³/min	352.1 CFM	Tubeaxial	171 mm	153 mm	Rectangular/Rounded	51.5 mm	Auto Restart PWM Control Speed Sensor (Tach)		0.67 kg	1.5 lbs
Mechatronics Fan Group MS1751L48B1+6-FHR	Plastic	Aluminum	0.28 A		48 VDC	4 Wire Leads	3000 RPM	Ball	156.9 Pa	0.63 in H2O	5.16 m³/min	184.4 CFM	Tubeaxial	171 mm	153 mm	Rectangular/Rounded	51.5 mm	Auto Restart PWM Control Speed Sensor (Tach)	53 dB	0.67 kg	1.5 lbs
Mechatronics Fan Group MS1751L24B-FHR-2EM	Plastic	Aluminum	0.52 A	IP68 - Dust Tight Waterproof	24 VDC	2 Wire Leads	3000 RPM	Ball	156.9 Pa	0.63 in H2O	5.16 m³/min	184.4 CFM	Tubeaxial	171 mm	153 mm	Rectangular/Rounded	51.5 mm	Auto Restart	53 dB	0.67 kg	1.5 lbs

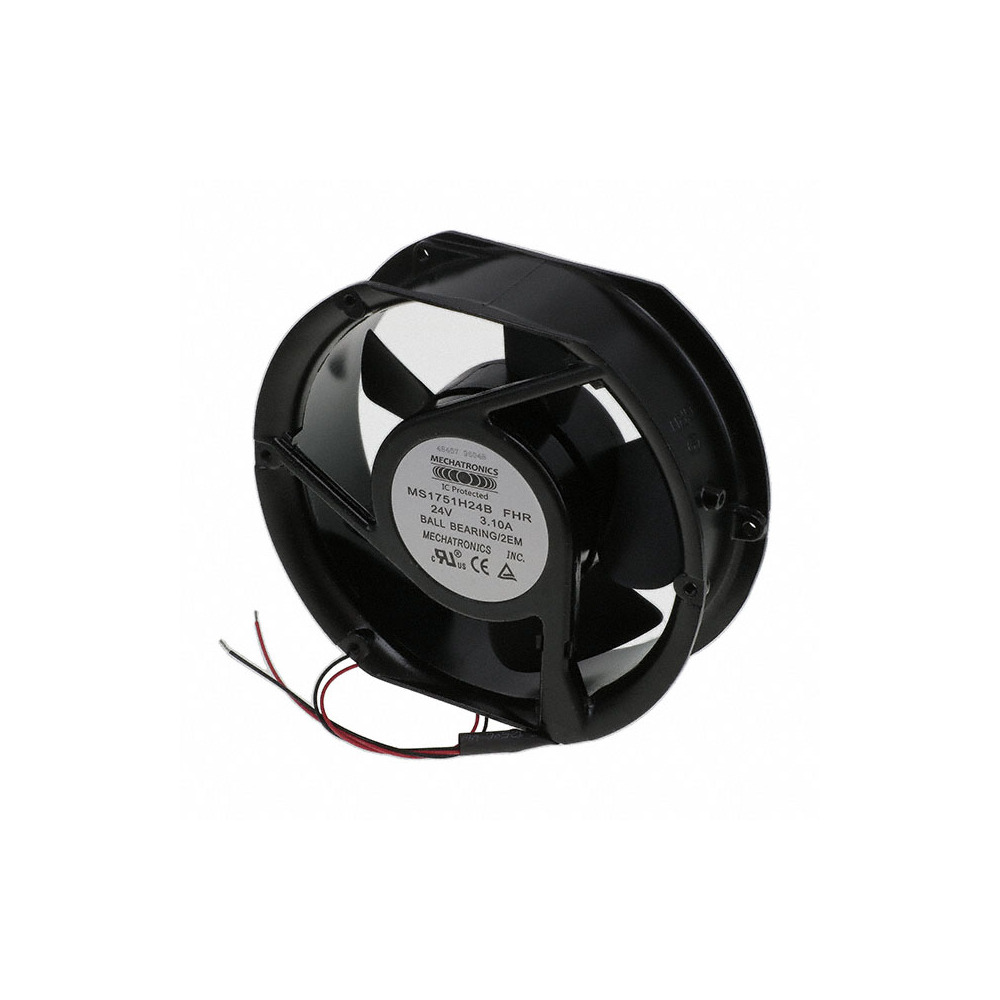

Mechatronics Fan Group MS1751H24B1+6-FHR-2EM	Plastic	Aluminum	3.1 A	IP68 - Dust Tight Waterproof	24 VDC	4 Wire Leads	5500 RPM	Ball	408.5 Pa	1.64 in H2O	11.7 m³/min	418 CFM	Tubeaxial	171 mm	153 mm	Rectangular/Rounded	51.5 mm	Auto Restart PWM Control Speed Sensor (Tach)	71 dB(A)	0.67 kg	1.5 lbs
Mechatronics Fan Group MS1751L24B1+6-FHR-2EM	Plastic	Aluminum	0.52 A	IP68 - Dust Tight Waterproof	24 VDC	4 Wire Leads	3000 RPM	Ball	156.9 Pa	0.63 in H2O	5.16 m³/min	184.4 CFM	Tubeaxial	171 mm	153 mm	Rectangular/Rounded	51.5 mm	Auto Restart PWM Control Speed Sensor (Tach)	53 dB	0.67 kg	1.5 lbs
Mechatronics Fan Group MS1751M12B1+6-FHR	Plastic	Aluminum	3.75 A		12 VDC	4 Wire Leads	4500 RPM	Ball	249.1 Pa	1 in H2O	9.86 m³/min	352.1 CFM	Tubeaxial	171 mm	153 mm	Rectangular/Rounded	51.5 mm	Auto Restart PWM Control Speed Sensor (Tach)		0.67 kg	1.5 lbs
