8835-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN
| Part | Terminal Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Mounting Type | Termination | Terminal Style | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Material | Length - Above Flange [x] | Length - Above Flange [x] | Insulation | Length - Overall [x] | Length - Overall [x] | Flange Diameter [diameter] | Flange Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

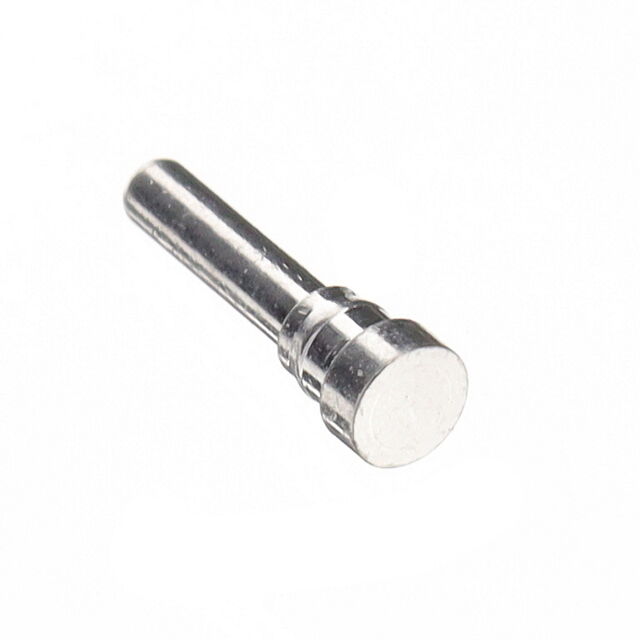

 Mill-Max Manufacturing Corp. | PC Pin | Tin | 200 Áin | 5.08 Ám | 0.04 in | 1.02 mm | Through Hole | Press-Fit | Single End | 1.45 mm | 0.057 in | Brass Alloy | 0.212 in | 5.39 mm | Non-Insulated | 6.15 mm | 0.242 in | 0.072 " | 1.83 mm |

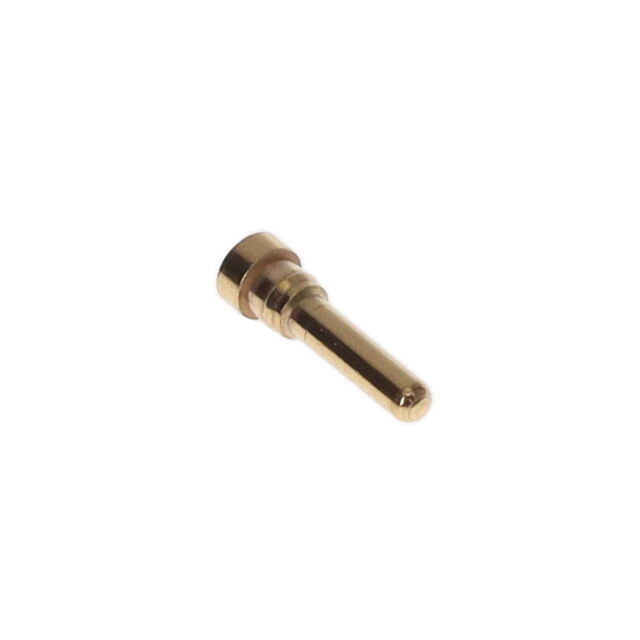

 Mill-Max Manufacturing Corp. | PC Pin | Gold | 10 Áin | 0.25 Ám | 0.04 in | 1.02 mm | Through Hole | Press-Fit | Single End | 1.45 mm | 0.057 in | Brass Alloy | 0.212 in | 5.39 mm | Non-Insulated | 6.15 mm | 0.242 in | 0.072 " | 1.83 mm |
 Mill-Max Manufacturing Corp. | PC Pin | Gold | 50 µin | 1.27 µm | 0.04 in | 1.02 mm | Through Hole | Press-Fit | Single End | 1.45 mm | 0.057 in | Brass Alloy | 0.212 in | 5.39 mm | Non-Insulated | 6.15 mm | 0.242 in | 0.072 " | 1.83 mm |
