VGS-35C Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 5V 35W

Part	Efficiency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Isolation	Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Approval Agency	Power (Watts)	Standard Number	Mounting Type	Voltage - Output 1	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Features	Current - Output 1
CUI Inc. VGS-35C-5	83 %	3.23 in	3.9 "	30 mm	99 mm	82 mm	1.18 in	4000 V	Enclosed	-30 °C	70 °C	1	CE cURus	35 W	60335-1 62368-1	Chassis Mount	5 V	264 VAC 373 VDC	85 VAC 120 VDC	Household Appliances ITE (Commercial)	Adjustable Output Universal Input	7 A

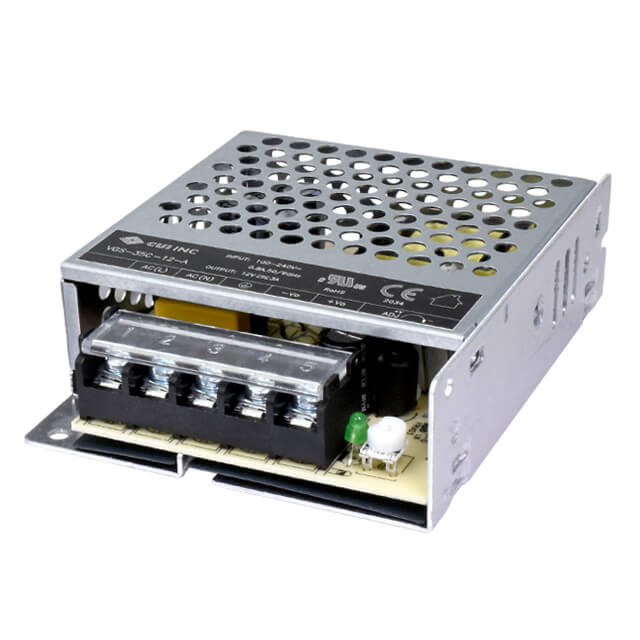

CUI Inc. VGS-35C-12-A	87 %	3.23 in	3.9 "	30 mm	99 mm	82 mm	1.18 in	4000 V	Enclosed	-30 °C	70 °C	1	CE cURus	36 W	60335-1 62368-1	Chassis Mount	12 V	264 VAC 373 VDC	85 VAC 120 VDC	Household Appliances ITE (Commercial)	Adjustable Output Universal Input	3 A
CUI Inc. VGS-35C-5-A	83 %	3.23 in	3.9 "	30 mm	99 mm	82 mm	1.18 in	4000 V	Enclosed	-30 °C	70 °C	1	CE cURus	35 W	60335-1 62368-1	Chassis Mount	5 V	264 VAC 373 VDC	85 VAC 120 VDC	Household Appliances ITE (Commercial)	Adjustable Output Universal Input	7 A
CUI Inc. VGS-35C-12-B	87 %	3.23 in	3.9 "	30 mm	99 mm	82 mm	1.18 in	4000 V	Conformal Coated Enclosed	-30 °C	70 °C	1	CE cURus	36 W	60335-1 62368-1	Chassis Mount	12 V	264 VAC 373 VDC	85 VAC 120 VDC	Household Appliances ITE (Commercial)	Adjustable Output Universal Input	3 A
CUI Inc. VGS-35C-15-A	89 %	3.23 in	3.9 "	30 mm	99 mm	82 mm	1.18 in	4000 V	Enclosed	-30 °C	70 °C	1	CE cURus	36 W	60335-1 62368-1	Chassis Mount	15 V	264 VAC 373 VDC	85 VAC 120 VDC	Household Appliances ITE (Commercial)	Adjustable Output Universal Input	2.4 A
CUI Inc. VGS-35C-24	88 %	3.23 in	3.9 "	30 mm	99 mm	82 mm	1.18 in	4000 V	Enclosed	-30 °C	70 °C	1	CE cURus	36 W	60335-1 62368-1	Chassis Mount	24 V	264 VAC 373 VDC	85 VAC 120 VDC	Household Appliances ITE (Commercial)	Adjustable Output Universal Input	1.5 A
