AWH 20G Series

Catalog

CONN HEADER VERT 20POS 2.54MM

Part	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Type	Shrouding	Contact Finish - Mating	Contact Material	Fastening Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Style	Material Flammability Rating	Contact Shape	Insulation Height	Insulation Height	Current Rating (Amps)	Number of Positions Loaded	Connector Type	Number of Rows [custom]	Number of Positions	Termination	Features	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Contact Length - Post	Contact Length - Post	Row Spacing	Row Spacing	Pitch	Pitch	Cable Termination	Contact Finish	Color	Wire Type

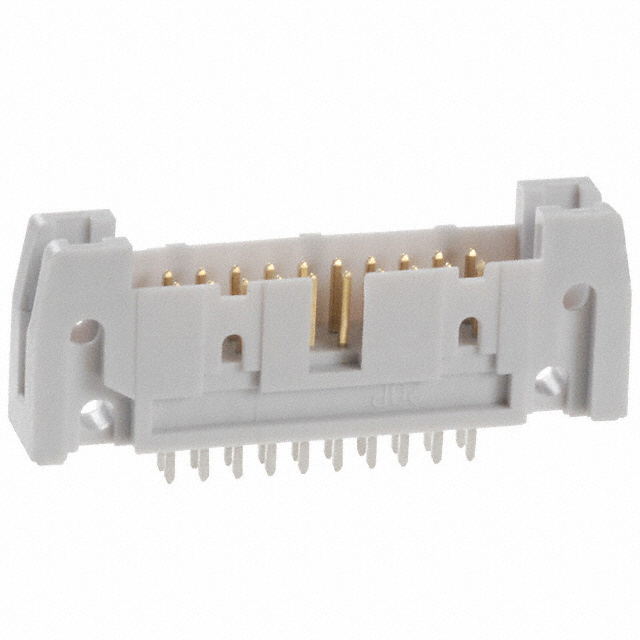

Assmann WSW Components AWH20G-0202-T-R	Gray	-40 C	105 ░C	Through Hole	Male Pin	Shrouded - 4 Wall	Gold	Brass	Push-Pull	Tin	0.1 "	2.54 mm	Flash	Board to Cable/Wire	UL94 V-0	Square	17 mm	0.669 in	3 A	All	Header	2	20	Solder	Keying Slot	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT) Glass Filled	0.13 "	3.3 mm
Assmann WSW Components AWH20G-0222-IDC-R				Free Hanging (In-Line)	Male Pin				Latch Lock/Eject Hooks												Header	2	20		Feed Through						2.54 mm	0.1 "	0.1 "	2.54 mm	IDC	Gold	Gray	Ribbon Cable
Assmann WSW Components AWH 20G-0232-T	Gray	-40 C	105 ░C	Through Hole	Male Pin	Shrouded - 4 Wall	Gold	Brass	Latch Lock/Eject Hooks Long	Tin	0.1 "	2.54 mm	Flash	Board to Cable/Wire	UL94 V-0	Square	17 mm	0.669 in	3 A	All	Header	2	20	Solder	Keying Slot	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT) Glass Filled	0.13 "	3.3 mm

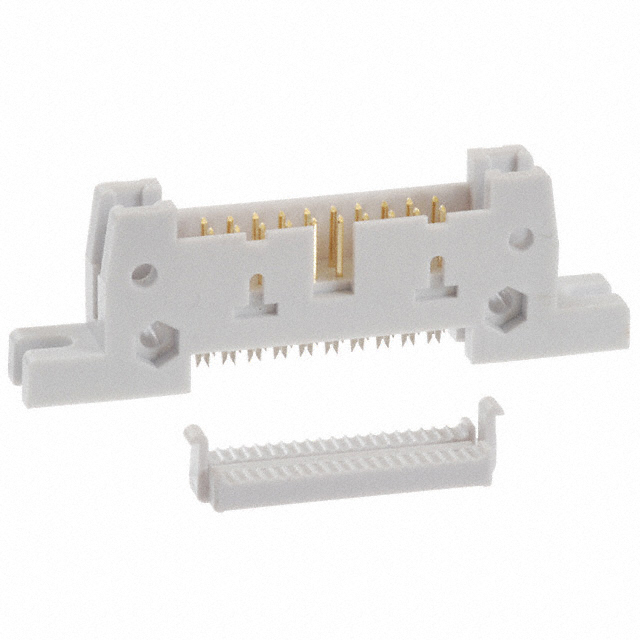

Assmann WSW Components AWH20G-E202-IDC-R				Panel Mount	Male Pin																Header	2	20		Feed Through						2.54 mm	0.1 "	0.1 "	2.54 mm	IDC	Gold	Gray	Ribbon Cable
Assmann WSW Components AWH20G-E222-IDC-R				Panel Mount	Male Pin				Latch Lock/Eject Hooks												Header	2	20		Feed Through						2.54 mm	0.1 "	0.1 "	2.54 mm	IDC	Gold	Gray	Ribbon Cable
Assmann WSW Components AWH 20G-0232-IDC				Free Hanging (In-Line)	Male Pin				Latch Lock/Eject Hooks Long												Header	2	20		Feed Through						2.54 mm	0.1 "	0.1 "	2.54 mm	IDC	Gold	Gray	Ribbon Cable
