GLK19264 Series

Catalog

LCD GRAPHIC DISPLAY MODULES & ACCESSORIES 192X64 BLK TXT Y/G B/G 7 KEY, REV 2.0

Part	Dot Pitch [x]	Dot Pitch [y]	Dot Size [custom]	Dot Size [custom]	Display Mode	Dot Pixels [x]	Dot Pixels [y]	Display Type	Viewing Area [z]	Viewing Area [y]	Background Color	Graphics Color	Interface	Backlight	Viewing Area [x]	Background Color [custom]
Matrix Orbital GLK19264A-7T-1U-YG	0.39 mm	0.39 mm	0.36 mm	0.36 mm	Transmissive	192	64	Monochrome	28.4 mm	98 mm	Green	Gray	I2C RS-232 TTL

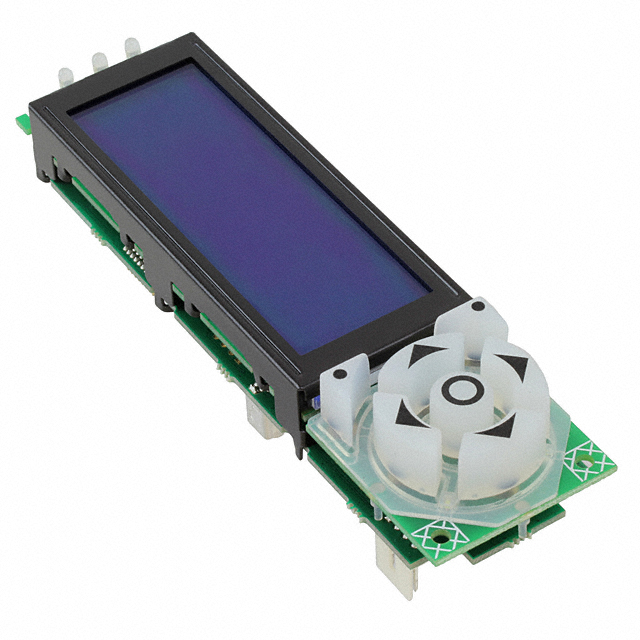

Matrix Orbital GLK19264A-7T-1U-USB-WB	0.39 mm	0.39 mm	0.36 mm	0.36 mm	Transmissive	192	64	Monochrome	28.4 mm	98 mm	Blue	White	USB	LED - White
Matrix Orbital GLK19264A-7T-1U-WB-VPT	0.39 mm	0.39 mm	0.36 mm	0.36 mm		192	64	LCD - Monochrome		24.93 mm	Blue	White	I2C RS-232 TTL		74.85 mm
Matrix Orbital GLK19264A-7T-1U-422-YG-VPT-E	0.39 mm	0.39 mm	0.36 mm	0.36 mm		192	64	LCD - Monochrome		24.93 mm		Black			74.85 mm	Green Yellow
Matrix Orbital GLK19264A-7T-1U-FGW-E	0.39 mm	0.39 mm	0.36 mm	0.36 mm		192	64	LCD - Monochrome		24.93 mm	White	Gray	I2C RS-232 TTL		74.85 mm

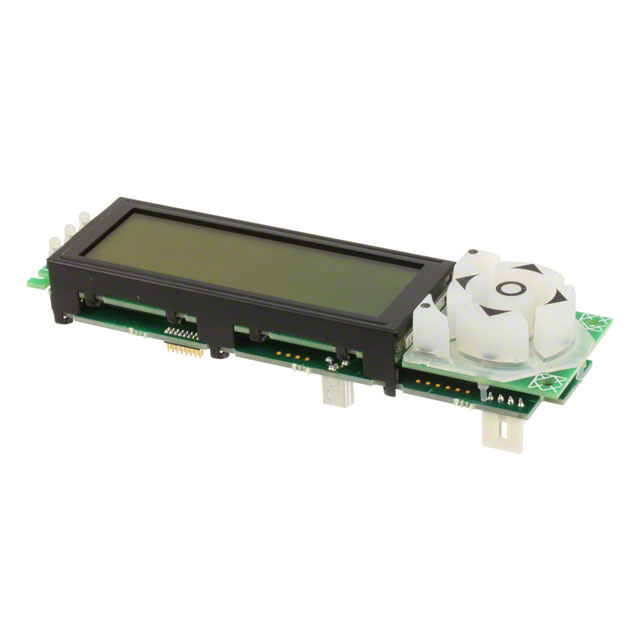

Matrix Orbital GLK19264A-7T-1U-USB-YG	0.39 mm	0.39 mm	0.36 mm	0.36 mm	Transmissive	192	64	Monochrome	28.4 mm	98 mm	Green	Gray	USB
Matrix Orbital GLK19264A-7T-1U-YG-VPT	0.39 mm	0.39 mm	0.36 mm	0.36 mm		192	64	LCD - Monochrome		24.93 mm		Black	I2C RS-232 TTL		74.85 mm	Green Yellow

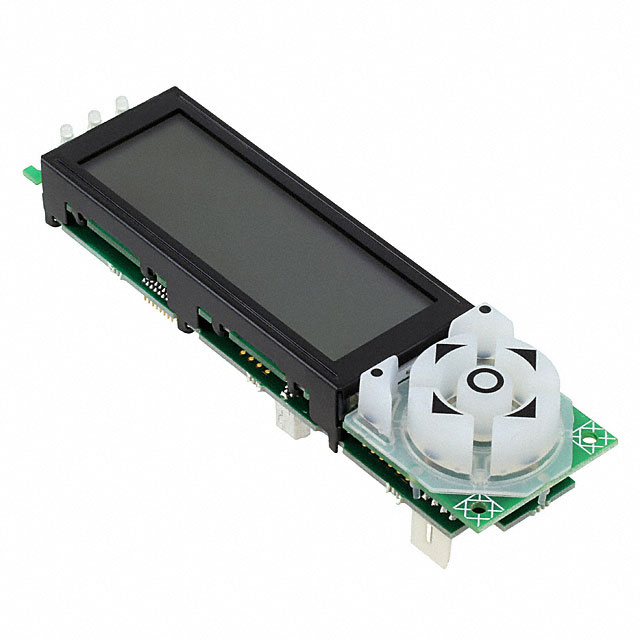

Matrix Orbital GLK19264A-7T-1U-USB-FGW	0.39 mm	0.39 mm	0.36 mm	0.36 mm	Transmissive	192	64	Monochrome	28.4 mm	98 mm	White	Gray	USB	LED - White
Matrix Orbital GLK19264A-7T-1U-FGW-VPT-E	0.39 mm	0.39 mm	0.36 mm	0.36 mm		192	64	LCD - Monochrome		24.93 mm	White	Gray	I2C RS-232 TTL		74.85 mm
Matrix Orbital GLK19264A-7T-1U-422-TCI-VPT	0.39 mm	0.39 mm	0.36 mm	0.36 mm		192	64	TFT - Color		24.93 mm	Black	Blue Green Red			74.85 mm
