6424 Series

Catalog

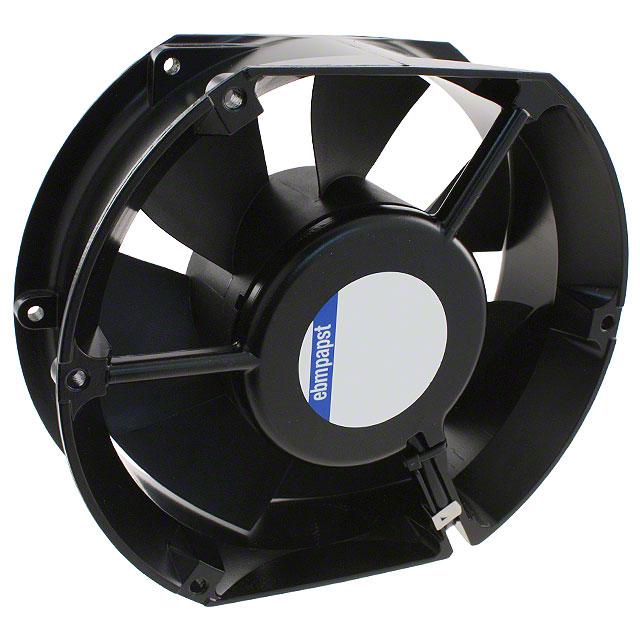

DC AXIAL FAN, 24 V, RECTANGULAR WITH ROUNDED ENDS, 172 MM, 51 MM, BALL BEARING, 282.5 CFM

Part	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Termination	Width [y]	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Air Flow	Air Flow	Bearing Type	Weight	Weight	Noise	Power (Watts)	RPM	Fan Type	Voltage - Rated	Features	Termination	Current Rating (Amps)	Static Pressure	Static Pressure	Approval Agency	Ingress Protection
ebm-papst Inc. 6424H	Polyamide (PA) Nylon Fiberglass Reinforced	28 V	12 VDC	Aluminum	70000 Hrs	55 °C	55 °C	-4 °F	-20 ░C	2	50.8 mm	Rectangular/Rounded	150 mm	172 mm	7.91 mł/min	282.5 CFM	Ball	1.7 lbs	771.1 g	63 dB	26 W	4000 RPM	Tubeaxial	24 VDC
ebm-papst Inc. 6424/12H	Polyamide (PA) Nylon Fiberglass Reinforced	28 V	12 VDC	Aluminum	70000 Hrs	55 °C	55 °C	-4 °F	-20 ░C		50.8 mm	Rectangular/Rounded	150 mm	171.5 mm	7.92 m³/min	283 CFM	Ball			63 dB	26 W	4000 RPM	Tubeaxial	24 VDC	Speed Sensor (Tach)	3 Wire Leads
ebm-papst Inc. 6424/2HP-210	Polyamide (PA) Nylon Fiberglass Reinforced	28 V	12 VDC	Aluminum		72 °C 162 °F			-20 ░C		50.8 mm	Rectangular/Rounded	150 mm	171.5 mm	8.08 m³/min	288.6 CFM	Ball			63 dB	31.4 W	4270 RPM	Tubeaxial	24 VDC	Auto Restart Locked Rotor Sensor PWM Control Speed Sensor (Tach)	4 Position Rectangular Connector	1.31 A	245.1 Pa	0.984 in H2O	CE CSA EAC UL VDE
ebm-papst Inc. 6424U	Polyamide (PA) Nylon Fiberglass Reinforced	28 V	12 VDC	Aluminum		167 °F			-4 °F	2	50.8 mm	Rectangular/Rounded	150.4 mm	171.5 mm	6.76 m³/min	241.3 CFM	Ball	1.7 lbs	771.1 g	57 dB	18 W	3400 RPM	Tubeaxial	24 VDC						UL	IP68 - Dust Tight Waterproof
ebm-papst Inc. 6424R-343	Plastic	28 V	12 VDC	Metal						2	50.8 mm	Rectangular/Rounded	150.4 mm	171.5 mm	6.75 mł/min	241 CFM	Ball	1.8 lbs	816.5 g	57 dB	18 W		Tubeaxial	24 VDC
