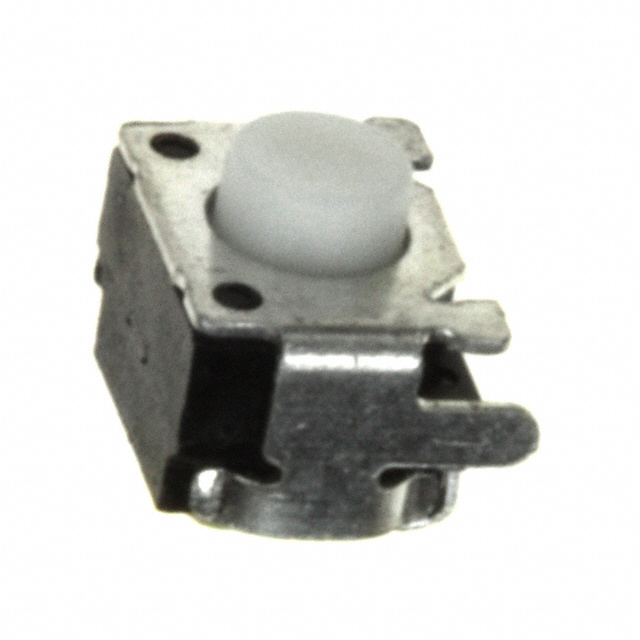

TL3340 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Mechanical Life | Actuator Material | Switch Travel | Circuit | Actuator Length, Right Angle [x] | Operating Force | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Contact Rating @ Voltage | Actuator Orientation | Outline [y] | Outline [x] | Illumination | Termination Style | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 100000 Cycles | Polyphthalamide (PPA) | 0.2 mm | SPST-NO | 3.4 mm | 160 gf | Right Angle Surface Mount | 85 °C | -35 °C | Off-Mom | 0.05 A 12 VDC | Side Actuated | 3.3 mm | 4 mm | Non-Illuminated | Gull Wing | Standard |
 E-Switch | 100000 Cycles | Polyphthalamide (PPA) | 0.2 mm | SPST-NO | 5.9 mm | 160 gf | Right Angle Surface Mount | 85 °C | -35 °C | Off-Mom | 0.05 A 12 VDC | Side Actuated | 2.55 mm | 4 mm | Non-Illuminated | Gull Wing | Standard |
