19302100 Series
Manufacturer: HARTING
Beta
⌘K
HEAVY DUTY CONNECTOR, M32 TOP ENTRY, 2 PEGS, HIGH PROFILE, HOOD, TOP ENTRY, ALUMINUM BODY, 1 LEVER
| Part | Style | Lock Location | Connector Type | Housing Finish | Housing Color | Ingress Protection | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Housing Material | Size | Thread Size | Operating Temperature [Max] | Operating Temperature [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Top Entry | Locking Clip (1) on Base Bottom | Hood | Powder Coated | Gray | IP65 - Dust Tight Water Resistant | 72 mm | 1.693 " | 2.835 " | 72.6 mm | 2.858 in | 43 mm | Aluminum Die Cast | 10B | M32 | 125 °C | -40 C | |

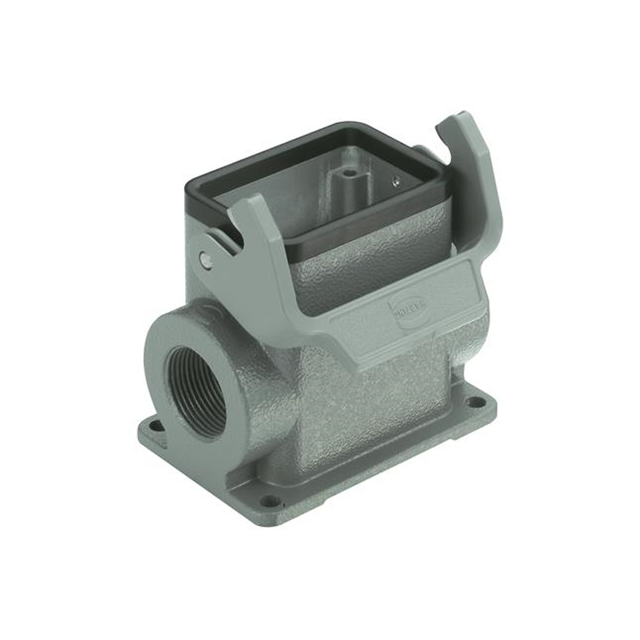

 HARTING | Side Entry Dual | Locking Clip (1) on Base Bottom | Base - Box Mount | Powder Coated | Gray | IP65 - Dust Tight Water Resistant | 3.181 " 80.8 mm | 3.701 " 94 mm | 2.244 in 57 mm | Aluminum Die Cast | 10B | M25 | 125 °C | -40 C | Feed Through |
