RC Series

Circular Metric Connectors RC-06P1Y8A1L00

Manufacturer: Phoenix Contact

Catalog

Circular Metric Connectors RC-06P1Y8A1L00

Catalog

Circular Metric Connectors RC-06P1Y8A1L00

Part	Features	Color	Accessory Type	Shell Material	Note	Fastening Type	Type	Shell Size - Insert	Ingress Protection	Housing Color	Mounting Type	Shielding	Connector Type	Mounting Feature	Contact Shape	Orientation	Note	Contact Size	Insert Material	Contact Type	Contact Finish	Contact Termination	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Contact Finish - Mating	Contact Material	Termination

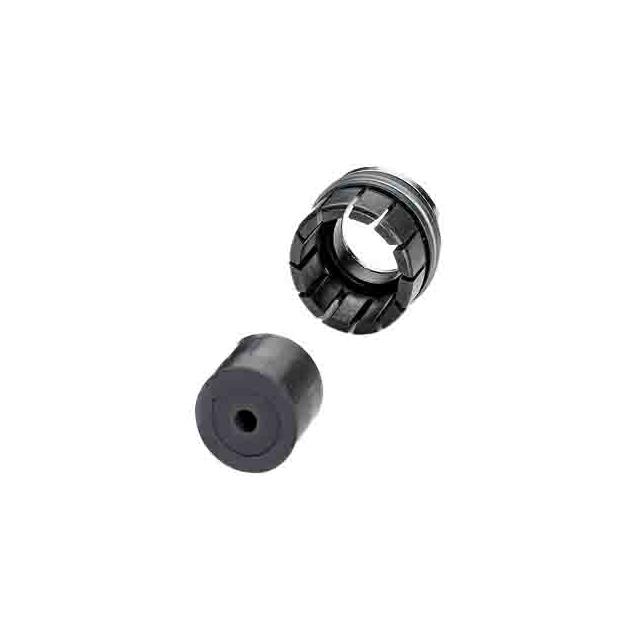

Phoenix Contact 1604561	Shielded	Black	Clamp Cage with Shield Adapter

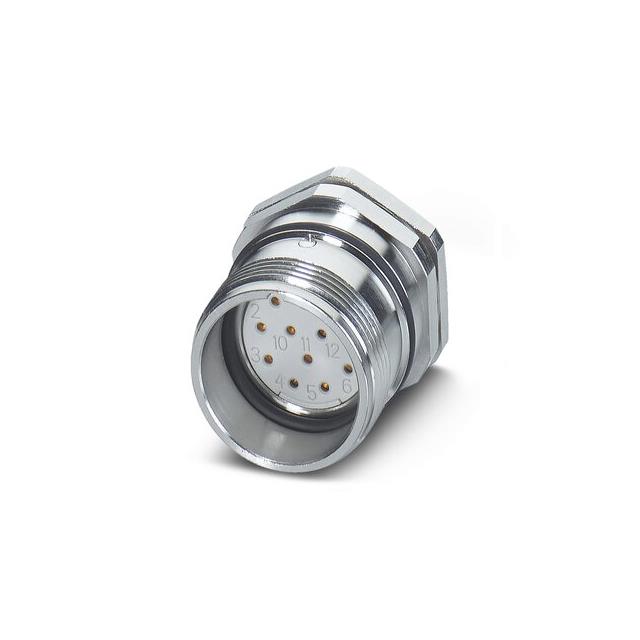

Phoenix Contact 1593706				Gadolinium-Zinc	Contacts Not Included; Insert Not Included	Threaded	For Female Sockets	M23	IP67 - Dust Tight Waterproof	Silver	Panel Mount	Shielded	Insert Shell	Bulkhead - Rear Side Nut

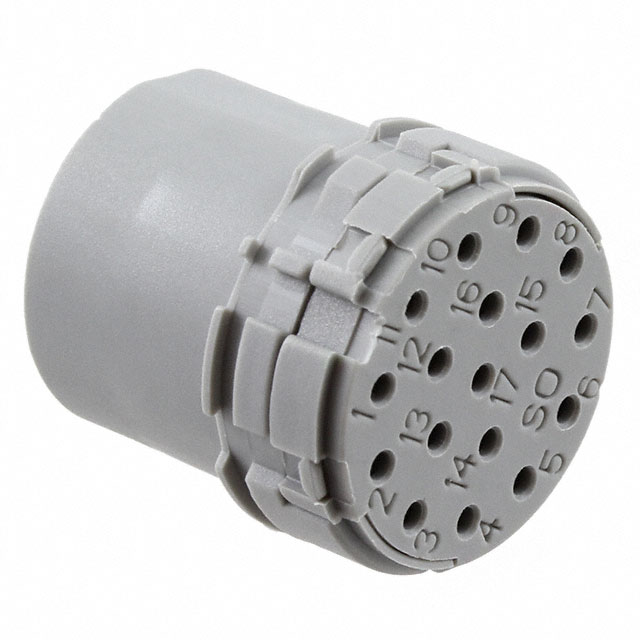

Phoenix Contact 1602082					Insert Only		For Female Sockets					Unshielded	Insert		Circular	N (Normal)		1 mm	Nylon 6/6 Polyamide (PA66)	Crimp
Phoenix Contact 1603805							Signal Machined											1.5 mm		Socket	Gold	Crimp	0.75 mm²	1 mm²
Phoenix Contact 1604375	Shielded	Black	Clamp Cage with Shield Adapter

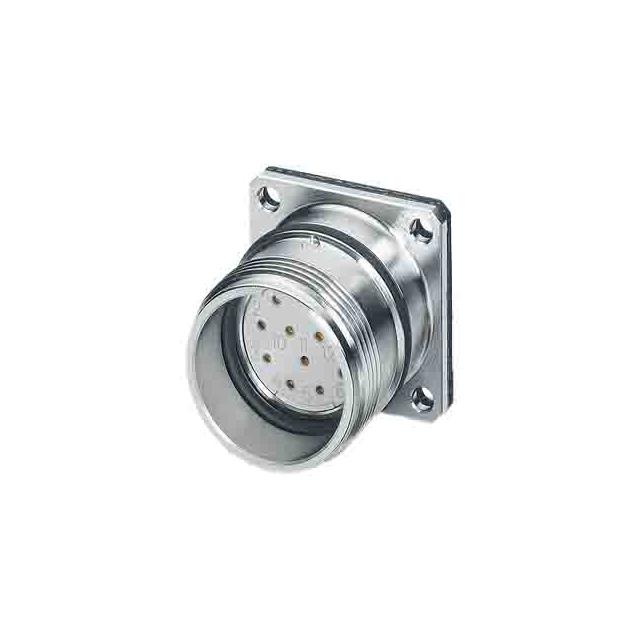

Phoenix Contact 1601827				Metal	Contacts Not Included; Insert Not Included	Threaded	For Female Sockets	M23	IP67 - Dust Tight Waterproof	Silver	Panel Mount	Shielded	Insert Shell	Flange
Phoenix Contact 1593919				Metal	Contacts Not Included; Insert Not Included	Threaded	For Female Sockets	M23	IP67 - Dust Tight Waterproof		Free Hanging (In-Line) Panel Mount	Shielded	Insert Shell	Flange
Phoenix Contact 1604529	Shielded	Black	Clamp Cage with Shield Adapter
Phoenix Contact 1603802							Signal Machined											1.5 mm		Pin	Gold	Crimp	0.75 mm²	1 mm²
Phoenix Contact 1606997	Insert Only Requires Shell												Insert Male Pins			N (Normal)			Nylon 6/6 Polyamide (PA66)						Gold	Copper Zinc	Crimp
