GLF71301 Series
Manufacturer: GLF Integrated Power
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
NANO-CURRENT CONSUMED PWR SWITCH
| Part | Package Name | Package Length | Package Width | Package / Case | Switch Type | Output Configuration | Current - Output (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Supply (Vcc/Vdd) Minimum | Voltage - Supply (Vcc/Vdd) Maximum | Rds On (Typ) | Mounting Type | Number of Outputs | Voltage - Load (Min) | Voltage - Load (Max) | Output Ratio | Input Ratio | Features | Voltage - Supply (Vdd/Vcc) | Voltage - Supply (Vcc/Vdd) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

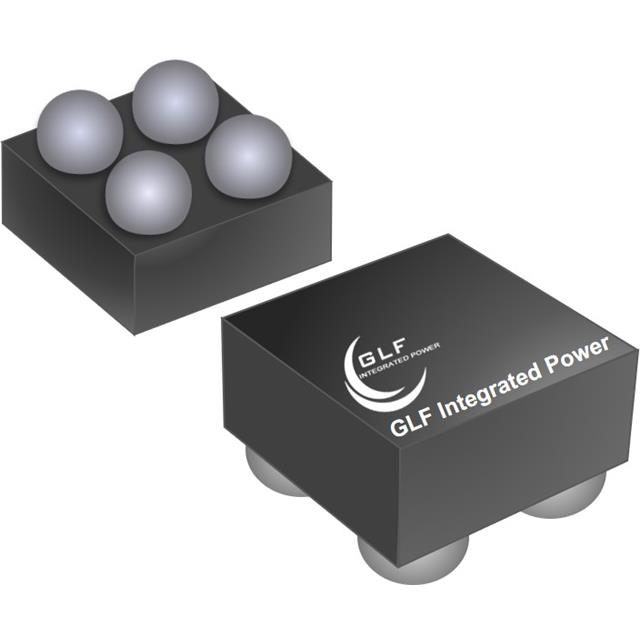

 GLF Integrated Power | 4-WLCSP | 0.77 mm | 0.77 mm | 4-XFBGA WLCSP | Load Switch | High Side | 1.5 A | -40 °C | 85 °C | 1.1 V | 5.5 V | 34 mOhm | Surface Mount | ||||||||

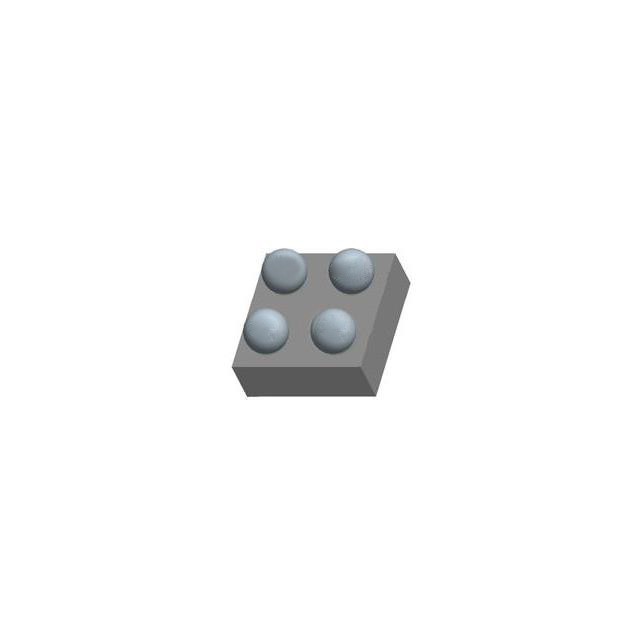

 GLF Integrated Power | 4-WLCSP | 0.77 mm | 0.77 mm | 4-UFBGA WLCSP | Load Switch | High Side | 1.5 A | -40 °C | 85 °C | 1.1 V | 5.5 V | 34 mOhm | Surface Mount | ||||||||

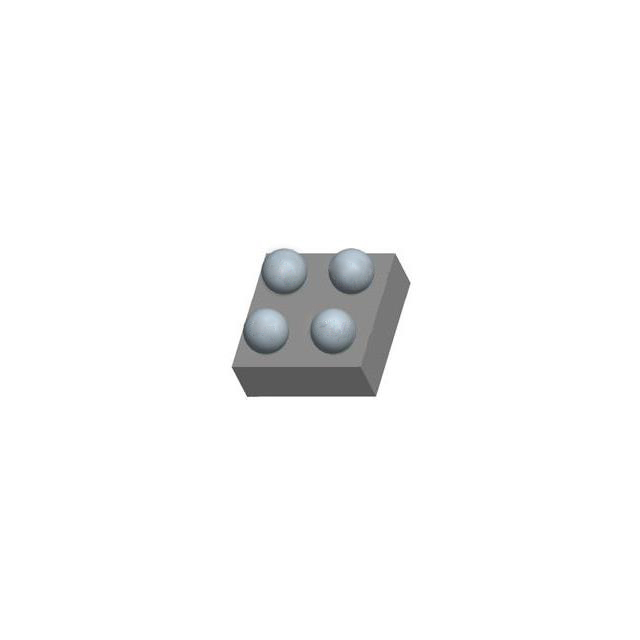

 GLF Integrated Power | 4-WLCSP | 0.77 mm | 0.77 mm | 4-UFBGA WLCSP | General Purpose | 2 A | -40 °C | 85 °C | 34 mOhm | Surface Mount | 1 | 1.1 V | 5.5 V | 1 | 1 | Load Discharge Slew Rate Controlled | Not Required | Not Required |
