120084 Series

Manufacturer: Molex

Catalog

CBL CIRC 12POS FEM TO WIRE 0.98'

Part	1st Connector Gender	Cable Material	Usage	1st Connector Type	Shielding	2nd Connector Type	1st Connector Number of Positions Loaded	1st Connector Mounting Type	Color	Ingress Protection	1st Connector Shell Size - Insert	Cable Type	Assembly Configuration	1st Connector Number of Positions [custom]	Termination	Number of Positions	Primary Material	Mounting Type	Contact Finish - Mating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Shell Size - Insert	Shell Finish	Current Rating (Amps)	Voltage Rating	Orientation	Mounting Feature	1st Connector Orientation	1st Connector Number of Positions	Insert Material	Applications	Contact Material	1st Connector Orientation [custom]
Molex 1200845013	Female Sockets	Polyvinyl Chloride (PVC)	Industrial Environments	Receptacle	Unshielded	Wire Leads	All	Panel Mount	Multiple	IP69K - Dust Tight High Temp Water Jets Waterproof	M12	Individual	Standard	12
Molex 1200840047					Shielded				Silver	IP69K - Dust Tight High Temp Water Jets Waterproof					Solder	8	Metal	Panel Mount Through Hole	Gold	Male Pins Receptacle	90 °C	-25 °C	Brass	M12-8	Nickel	2 A	30 VAC 36 VDC	Keyed	Bulkhead - Front Side Nut

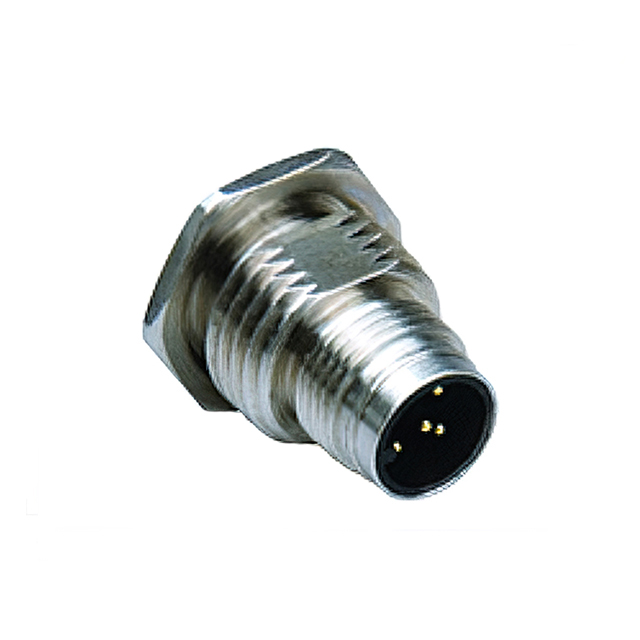

Molex 1200845181					Shielded				Silver	IP69K - Dust Tight High Temp Water Jets Waterproof					Solder		Metal	Panel Mount Through Hole	Gold	Male Pins Receptacle	90 °C	-25 °C	Brass	M12-5	Nickel	4 A	60 VDC	Keyed	Bulkhead - Front Side Nut
Molex 1200845132
Molex 1200840025	Female Sockets	Polyvinyl Chloride (PVC)	Industrial Environments	Plug	Unshielded	Wire Leads	All	Panel Mount	Multiple	IP67 - Dust Tight Waterproof	M12	Individual	Standard																	A	5
Molex 1200840009

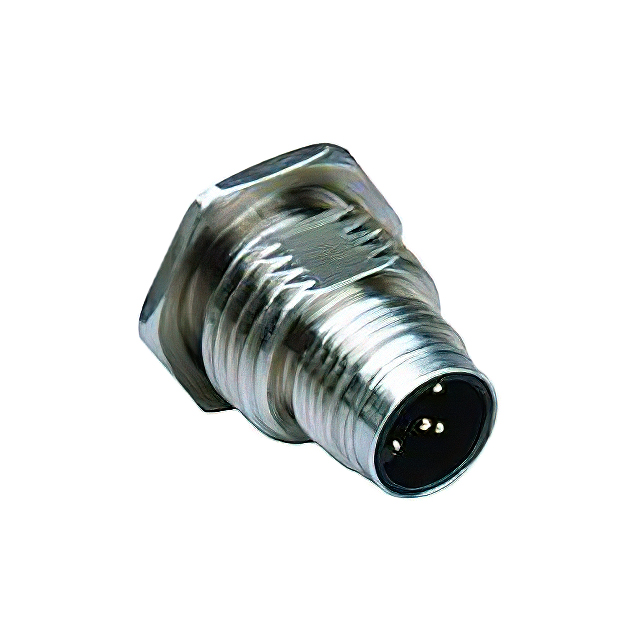

Molex 1200840032					Unshielded				Silver	IP67 IP68 IP69K					Solder	8	Metal	Panel Mount Through Hole	Gold	Male Pins Receptacle	90 °C	-25 °C	Brass	M12-8	Nickel	2 A	30 VAC 36 VDC	Keyed	Bulkhead - Front Side Nut			Nylon Polyamide (PA)	Industrial	Brass

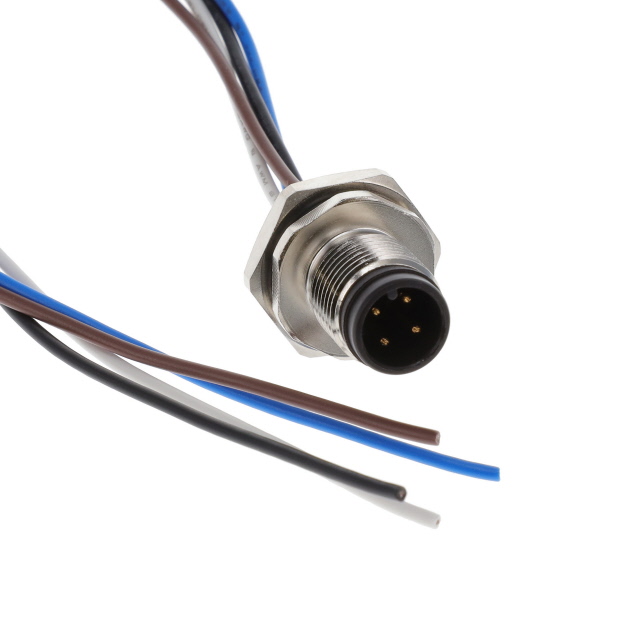

Molex 1200845108	Male Pins		Industrial Environments	Receptacle	Unshielded	Wire Leads	All	Free Hanging (In-Line)		IP67 IP69K	M12	Individual	Standard																		4
Molex 1200840016	Female Sockets	Polyvinyl Chloride (PVC)	Industrial Environments	Plug	Unshielded	Wire Leads	All	Panel Mount	Multiple	IP67 IP68 IP69K	M12	Individual	Standard																		5				Keyed
Molex 1200845179					Shielded				Silver	IP69K - Dust Tight High Temp Water Jets Waterproof					Solder		Metal	Panel Mount Through Hole	Gold	Receptacle Female Sockets	90 °C	-25 °C	Brass	M12-5	Nickel	4 A	60 VDC	Keyed	Bulkhead - Front Side Nut
