EX-28 Series

Catalog

SENSOR REFLECTIVE 150MM PNP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Cable Length	Cable Length	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Connection Method	Ingress Protection	Sensing Method	Response Time	Output Configuration	Light Source

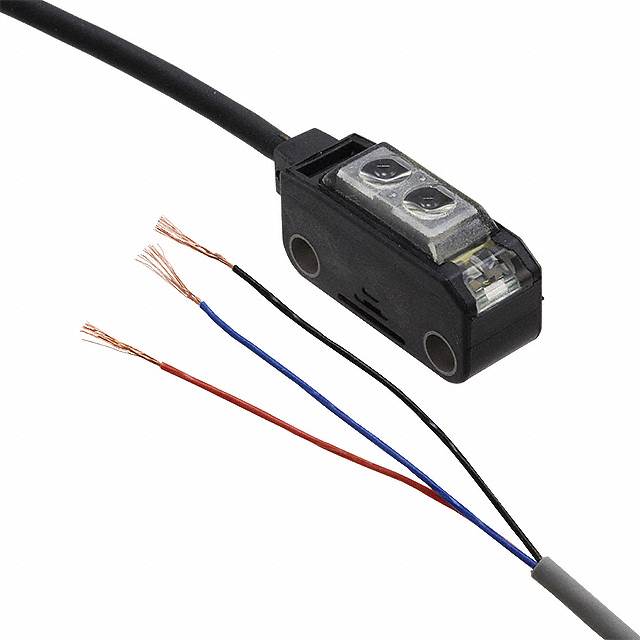

Panasonic Industrial Automation Sales EX-28A-PN	55 °C	-25 °C	78.74 in	2 m	5.906 "	1.77 "	15 cm	45 mm	12 V	24 V	Cable	IP67	Diffuse Reflective	500 µs	PNP - Open Collector/Light-ON	Red LED

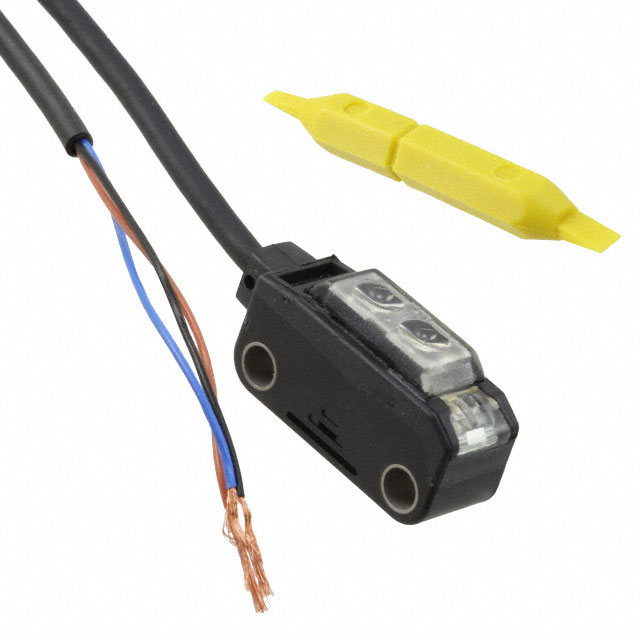

Panasonic Industrial Automation Sales EX-28A	55 °C	-25 °C	78.74 in	2 m	5.906 "	1.77 "	15 cm	45 mm	12 V	24 V	Cable	IP67	Diffuse Reflective	500 µs	NPN - Open Collector/Light-ON	Red LED
Panasonic Industrial Automation Sales EX-28A-C5	55 °C	-25 °C	196.85 in	5 m	5.906 "	1.77 "	15 cm	45 mm	12 V	24 V	Cable	IP67	Diffuse Reflective	500 µs	NPN - Open Collector/Light-ON	Red LED

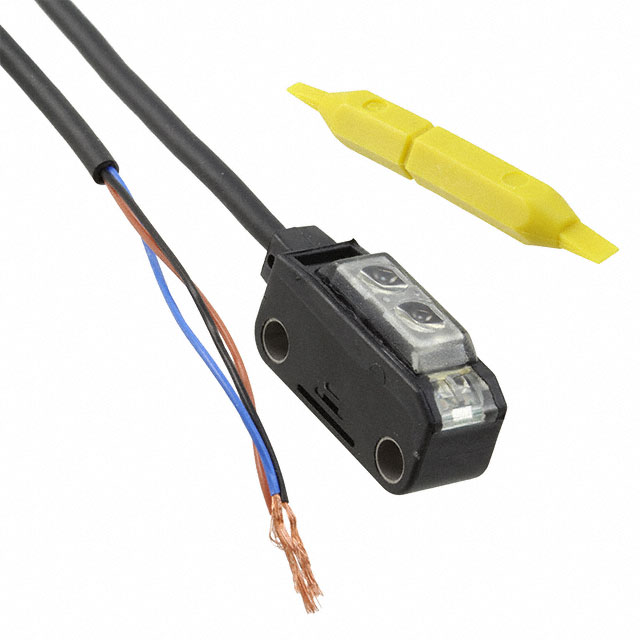

Panasonic Industrial Automation Sales EX-28B	55 °C	-25 °C	78.74 in	2 m	5.906 "	1.77 "	15 cm	45 mm	12 V	24 V	Cable	IP67	Diffuse Reflective	500 µs	NPN - Open Collector/Dark-ON	Red LED
