G31K0C-P Series
Manufacturer: ODU
Beta
⌘K

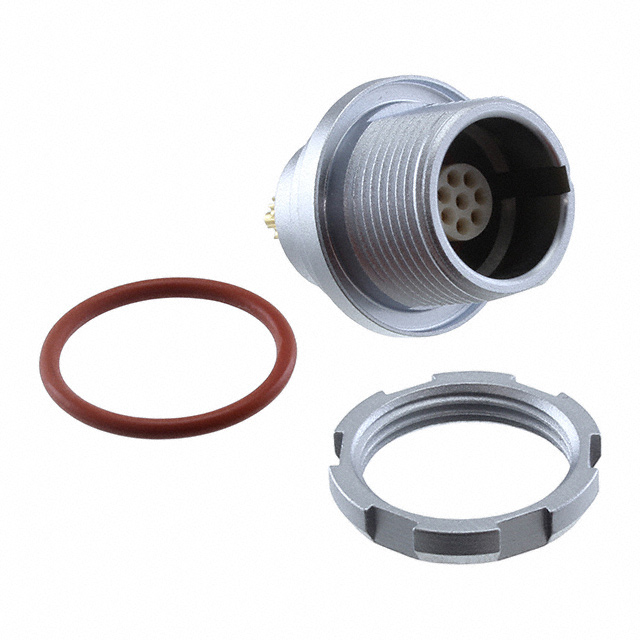

ODU MINI-SNAP RECEPT, STY 3, SZ
| Part | Color | Insert Material | Features | Voltage Rating | Shielding | Shell Finish | Orientation | Connector Type | Applications | Shell Material | Primary Material | Mounting Type | Mounting Feature | Termination | Shell Size - Insert | Contact Finish - Mating | Number of Positions | Ingress Protection | Fastening Type | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Silver | Polyetheretherketone (PEEK) | Ground | 333 V | Shielded | Chrome over Nickel | 0 | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Brass | Metal | Panel Mount Through Hole | Bulkhead - Front Side Nut | Solder | 1 | Gold | 10 | IP68 - Dust Tight Waterproof | Push-Pull | 4 A | 120 °C | -40 C | Brass | |
Silver | Polyetheretherketone (PEEK) | Ground | 500 V | Shielded | Chrome over Nickel | 0 | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Brass | Metal | Panel Mount | Bulkhead - Front Side Nut | Crimp | 1 | Gold | 4 | IP68 - Dust Tight Waterproof | Push-Pull | 7.5 A | 120 °C | -40 C | Brass | |
Silver | Polyetheretherketone (PEEK) | Ground | 333 V | Shielded | Chrome over Nickel | 0 | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Brass | Metal | Panel Mount Through Hole | Bulkhead - Front Side Nut | Solder | 1 | Gold | 8 | IP68 - Dust Tight Waterproof | Push-Pull | 6 A | 120 °C | -40 C | Brass | |
Silver | Polyetheretherketone (PEEK) | Ground | 300 VDC | Shielded | Chrome over Nickel | 0 | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Brass | Metal | Panel Mount | Bulkhead - Front Side Nut | 1 | Gold | 8 | IP68 - Dust Tight Waterproof | Push-Pull | 7.5 A | 120 °C | -40 C | Brass | ||
Silver | Polyetheretherketone (PEEK) | Ground | 333 V | Shielded | Chrome over Nickel | 0 | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Brass | Metal | Panel Mount | Bulkhead - Front Side Nut | 1 | Gold | 8 | IP68 - Dust Tight Waterproof | Push-Pull | 4 A | 120 °C | -40 C | Brass | ||
Silver | Polyetheretherketone (PEEK) | Ground | 400 V | Shielded | Chrome over Nickel | 0 | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Brass | Metal | Panel Mount Through Hole | Bulkhead - Front Side Nut | Solder | 1 | Gold | 6 | IP68 - Dust Tight Waterproof | Push-Pull | 6 A | 120 °C | -40 C | Brass | |
Silver | Polyetheretherketone (PEEK) | Ground | 333 V | Shielded | Chrome over Nickel | 0 | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Brass | Metal | Panel Mount | Bulkhead - Front Side Nut | Crimp | 1 | Gold | IP68 - Dust Tight Waterproof | Push-Pull | 15 A | 120 °C | -40 C | Brass | ||
Silver | Polyetheretherketone (PEEK) | Ground | 400 V | Shielded | Chrome over Nickel | 0 | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Brass | Metal | Panel Mount Through Hole | Bulkhead - Front Side Nut | Solder | 1 | Gold | 7 | IP68 - Dust Tight Waterproof | Push-Pull | 6 A | 120 °C | -40 C | Brass | |
Silver | Polyetheretherketone (PEEK) | Ground | 333 V | Shielded | Chrome over Nickel | 0 | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Brass | Metal | Panel Mount Through Hole | Bulkhead - Front Side Nut | Solder | 1 | Gold | 5 | IP68 - Dust Tight Waterproof | Push-Pull | 7.5 A | 120 °C | -40 C | Brass | |
Silver | Polyetheretherketone (PEEK) | Ground | 200 V | Shielded | Chrome over Nickel | 0 | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Brass | Metal | Panel Mount Through Hole | Bulkhead - Front Side Nut | Solder | 1 | Gold | 16 | IP68 - Dust Tight Waterproof | Push-Pull | 4 A | 120 °C | -40 C | Brass |
