VLD2S00B Series

Catalog

SWITCH ROCKER DPDT 20A 12V

Part	Electrical Life	Mechanical Life	Actuator Marking	Color - Actuator/Cap	Voltage Rating - DC	Approval Agency	Actuator Type	Ingress Protection	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination Style	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Mounting Type	Circuit
Carling Technologies VLD2S00B-FAZC00-000	100000 Cycles	100000 Cycles	No Marking	Black	12 V	CSA UL VDE	Convex (Reverse V)	IP66 IP68	36.83 mm	21.08 mm	Quick Connect - 0.250" (6.3mm)	20 A	85 °C	-40 C	Mom-Off-Mom	Panel Mount Snap-In	DPDT

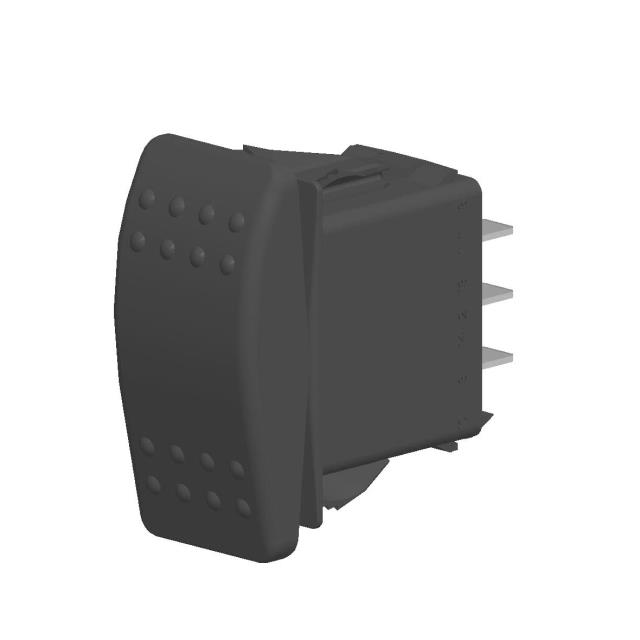

Carling Technologies VLD2S00B-AZC00-000	100000 Cycles	100000 Cycles	No Marking	Black	12 V	CSA UL VDE	Convex (Reverse V)	IP66 IP68	36.83 mm	21.08 mm	Quick Connect - 0.250" (6.3mm)	20 A	85 °C	-40 C	Mom-Off-Mom	Panel Mount Snap-In	DPDT
Carling Technologies VLD2S00B-AZC84-200	100000 Cycles	100000 Cycles	High Beam - Master Light Horizontal	Black	12 V	CSA UL VDE	Convex (Reverse V)	IP66 IP68	36.83 mm	21.08 mm	Quick Connect - 0.250" (6.3mm)	20 A	85 °C	-40 C	Mom-Off-Mom	Panel Mount Snap-In	DPDT
Carling Technologies VLD2S00B-AZB00-000	100000 Cycles	100000 Cycles	No Marking	Black	12 V	CSA UL VDE	Convex (Reverse V)	IP66 IP68	36.83 mm	21.08 mm	Quick Connect - 0.250" (6.3mm)	20 A	85 °C	-40 C	Mom-Off-Mom	Panel Mount Snap-In	DPDT
