LCC350 Series

Catalog

CONN TERM RECT TONG 350 MCM #3/8

Part	Tab Thickness	Tab Thickness	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Contact Finish	Color	Contact Material	Terminal Style	Insulation	Width - Outer Edges [y]	Width - Outer Edges [y]	Wire Gauge	Termination	Stud/Tab Size	Mounting Type	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Terminal Type	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Diameter - Ring ID [diameter]	Length - Overall [x]	Length - Overall [x]
Panduit Corp LCC350-38DH-X	0.17 "	4.32 mm	0.88 in	22.35 mm	Electro-Tin	Red	Copper	Two Stud Holes	Non-Insulated	32.51 mm	1.28 in	350 MCM (kcmil)	Barrel Crimp	3/8 Stud	45° Angle Free Hanging (In-Line)	10.41 mm	0.41 "	Rectangular Tongue	17.78 mm	0.7 in

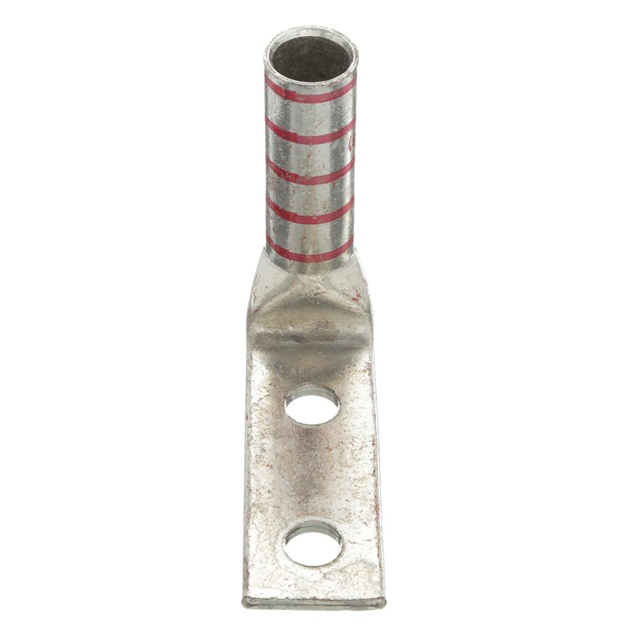

Panduit Corp LCC350-12F-X	0.17 "	4.32 mm	0.88 in	22.35 mm	Electro-Tin	Red	Copper	Two Stud Holes	Non-Insulated	32.51 mm	1.28 in	350 MCM (kcmil)	Barrel Crimp	1/2 Stud	Free Hanging (In-Line) Right Angle	0.53 in		Rectangular Tongue	17.78 mm	0.7 in	13.46 mm
Panduit Corp LCC350-00-X	0.17 "	4.32 mm	0.88 in	22.35 mm	Electro-Tin	Red	Copper	No Stud Hole	Non-Insulated	32.51 mm	1.28 in	350 MCM (kcmil)	Barrel Crimp		Free Hanging (In-Line)			Rectangular Tongue	17.78 mm	0.7 in		152.15 mm	5.99 in
Panduit Corp LCC350-38DWH-X	0.17 "	4.32 mm	0.88 in	22.35 mm	Electro-Tin	Red	Copper	Two Stud Holes	Non-Insulated	32.51 mm	1.28 in	350 MCM (kcmil)	Barrel Crimp	3/8 Stud	45° Angle Free Hanging (In-Line)	10.41 mm	0.41 "	Rectangular Tongue	17.78 mm	0.7 in
