FFC3B11 Series

Manufacturer: GCT

Catalog

CONN FFC FPC TOP 20POS 1MM R/A

Part	Actuator Color	Current Rating (Amps)	Mating Cycles	Housing Color	Features	FFC, FCB Thickness	Housing Material	Flat Flex Type	Voltage Rating	Actuator Material	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Connector/Contact Type	Number of Positions	Height Above Board [z]	Height Above Board [z]	Material Flammability Rating	Cable End Type	Pitch	Pitch	Contact Material	Locking Feature	Mounting Type

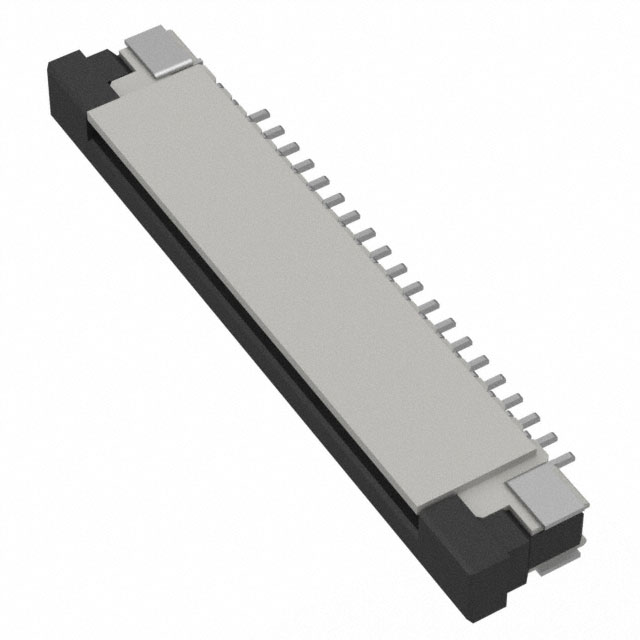

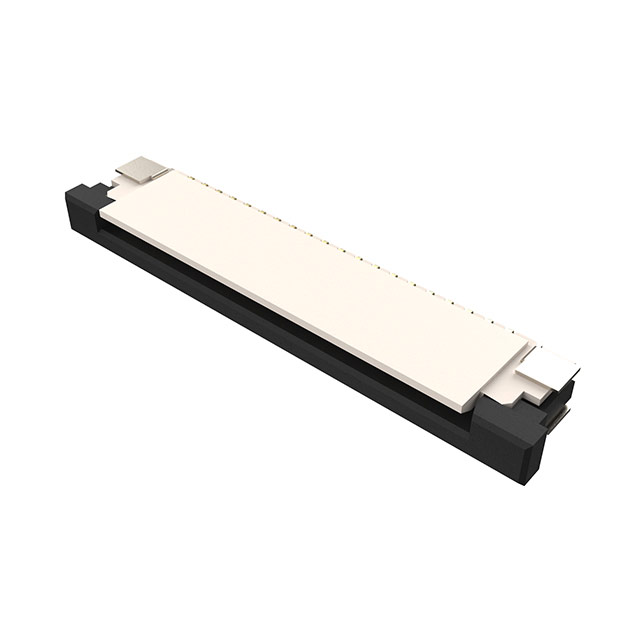

GCT FFC3B11-20-T	Black	400 mA	20	Natural	Solder Retention	0.3 mm	Thermoplastic	FFC FPC	50 V	Thermoplastic	Solder	85 °C	-25 °C	Tin	Contacts Top	20	0.098 in	2.5 mm	UL94 V-0	Tapered	1 mm	0.039 in	Phosphor Bronze	Slide Lock	Right Angle Surface Mount

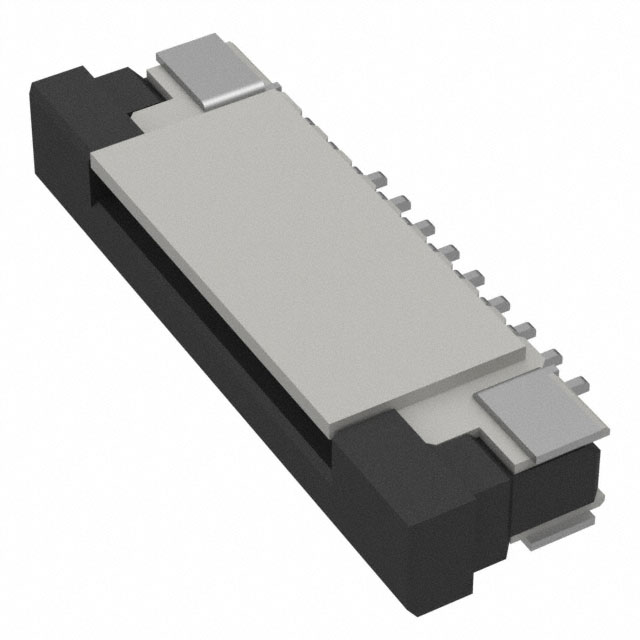

GCT FFC3B11-09-T	Black	400 mA	20	Natural	Solder Retention	0.3 mm	Thermoplastic	FFC FPC	50 V	Thermoplastic	Solder	85 °C	-25 °C	Tin	Contacts Top	9	0.098 in	2.5 mm	UL94 V-0	Tapered	1 mm	0.039 in	Phosphor Bronze	Slide Lock	Right Angle Surface Mount

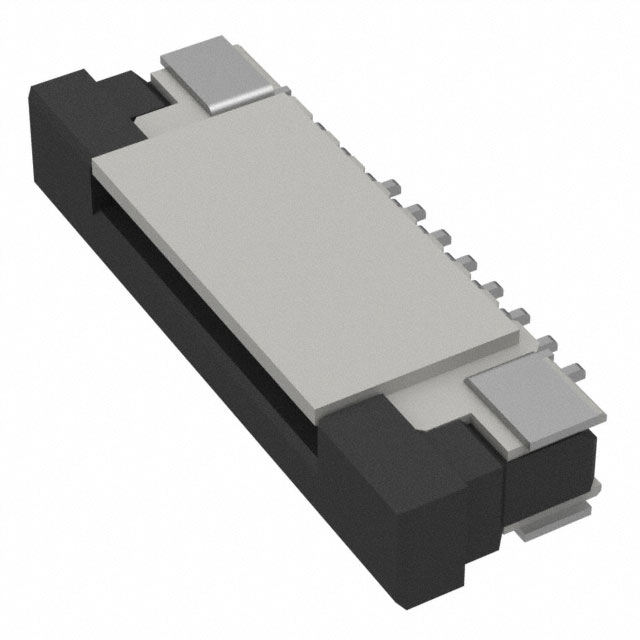

GCT FFC3B11-08-T	Black	400 mA	20	Natural	Solder Retention	0.3 mm	Thermoplastic	FFC FPC	50 V	Thermoplastic	Solder	85 °C	-25 °C	Tin	Contacts Top	8	0.098 in	2.5 mm	UL94 V-0	Tapered	1 mm	0.039 in	Phosphor Bronze	Slide Lock	Right Angle Surface Mount

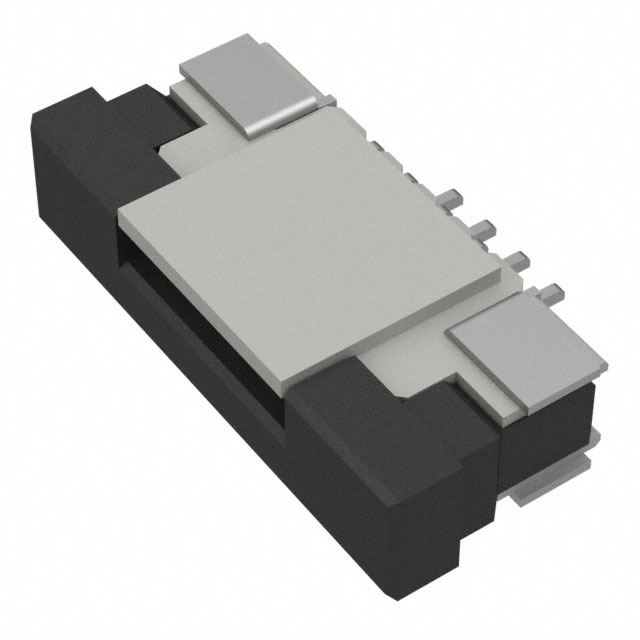

GCT FFC3B11-04-T	Black	400 mA	20	Natural	Solder Retention	0.3 mm	Thermoplastic	FFC FPC	50 V	Thermoplastic	Solder	85 °C	-25 °C	Tin	Contacts Top	4	0.098 in	2.5 mm	UL94 V-0	Tapered	1 mm	0.039 in	Phosphor Bronze	Slide Lock	Right Angle Surface Mount

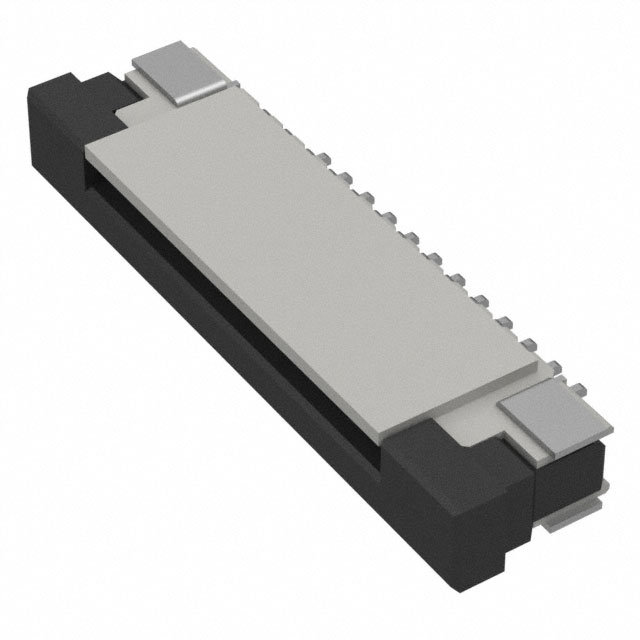

GCT FFC3B11-12-T	Black	400 mA	20	Natural	Solder Retention	0.3 mm	Thermoplastic	FFC FPC	50 V	Thermoplastic	Solder	85 °C	-25 °C	Tin	Contacts Top	12	0.098 in	2.5 mm	UL94 V-0	Tapered	1 mm	0.039 in	Phosphor Bronze	Slide Lock	Right Angle Surface Mount

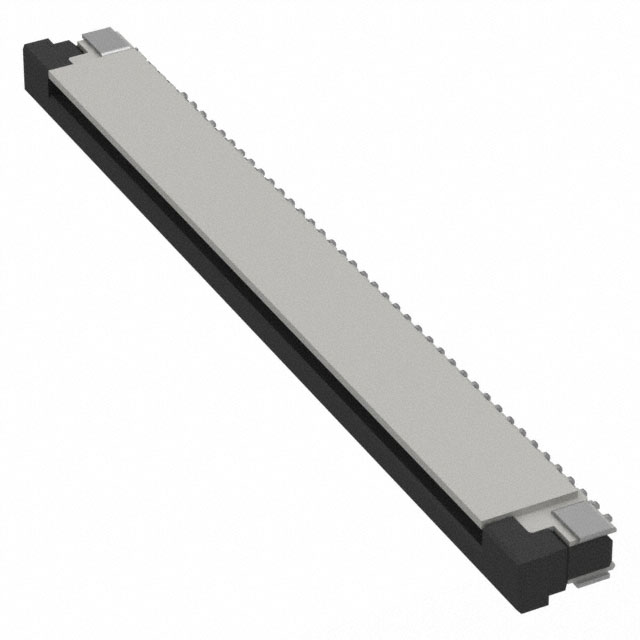

GCT FFC3B11-40-T	Black	400 mA	20	Natural	Solder Retention	0.3 mm	Thermoplastic	FFC FPC	50 V	Thermoplastic	Solder	85 °C	-25 °C	Tin	Contacts Top	40	0.098 in	2.5 mm	UL94 V-0	Tapered	1 mm	0.039 in	Phosphor Bronze	Slide Lock	Right Angle Surface Mount

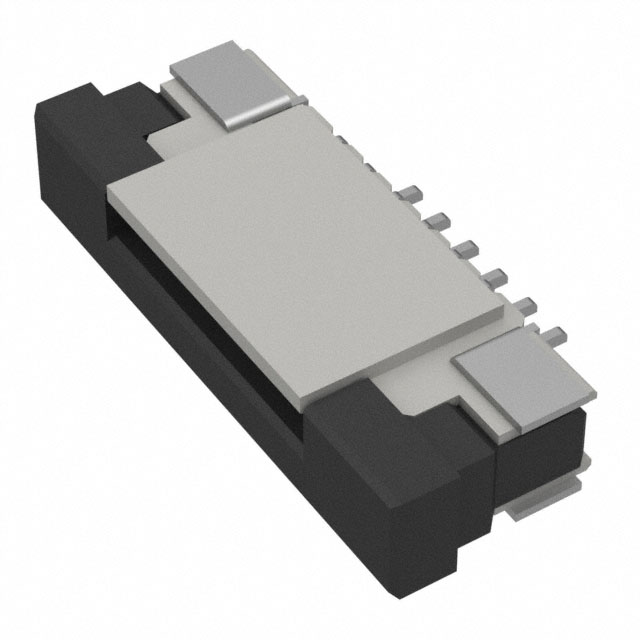

GCT FFC3B11-06-T	Black	400 mA	20	Natural	Solder Retention	0.3 mm	Thermoplastic	FFC FPC	50 V	Thermoplastic	Solder	85 °C	-25 °C	Tin	Contacts Top	6	0.098 in	2.5 mm	UL94 V-0	Tapered	1 mm	0.039 in	Phosphor Bronze	Slide Lock	Right Angle Surface Mount

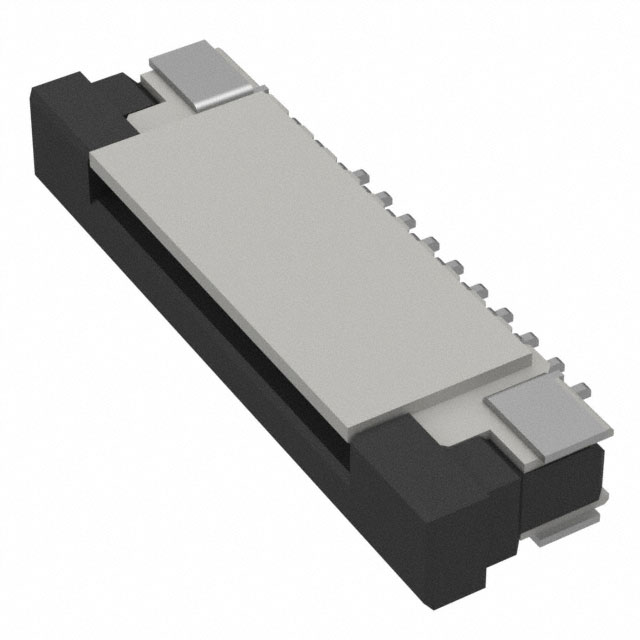

GCT FFC3B11-10-T	Black	400 mA	20	Natural	Solder Retention	0.3 mm	Thermoplastic	FFC FPC	50 V	Thermoplastic	Solder	85 °C	-25 °C	Tin	Contacts Top	10	0.098 in	2.5 mm	UL94 V-0	Tapered	1 mm	0.039 in	Phosphor Bronze	Slide Lock	Right Angle Surface Mount

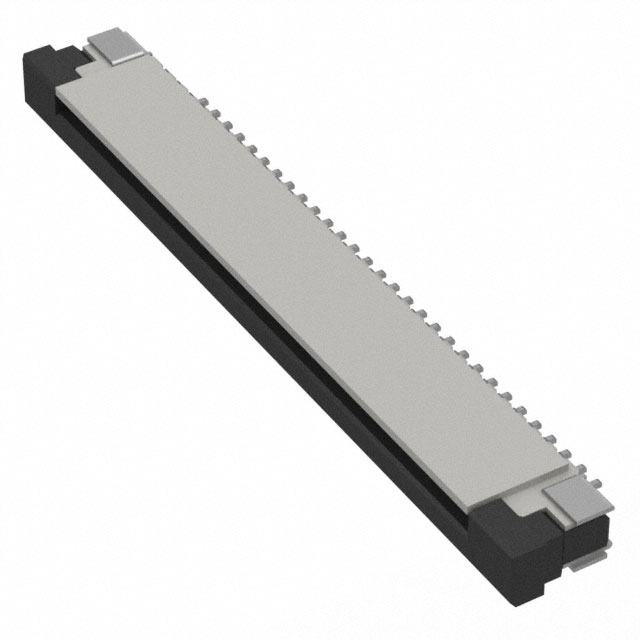

GCT FFC3B11-30-T	Black	400 mA	20	Natural	Solder Retention	0.3 mm	Thermoplastic	FFC FPC	50 V	Thermoplastic	Solder	85 °C	-25 °C	Tin	Contacts Top	30	0.098 in	2.5 mm	UL94 V-0	Tapered	1 mm	0.039 in	Phosphor Bronze	Slide Lock	Right Angle Surface Mount

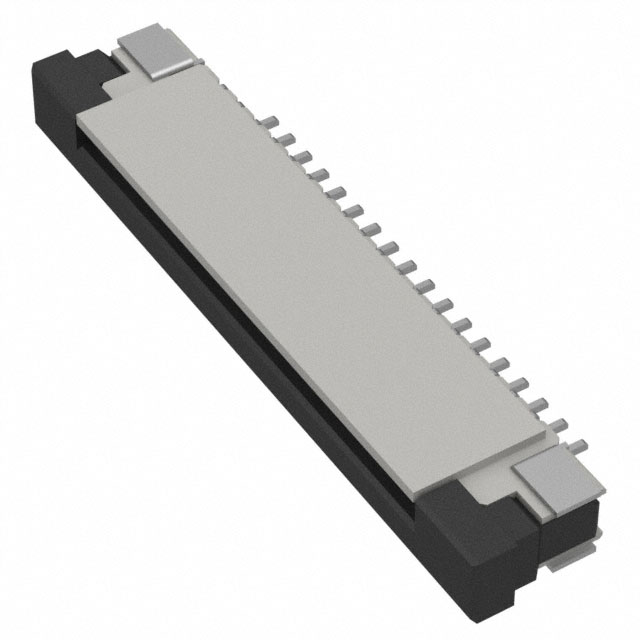

GCT FFC3B11-18-T	Black	400 mA	20	Natural	Solder Retention	0.3 mm	Thermoplastic	FFC FPC	50 V	Thermoplastic	Solder	85 °C	-25 °C	Tin	Contacts Top	18	0.098 in	2.5 mm	UL94 V-0	Tapered	1 mm	0.039 in	Phosphor Bronze	Slide Lock	Right Angle Surface Mount
