8FM-78 Series
Manufacturer: Preci-Dip
Beta
⌘K

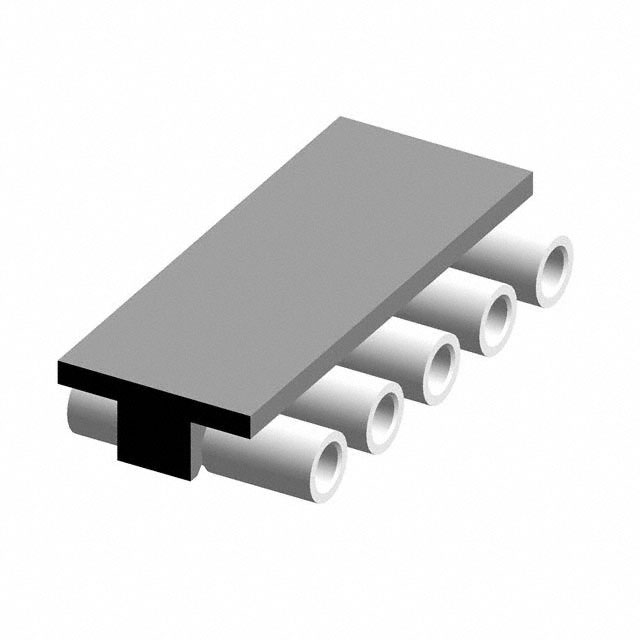

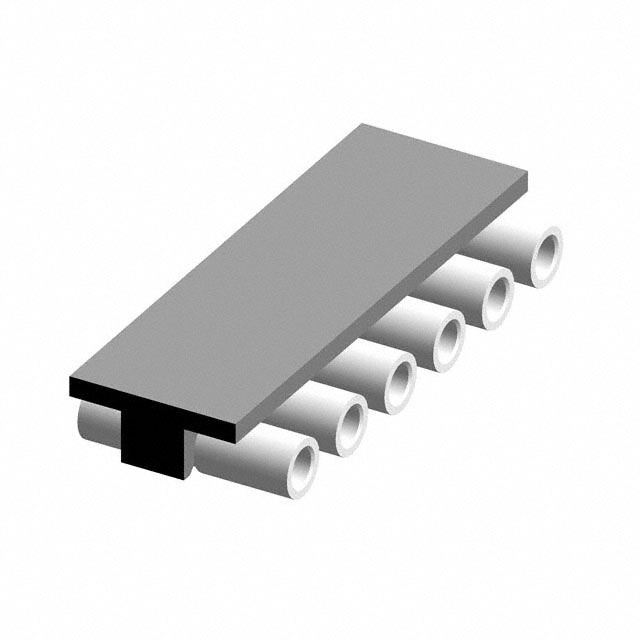

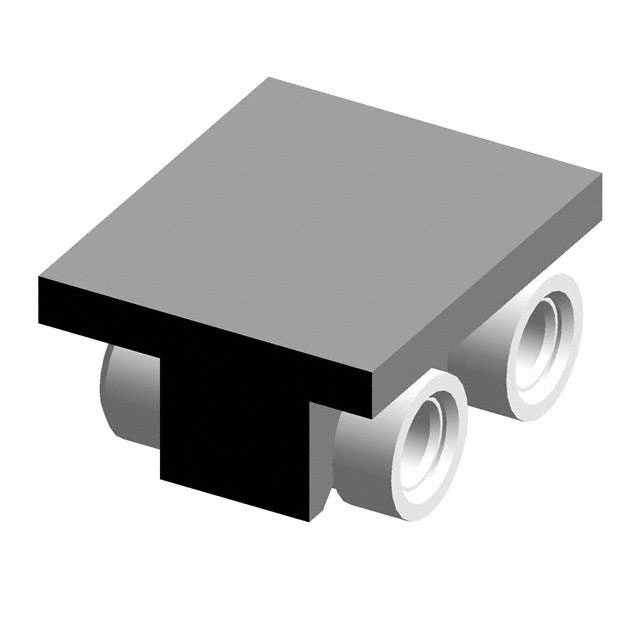

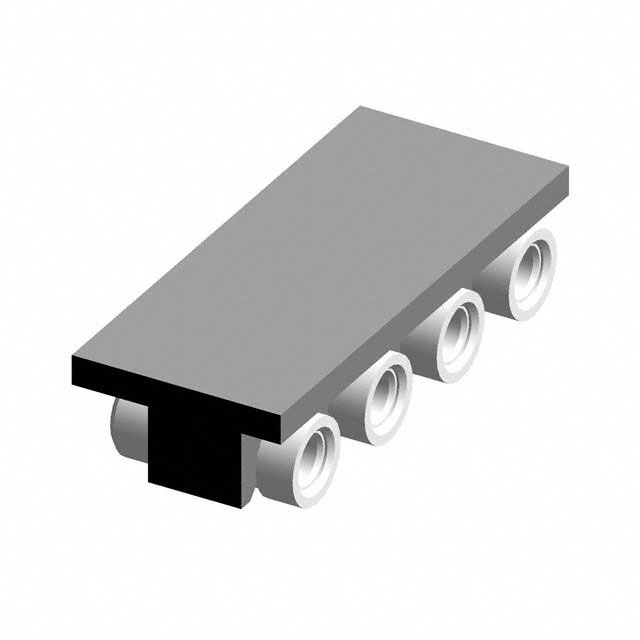

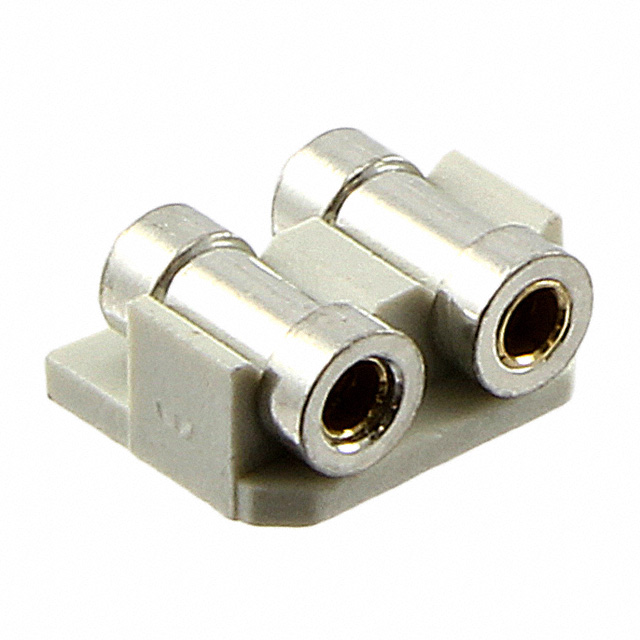

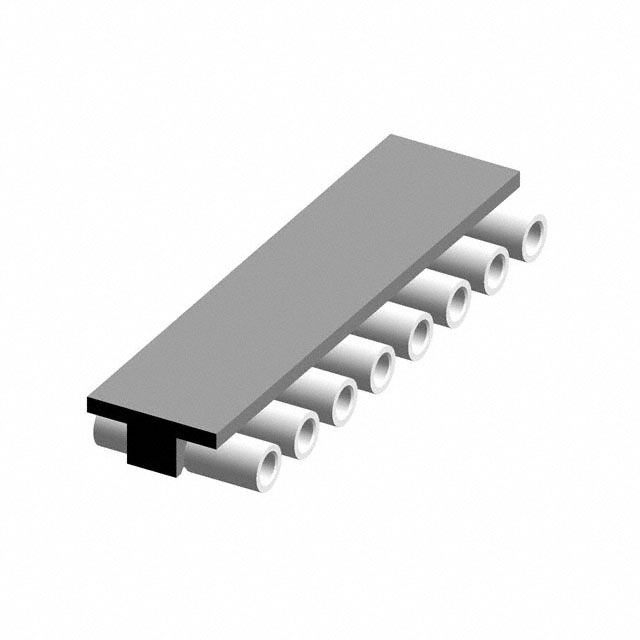

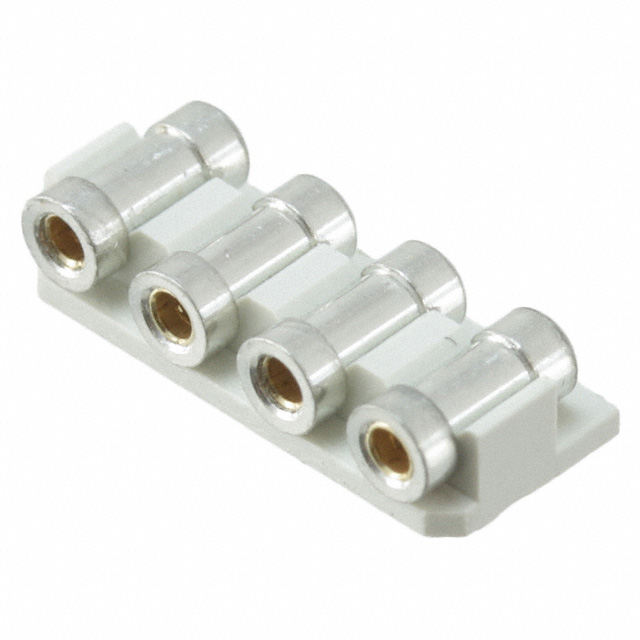

CONN SOCKET 4P 0.1 GOLD SMD R/A
| Part | Contact Shape | Contact Material | Insulation Material | Current Rating (Amps) | Contact Finish - Mating | Termination | Connector Type | Insulation Height | Insulation Height | Fastening Type | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Mounting Type | Number of Positions Loaded | Contact Finish Thickness - Mating | Number of Positions | Contact Type | Number of Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 3 A | Gold | Solder | Socket | 0.096 in | 2.44 mm | Push-Pull | Black | 0.1 " | 2.54 mm | Tin | -55 C | 125 °C | UL94 V-0 | Right Angle Surface Mount | All | Flash | 4 | Female Socket | 1 | |
 Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 3 A | Gold | Solder | Socket | 0.096 in | 2.44 mm | Push-Pull | Black | 0.1 " | 2.54 mm | Tin | -55 C | 125 °C | UL94 V-0 | Right Angle Surface Mount | All | Flash | 8 | Female Socket | 1 | |
 Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 3 A | Gold | Solder | Socket | 0.096 in | 2.44 mm | Push-Pull | Black | 0.1 " | 2.54 mm | Tin | -55 C | 125 °C | UL94 V-0 | Right Angle Surface Mount | All | Flash | 4 | Female Socket | 1 | Pick and Place |
 Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 3 A | Gold | Solder | Socket | 0.096 in | 2.44 mm | Push-Pull | Black | 0.1 " | 2.54 mm | Tin | -55 C | 125 °C | UL94 V-0 | Right Angle Surface Mount | All | Flash | 2 | Female Socket | 1 | |
 Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 3 A | Gold | Solder | Socket | 0.096 in | 2.44 mm | Push-Pull | Black | 0.1 " | 2.54 mm | Tin | -55 C | 125 °C | UL94 V-0 | Right Angle Surface Mount | All | Flash | Female Socket | 1 | Pick and Place | |
 Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 3 A | Gold | Solder | Socket | 0.096 in | 2.44 mm | Push-Pull | Black | 0.1 " | 2.54 mm | Tin | -55 C | 125 °C | UL94 V-0 | Right Angle Surface Mount | All | Flash | 10 | Female Socket | 1 | Pick and Place |
 Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 3 A | Gold | Solder | Socket | 0.096 in | 2.44 mm | Push-Pull | Black | 0.1 " | 2.54 mm | Tin | -55 C | 125 °C | UL94 V-0 | Right Angle Surface Mount | All | Flash | 9 | Female Socket | 1 | Pick and Place |
 Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 3 A | Gold | Solder | Socket | 0.096 in | 2.44 mm | Push-Pull | Black | 0.1 " | 2.54 mm | Tin | -55 C | 125 °C | UL94 V-0 | Right Angle Surface Mount | All | Flash | 5 | Female Socket | 1 | Pick and Place |
 Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 3 A | Gold | Solder | Socket | 0.096 in | 2.44 mm | Push-Pull | Black | 0.1 " | 2.54 mm | Tin | -55 C | 125 °C | UL94 V-0 | Right Angle Surface Mount | All | Flash | 2 | Female Socket | 1 | Pick and Place |
Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 3 A | Gold | Solder | Socket | 0.096 in | 2.44 mm | Push-Pull | Black | 0.1 " | 2.54 mm | Tin | -55 C | 125 °C | UL94 V-0 | Right Angle Surface Mount | All | Flash | 4 | Female Socket | 1 | Pick and Place |
