1337481 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

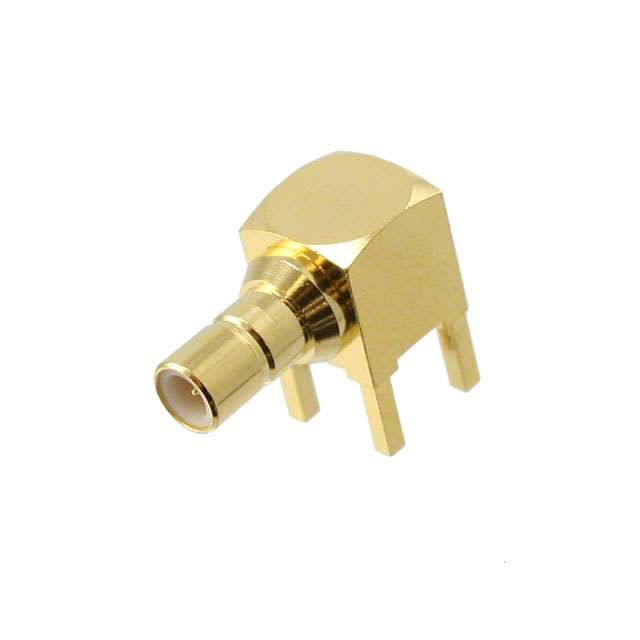

SMB R/A PCB SKT 50OHM GOLD PLT
| Part | Dielectric Material | Insertion Loss | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Voltage Rating | Center Contact Plating | Mating Cycles | Connector Type | Connector Style | Shield Termination | Number of Ports | Center Contact Material | Impedance | Frequency - Max [Max] | Housing Color | Fastening Type | Contact Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | 0.6 dB | Brass | -65 ░C | 165 °C | Gold | 250 V | Gold | 500 | Jack Male Pin | SMB | Solder | 1 | Brass | 50 Ohms | 4 GHz | Gold | Snap-On | Solder | Right Angle Through Hole |
