73305 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

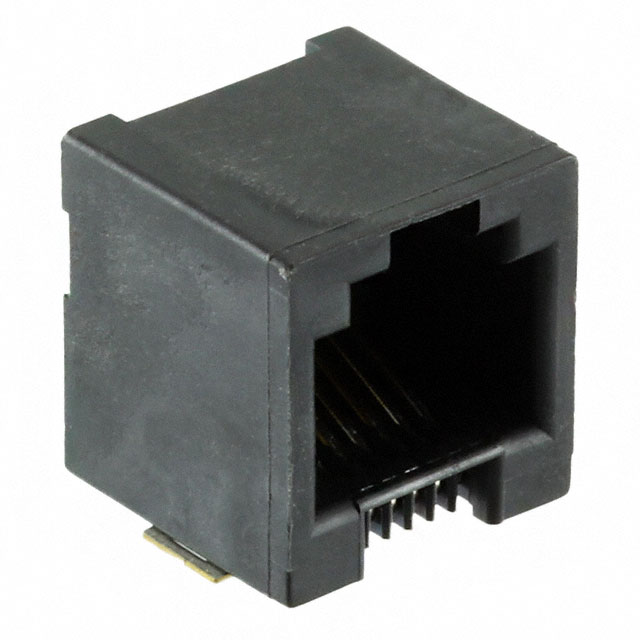

CONN MOD JACK 6P4C R/A UNSHLD
| Part | Mounting Type | Features | Termination | Number of Rows | Contact Material | Number of Positions/Contacts | Housing Material | Shielding | LED Color | Orientation | Tab Direction | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Connector Type | Number of Ports | Ratings | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Surface Mount | Solder Retention | Solder | 1 | Phosphor Bronze | 6p4c | Polyamide (PA) Nylon | Unshielded | Does Not Contain LED | 90 ° | Up | 70 °C | -25 °C | Gold GXT™ | Jack | 1 | Cat3 | 0.76 Ám | 30 Áin |
Amphenol ICC (FCI) | Surface Mount | Solder Retention | Solder | 1 | Phosphor Bronze | 6p6c (RJ11 RJ12 RJ14 RJ25) | Polyamide (PA) Nylon | Unshielded | Does Not Contain LED | 90 ° | Up | 70 °C | -25 °C | Gold GXT™ | Jack | 1 | Cat3 | 0.76 Ám | 30 Áin |
Amphenol ICC (FCI) | Surface Mount | Solder Retention | Solder | 1 | Phosphor Bronze | 6p6c (RJ11 RJ12 RJ14 RJ25) | Polycyclohexylenedimethylene Terephthalate (PCT) | Unshielded | Does Not Contain LED | 90 ° | Up | 70 °C | -25 °C | Gold GXT™ | Jack | 1 | Cat3 | 0.76 Ám | 30 Áin |
Amphenol ICC (FCI) | Surface Mount | Solder Retention | Solder | 1 | Phosphor Bronze | 6p6c (RJ11 RJ12 RJ14 RJ25) | Polycyclohexylenedimethylene Terephthalate (PCT) | Unshielded | Does Not Contain LED | 90 ° | Up | 70 °C | -25 °C | Gold | Jack | 1 | Cat3 | 0.76 Ám | 30 Áin |
Amphenol ICC (FCI) | Surface Mount | Solder Retention | Solder | 1 | Phosphor Bronze | 6p4c | Polyamide (PA) Nylon | Unshielded | Does Not Contain LED | 90 ° | Up | 70 °C | -25 °C | Gold GXT™ | Jack | 1 | Cat3 | 0.76 Ám | 30 Áin |
Amphenol ICC (FCI) | Surface Mount | Solder Retention | Solder | 1 | Phosphor Bronze | 6p6c (RJ11 RJ12 RJ14 RJ25) | Polycyclohexylenedimethylene Terephthalate (PCT) | Unshielded | Does Not Contain LED | 90 ° | Up | 70 °C | -25 °C | Gold GXT™ | Jack | 1 | Cat3 | 0.76 Ám | 30 Áin |
 Amphenol ICC (FCI) | Surface Mount | Solder Retention | Solder | 1 | Phosphor Bronze | 6p6c (RJ11 RJ12 RJ14 RJ25) | Polycyclohexylenedimethylene Terephthalate (PCT) | Unshielded | Does Not Contain LED | 90 ° | Up | 70 °C | -25 °C | Gold GXT™ | Jack | 1 | Cat3 | 0.76 Ám | 30 Áin |
