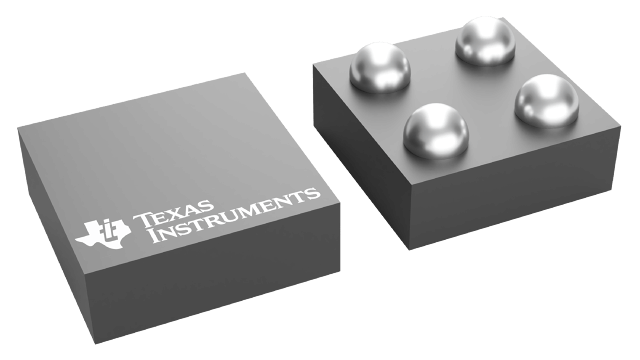

TPS7A20 Series

Catalog

LDO VOLTAGE REGULATORS 300-MA ULTRA-LOW-NOI SE LOW-IQ LOW-DROPOU

Part	Voltage Dropout (Max) [Max]	PSRR [Max]	PSRR [Min]	Package / Case	Number of Regulators	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output (Min/Fixed) [Min]	Output Configuration	Current - Quiescent (Iq)	Control Features	Current - Output	Protection Features	Voltage - Input (Max) [Max]	Current - Supply (Max) [Max]	Mounting Type	Voltage - Output (Min/Fixed)	Voltage Dropout (Max)	PSRR
Texas Instruments TPS7A20185PDQNR	0.2 V	65 dB	40 dB	4-XDFN Exposed Pad	1	4-X2SON (1x1)	-40 C	125 °C	1.85 V	Positive	15 µA	Enable	300 mA	Over Current Over Temperature Under Voltage Lockout (UVLO)	6 V	2 mA	Surface Mount
Texas Instruments TPS7A20105PDQNR	0.49 V	65 dB	40 dB	4-XDFN Exposed Pad	1	4-X2SON (1x1)	-40 C	125 °C		Positive	15 µA	Enable	300 mA	Over Current Over Temperature Under Voltage Lockout (UVLO)	6 V		Surface Mount	1.05 V
Texas Instruments TPS7A2008DQNR				4-XDFN Exposed Pad	1	4-X2SON (1x1)	-40 C	125 °C		Positive	18 µA	Enable	300 mA	Over Current Over Temperature Under Voltage Lockout (UVLO)	6 V		Surface Mount	0.8 V	0.69 V	95 dB
Texas Instruments TPS7A2009PDQNR		65 dB	40 dB	4-XDFN Exposed Pad	1	4-X2SON (1x1)	-40 C	125 °C		Positive	15 µA	Enable	300 mA	Over Current Over Temperature Under Voltage Lockout (UVLO)	6 V		Surface Mount	0.9 V	0.69 V
Texas Instruments TPS7A20285PDQNR	0.14 V	65 dB	40 dB	4-XDFN Exposed Pad	1	4-X2SON (1x1)	-40 C	125 °C		Positive	15 µA	Enable	300 mA	Over Current Over Temperature Under Voltage Lockout (UVLO)	6 V		Surface Mount	2.85 V
Texas Instruments TPS7A2028PDQNRM3	0.14 V	65 dB	40 dB	4-XDFN Exposed Pad	1	4-X2SON (1x1)	-40 C	125 °C		Positive	15 µA	Current Limit Enable Soft Start	300 mA	Over Current Over Temperature Under Voltage Lockout (UVLO)	6 V		Surface Mount	2.8 V
Texas Instruments TPS7A2009PDBVR		65 dB	40 dB	SC-74A SOT-753	1	SOT-23-5	-40 C	125 °C		Positive	15 µA	Enable Soft Start	300 mA	Over Current Over Temperature Under Voltage Lockout (UVLO)	6 V		Surface Mount	0.9 V	0.69 V
Texas Instruments TPS7A2025PDQNR	0.14 V	65 dB	40 dB	4-XDFN Exposed Pad	1	4-X2SON (1x1)	-40 C	125 °C		Positive	15 µA	Enable	300 mA	Over Current Over Temperature Under Voltage Lockout (UVLO)	6 V	2 mA	Surface Mount	2.5 V
Texas Instruments TPS7A20115PDQNR	0.49 V	95 dB	40 dB	4-XDFN Exposed Pad	1	4-X2SON (1x1)	-40 C	125 °C		Positive	8.5 µA	Enable	300 mA	Over Current Over Temperature Under Voltage Lockout (UVLO)	6 V		Surface Mount	1.15 V
Texas Instruments TPS7A2012DQNR		95 dB	40 dB	4-XDFN Exposed Pad	1	4-X2SON (1x1)	-40 C	125 °C		Positive	15 µA	Enable	300 mA	Over Current Over Temperature Under Voltage Lockout (UVLO)	6 V		Surface Mount	1.2 V	0.355 V
