MBR1010 Series

Catalog

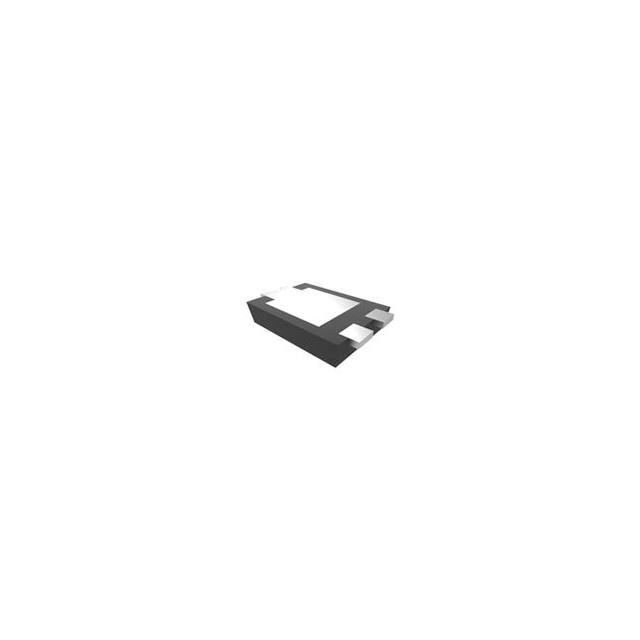

DIODE SCHOTTKY 100V 10A TO2773

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Package / Case	Speed	Current - Average Rectified (Io)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Technology	Capacitance @ Vr, F	Current - Average Rectified (Io) (per Diode)	Diode Configuration
Micro Commercial Components MBR10100ULPS-TP	100 V	Surface Mount	3-PowerDFN TO-277	200 mA 500 ns	10 A	175 ░C	-55 C	TO-277-3	500 µA	700 mV	Schottky
Micro Commercial Components MBR10100-BP	100 V	Through Hole	TO-220-2	200 mA 500 ns	10 A	150 °C	-55 °C	TO-220AC	150 µA		Schottky	400 pF
Micro Commercial Components MBR10100FCTH-BP	100 V	Through Hole	TO-220-3	200 mA 500 ns		175 ░C	-55 C	TO-220AB	10 µA	800 mV	Schottky		10 A	1 Pair Common Cathode
Micro Commercial Components MBR10100FCT-BP	100 V	Through Hole	TO-220-3 Isolated Tab	200 mA 500 ns		150 °C	-50 °C	ITO-220AB	100 µA		Schottky		10 A	1 Pair Common Cathode
