STS1 Series

Catalog

SWITCH SLIDE SPDT 300MA 125V

Part	Actuator Material	Switch Travel	Mechanical Life	Operating Force	Actuator Type	Termination Style	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Current Rating (Amps)	Contact Finish	Features	Contact Timing	Actuator Length [x]	Contact Material	Circuit	Switch Function
TE Connectivity AMP Connectors STS121PC	Polyoxymethylene (Acetal) (POM)	2.5 mm	10000 Steps	0.25 kgf	Standard	PC Pin	Through Hole	-10 °C	60 °C	125 V	300 mA	Silver	Epoxy Sealed Terminals	Shorting (MBB)	4 mm	Copper Alloy	SPDT	On-On

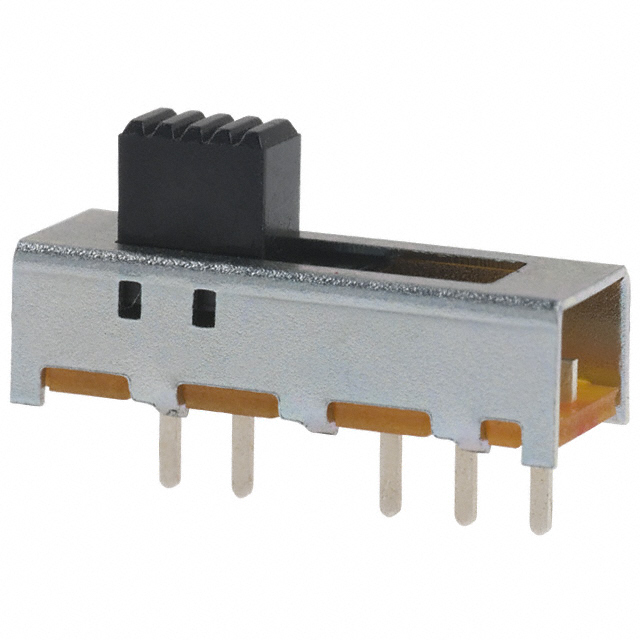

TE Connectivity AMP Connectors STS1400PC	Polyoxymethylene (Acetal) (POM)	2.5 mm	10000 Steps	0.25 kgf	Standard	PC Pin	Through Hole	-10 °C	60 °C	125 V	300 mA	Silver	Epoxy Sealed Terminals	Shorting (MBB)	4 mm	Copper Alloy	SP4T	On-On-On-On

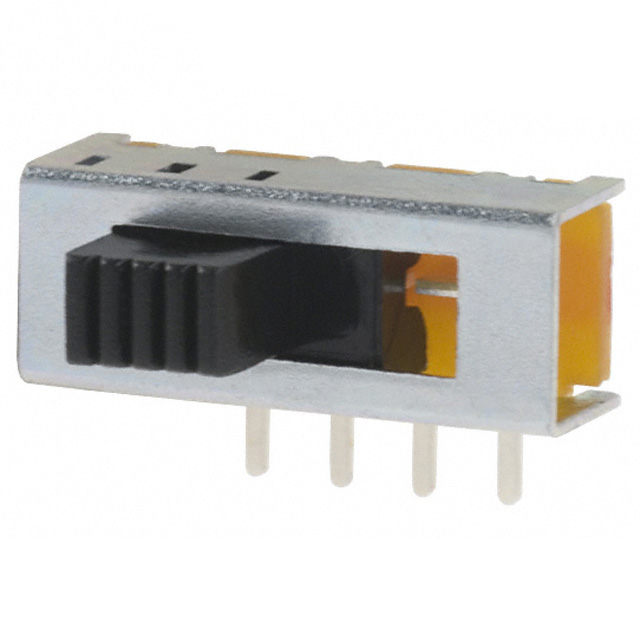

TE Connectivity AMP Connectors STS131RA	Polyoxymethylene (Acetal) (POM)	2.5 mm	10000 Steps	0.25 kgf	Standard	PC Pin	Right Angle Through Hole	-10 °C	60 °C	125 V	300 mA	Silver	Epoxy Sealed Terminals	Shorting (MBB)	4 mm	Copper Alloy	SP3T	On-On-On
TE Connectivity AMP Connectors STS121RA	Polyoxymethylene (Acetal) (POM)	2.5 mm	10000 Steps	0.25 kgf	Standard	PC Pin	Right Angle Through Hole	-10 °C	60 °C	125 V	300 mA	Silver	Epoxy Sealed Terminals	Shorting (MBB)	4 mm	Copper Alloy	SPDT	On-On

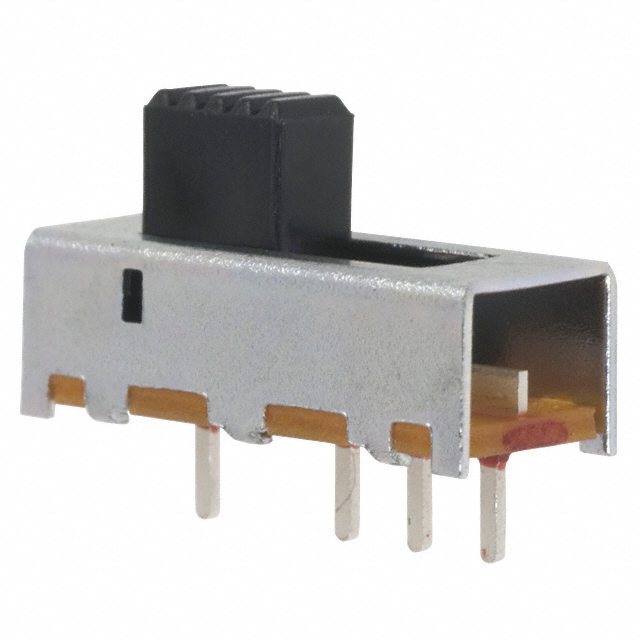

TE Connectivity AMP Connectors STS1300PC	Polyoxymethylene (Acetal) (POM)	2.5 mm	10000 Steps	0.25 kgf	Standard	PC Pin	Through Hole	-10 °C	60 °C	125 V	300 mA	Silver	Epoxy Sealed Terminals	Shorting (MBB)	4 mm	Copper Alloy	SP3T	On-On-On
