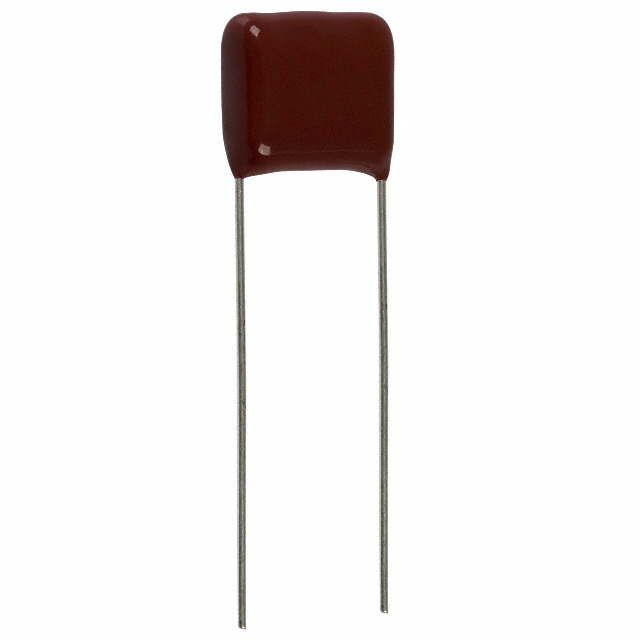

ECQ-E2474 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

±10% 250V 470NF -40℃~+105℃ METALLIZED POLYESTER FILM CAPACITORS ROHS

Part	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Mounting Type	Dielectric Material	Tolerance	Capacitance	Package / Case	Termination	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage Rating - DC	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales ECQ-E2474RKF	-40 °C	105 ░C	General Purpose	Through Hole	Polyester Metallized	10 %	0.47 µF	Radial	PC Pins	15 mm	0.591 in	0.689 in	17.5 mm	250 V	5.3 mm	0.209 in	18.5 mm	0.728 in
Panasonic Industrial Automation Sales ECQ-E2474JB	-40 °C	105 ░C	General Purpose	Through Hole	Polyester Metallized	5 %	0.47 µF	Radial	PC Pins	10 mm	0.394 in			250 V	6.2 mm	0.244 in	12.3 mm	0.484 in	12.4 mm	0.488 "
Panasonic Industrial Automation Sales ECQ-E2474RJB	-40 °C	105 ░C	General Purpose	Through Hole	Polyester Metallized	5 %	0.47 µF	Radial	PC Pins	10 mm	0.394 in			250 V	6.2 mm	0.244 in	12.3 mm	0.484 in		0.646 "	16.4 mm
Panasonic Industrial Automation Sales ECQ-E2474KB	-40 °C	105 ░C	General Purpose	Through Hole	Polyester Metallized	10 %	0.47 µF	Radial	PC Pins	10 mm	0.394 in			250 V	6.2 mm	0.244 in	12.3 mm	0.484 in	12.4 mm	0.488 "
Panasonic Industrial Automation Sales ECQ-E2474JB3	-40 °C	105 ░C	General Purpose	Through Hole	Polyester Metallized	5 %	0.47 µF	Radial	PC Pins	5 mm	0.197 in			250 V	6.2 mm	0.244 in	12.3 mm	0.484 in		0.646 "	16.4 mm
Panasonic Industrial Automation Sales ECQ-E2474JFB	-40 °C	105 ░C	General Purpose	Through Hole	Polyester Metallized	5 %	0.47 µF	Radial	PC Pins	10 mm	0.394 in	0.689 in	17.5 mm	250 V	5.3 mm	0.209 in	18.5 mm	0.728 in
Panasonic Industrial Automation Sales ECQ-E2474KF	-40 °C	105 ░C	General Purpose	Through Hole	Polyester Metallized	10 %	0.47 µF	Radial	PC Pins	15 mm	0.591 in			250 V	5.3 mm	0.209 in	18.5 mm	0.728 in		0.532 "	13.5 mm
Panasonic Industrial Automation Sales ECQ-E2474KF3	-40 °C	105 ░C	General Purpose	Through Hole	Polyester Metallized	10 %	0.47 µF	Radial	PC Pins	5 mm	0.197 in	0.689 in	17.5 mm	250 V	5.3 mm	0.209 in	18.5 mm	0.728 in
Panasonic Industrial Automation Sales ECQ-E2474JF3	-40 °C	105 ░C	General Purpose	Through Hole	Polyester Metallized	5 %	0.47 µF	Radial	PC Pins	5 mm	0.197 in	0.689 in	17.5 mm	250 V	5.3 mm	0.209 in	18.5 mm	0.728 in
Panasonic Industrial Automation Sales ECQ-E2474RJF	-40 °C	105 ░C	General Purpose	Through Hole	Polyester Metallized	5 %	0.47 µF	Radial	PC Pins	15 mm	0.591 in	0.689 in	17.5 mm	250 V	5.3 mm	0.209 in	18.5 mm	0.728 in
