XZM2CYK55 Series

Manufacturer: SunLED

Catalog

LED YELLOW CLEAR 2SMD

Part	Mounting Type	Wavelength - Peak	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Current - Test	Supplier Device Package	Lens Transparency	Package / Case	Viewing Angle	Wavelength - Dominant	Lens Style	Millicandela Rating	Height (Max) [Max] [z]	Color	Lens Size [diameter]	Configuration	Lens Color	Lens Size [x]	Lens Size [y]	Height (Max) [z]

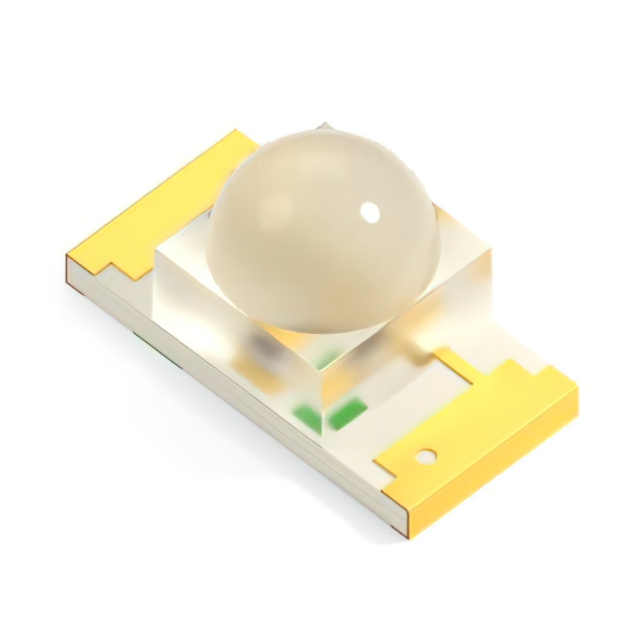

SunLED XZM2CYK55W-3	Surface Mount	590 nm	1.6 mm	3.2 mm	2 V	20 mA	2-SMD	Clear	1206 (3216 Metric)	35 °	590 nm	Round with Domed Top	1690 mcd	1.8 mm	Yellow	1.6 mm	Standard	Colorless

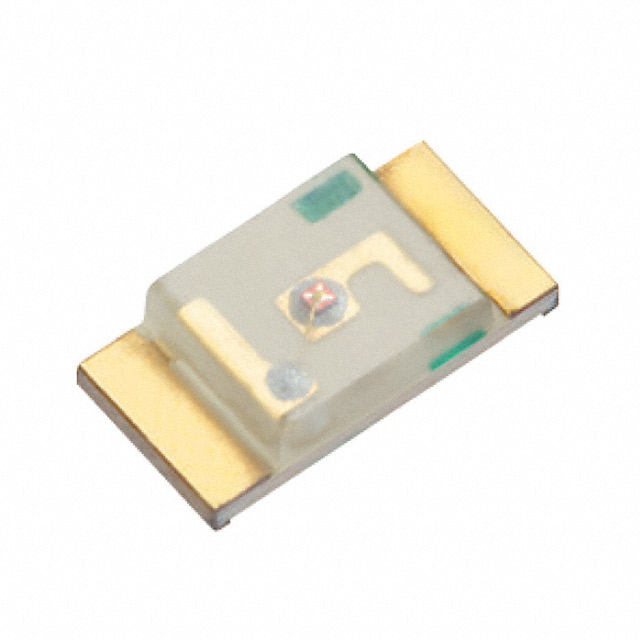

SunLED XZM2CYK55W-1	Surface Mount	590 nm	1.6 mm	3.2 mm	2 V	20 mA	2-SMD	Clear	1206 (3216 Metric)	120 °	590 nm	Rectangle with Flat Top	317 mcd		Yellow		Standard	Colorless	1.9 mm	1.6 mm

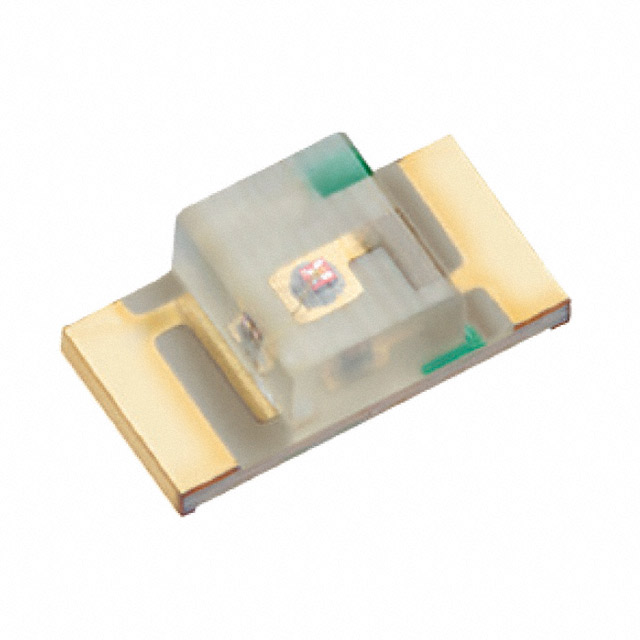

SunLED XZM2CYK55W-2	Surface Mount Bottom Entry	590 nm	1.6 mm	3.2 mm	2 V	20 mA	2-SMD	Clear	1206 (3216 Metric)	120 °	590 nm	Rectangle with Flat Top	317 mcd		Yellow		Standard	Colorless	1.4 mm	1.6 mm	1.05 mm
