32 Series

Catalog

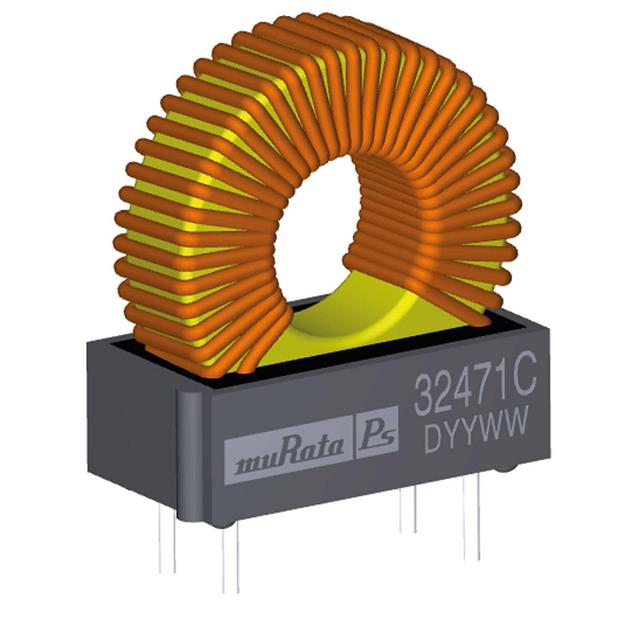

TOROIDAL INDUCTOR, VERTICAL, 3200 SERIES, 33 µH, 2.5 A, 0.036 OHM, ± 15%

Part	Tolerance	Mounting Type	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current Rating (Amps)	Q @ Freq [custom]	Q @ Freq [custom]	Shielding	DC Resistance (DCR) [Max]	Package / Case	Frequency - Self Resonant	Operating Temperature [Max]	Operating Temperature [Min]	Inductance Frequency - Test	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Type	Q @ Freq	DC Resistance (DCR)
Murata Electronics 32330C	15 %	Through Hole	33 µH	0.945 "	24 mm	2.5 A	3.2	1 MHz	Unshielded	36 mOhm	Radial Vertical 4 Leads (Open)	28 MHz	125 °C	-40 C	1 MHz	0.394 in	10 mm	0.846 in	21.5 mm	Toroidal
Murata Electronics 32221C	15 %	Through Hole	220 µH	0.945 "	24 mm	960 mA			Unshielded	141 mOhm	Radial Vertical 4 Leads (Open)	2.8 MHz	125 °C	-40 C	800 kHz	0.394 in	10 mm	0.846 in	21.5 mm	Toroidal	3.3 800 kHz
Murata Electronics 32151C	15 %	Through Hole	150 µH	0.945 "	24 mm	1.2 A			Unshielded	117 mOhm	Radial Vertical 4 Leads (Open)	3.3 MHz	125 °C	-40 C	800 kHz	0.394 in	10 mm	0.846 in	21.5 mm	Toroidal	3.3 800 kHz
Murata Electronics 32102C	15 %	Through Hole	1 mH	0.945 "	24 mm	0.45 A			Unshielded	568 mOhm	Radial Vertical 4 Leads (Open)	1 MHz	125 °C	-40 C	800 kHz	0.394 in	10 mm	0.846 in	21.5 mm	Toroidal	1.2 800 kHz
Murata Electronics 32331C	15 %	Through Hole	330 µH	0.945 "	24 mm	780 mA			Unshielded	215 mOhm	Radial Vertical 4 Leads (Open)	2.3 MHz	125 °C	-40 C	800 kHz	0.394 in	10 mm	0.846 in	21.5 mm	Toroidal	3.2 800 kHz
Murata Electronics 32150C	15 %	Through Hole	15 µH	0.945 "	24 mm	3.7 A			Unshielded		Radial Vertical 4 Leads (Open)	53 MHz	125 °C	-40 C	1 MHz	0.394 in	10 mm	0.846 in	21.5 mm	Toroidal	1 MHz 3.1	24 mOhm
Murata Electronics 32470C	15 %	Through Hole	47 µH	0.945 "	24 mm	2.1 A			Unshielded	42 mOhm	Radial Vertical 4 Leads (Open)	21 MHz	125 °C	-40 C	1 MHz	0.394 in	10 mm	0.846 in	21.5 mm	Toroidal	1 MHz 3.1
Murata Electronics 32101C	15 %	Through Hole	100 µH	0.945 "	24 mm	1.4 A			Unshielded	77 mOhm	Radial Vertical 4 Leads (Open)	5.3 MHz	125 °C	-40 C	800 kHz	0.394 in	10 mm	0.846 in	21.5 mm	Toroidal	3.5 800 kHz
Murata Electronics 32471C	15 %	Through Hole	470 µH	0.945 "	24 mm	660 mA			Unshielded	312 mOhm	Radial Vertical 4 Leads (Open)	1.6 MHz	125 °C	-40 C	800 kHz	0.394 in	10 mm	0.846 in	21.5 mm	Toroidal	2.8
Murata Electronics 32680C	15 %	Through Hole	68 µH	0.945 "	24 mm	1.7 A			Unshielded		Radial Vertical 4 Leads (Open)	11 MHz	125 °C	-40 C	1 MHz	0.394 in	10 mm	0.846 in	21.5 mm	Toroidal	1 MHz 3.1	62 mOhm
