S24B-PHD Series

Catalog

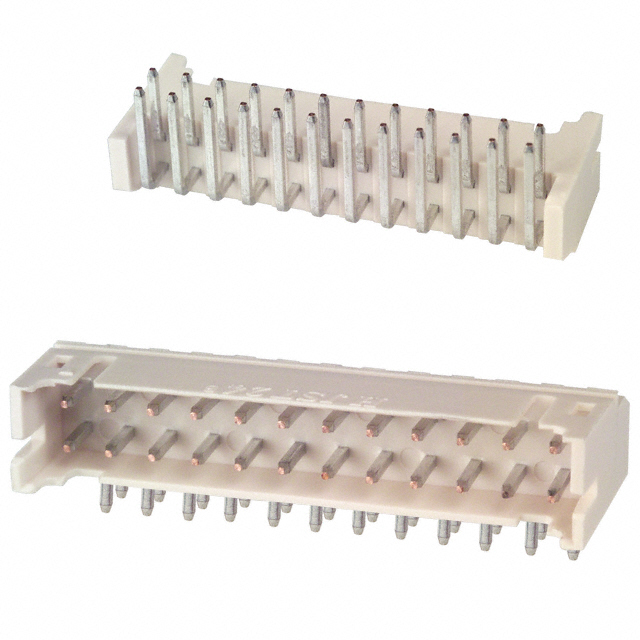

CONN HEADER R/A 24POS 2MM

Part	Fastening Type	Insulation Color	Contact Material	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Number of Rows [custom]	Number of Positions	Number of Positions Loaded	Shrouding	Connector Type	Mounting Type	Contact Shape	Termination	Current Rating (Amps)	Style	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Voltage Rating	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Material Flammability Rating
JST Sales America Inc. S24B-PHDSS	Detent Lock	Natural	Copper Alloy	Glass Filled Nylon Polyamide (PA)	2 mm	0.079 in	2	24	All	Shrouded - 4 Wall	Header	Right Angle Through Hole	Square	Solder	3 A	Board to Cable/Wire	Male Pin	85 °C	-25 °C	0.118 in	3 mm	2.9 mm	0.114 in	Tin	250 V	0.079 "	2 mm	0.197 "	5 mm	UL94 V-0
