LW3125 Series

Catalog

SWITCH ROCKER DPDT 10A 125V

Part	Electrical Life	Mechanical Life	Termination Style	Switch Function	Voltage Rating - DC	Actuator Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Illumination Voltage (Nominal)	Current Rating (Amps)	Color - Actuator/Cap	Mounting Type	Circuit	Approval Agency	Voltage Rating - AC	Actuator Marking	Illumination Type, Color	Operating Temperature [Min]	Operating Temperature [Max]
NKK Switches LW3125-N4DB-A	10000 Cycles	30000 Steps	Solder Lug	On-Mom	30 V	Concave (Standard V) - Illuminated	32 mm	19.8 mm	110 VAC	6 A 10 A	Clear	Panel Mount Snap-In	DPDT	CSA UL	125 V	No Marking	Amber/White Neon	-20 ░C	50 °C
NKK Switches LW3125-K4CF-A	10000 Cycles	30000 Steps	Solder Lug	On-Mom	30 V	Concave (Standard V) - Illuminated	32 mm	19.8 mm	24 VAC	6 A 10 A	Clear (Red Green Filter/Diffuser)	Panel Mount Snap-In	DPDT	CSA UL	125 V	No Marking	Green/Red Incandescent	-20 ░C	50 °C
NKK Switches LW3125/CUL-0100-A	10000 Cycles	30000 Steps	Solder Lug	On-Mom		Concave	32 mm	19.8 mm		10 A	White	Panel Mount Snap-In	DPDT	CSA UL	125 V	No Marking		-20 ░C	50 °C
NKK Switches LW3125/U-0100-A	10000 Cycles	30000 Steps	Solder Lug	On-Mom		Concave	32 mm	19.8 mm		10 A	White	Panel Mount Snap-In	DPDT	CSA UL	125 V	No Marking		-20 ░C	50 °C

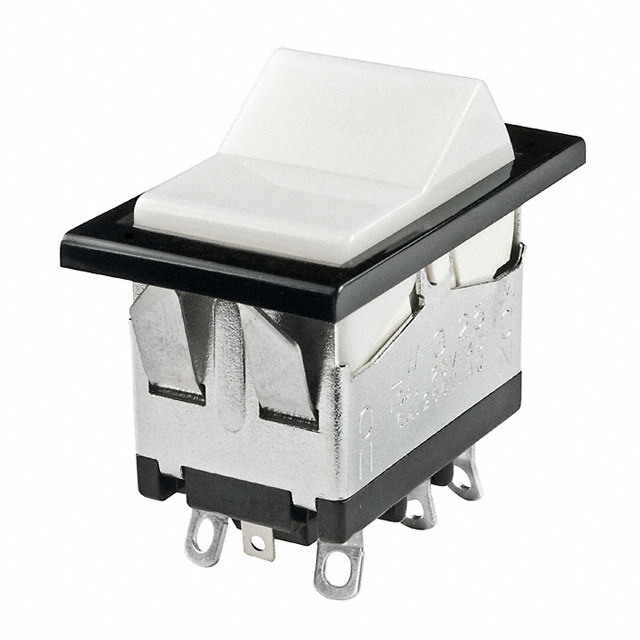

NKK Switches LW3125-0100-A	10000 Cycles	30000 Steps	Solder Lug	On-Mom	30 V	Concave	32 mm	19.8 mm		6 A 10 A	White	Panel Mount Snap-In	DPDT	CSA UL	125 V	No Marking		-20 ░C	50 °C
NKK Switches LW3125-F4FC-A	10000 Cycles	30000 Steps	Solder Lug	On-Mom	30 V	Concave (Standard V) - Illuminated	32 mm	19.8 mm	12 VAC	6 A 10 A	Clear (Red Green Filter/Diffuser)	Panel Mount Snap-In	DPDT	CSA UL	125 V	No Marking	Green/Red Incandescent	-20 ░C	50 °C
