ASMT-MB00 Series
Manufacturer: Broadcom Limited
Beta
⌘K

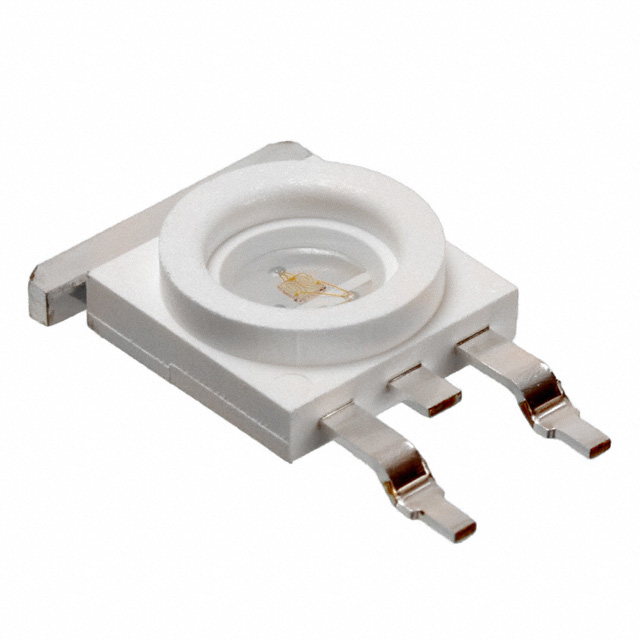

LED MOONSTONE BLUE 470NM
| Part | Thermal Resistance of Package | Lumens/Watt @ Current - Test | Wavelength | Wavelength [Max] | Wavelength [Min] | Luminous Flux @ Current/Temperature [Max] | Luminous Flux @ Current/Temperature | Luminous Flux @ Current/Temperature [Min] | Current - Test | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Forward (Vf) (Typ) | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) | Mounting Type | Current - Max [Max] | Temperature - Test | Color | Viewing Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 10 °C/W | 15 lm/W | 470 nm | 480 nm | 460 nm | 26 lm | 19 lm | 12 lm | 350 mA | 8.5 mm | 0.335 " | 0.335 in | 8.5 mm | 3.6 V | DPAK (2 Leads + Tab) SC-63 TO-252-3 | 0.134 in | 3.4 mm | Surface Mount | 350 mA | 25 °C | Blue | 120 ° |
