073251 Series
Manufacturer: Molex
Beta
⌘K

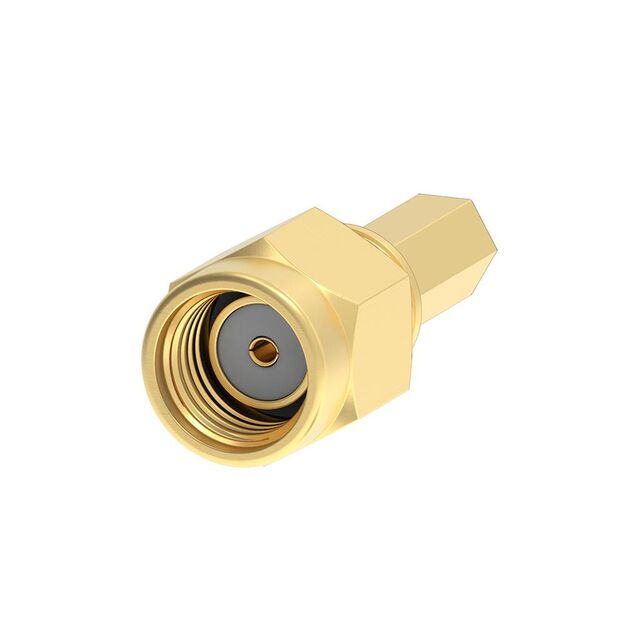

SMA PLUG STR REV POL 50 OHMS RD3
| Part | Voltage Rating | Body Material | Dielectric Material | Impedance | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Material | Body Finish | Mating Cycles | Connector Style | Number of Ports | Connector Type | Shield Termination | Housing Color | Mounting Type | Contact Termination | Includes | Center Contact Plating | Frequency - Max [Max] | Mounting Feature | Cable Group | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | ||||||||||||||||||||||

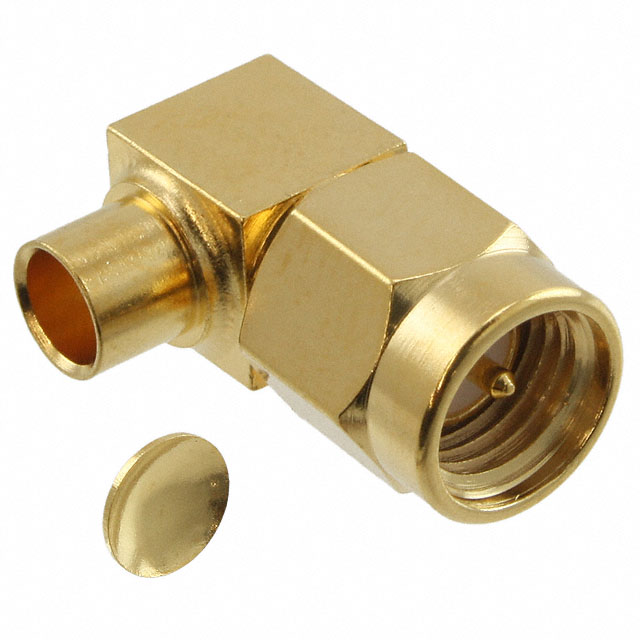

 Molex | 500 V | Brass | Polytetrafluoroethylene (PTFE) | 50 Ohms | -65 ░C | 165 °C | Beryllium Copper | Gold | 500 | SMA | 1 | Male Pin Plug | Solder | Gold | Free Hanging (In-Line) Right Angle | Solder | 1 Connector 1 End Cap | Gold | 18 GHz | |||
 Molex | 500 V | Brass | Polytetrafluoroethylene (PTFE) | 50 Ohms | -65 ░C | 165 °C | Beryllium Copper | Gold | 500 | SMA | 1 | Female Socket Jack | Solder | Gold | Board Edge End Launch Panel Mount | Solder | Gold | 18 GHz | Bulkhead - Front Side Nut | |||
Molex | 500 V | Brass | Polytetrafluoroethylene (PTFE) | 50 Ohms | -65 ░C | 165 °C | Brass | Gold | 500 | RP-SMA | 1 | Jack Male Pin | Solder | Gold | Board Edge End Launch | Solder | Gold | 18 GHz | ||||

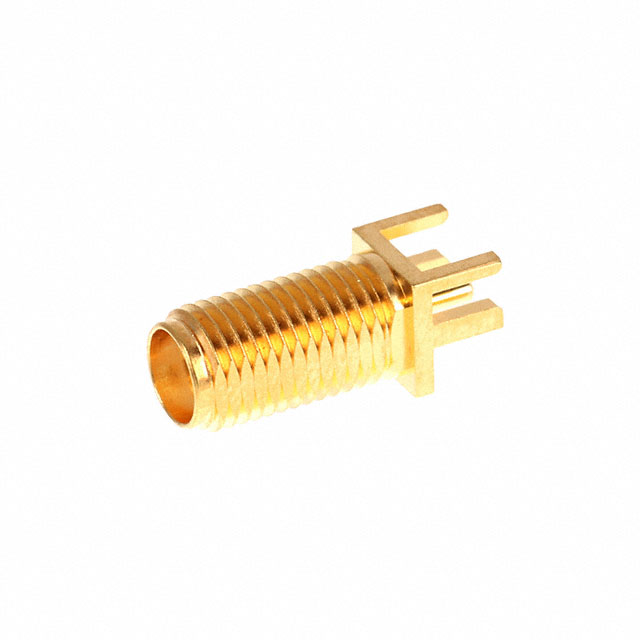

 Molex | SMA | 1 | Female Socket Jack | Solder | Panel Mount Through Hole | Solder | Bulkhead | |||||||||||||||

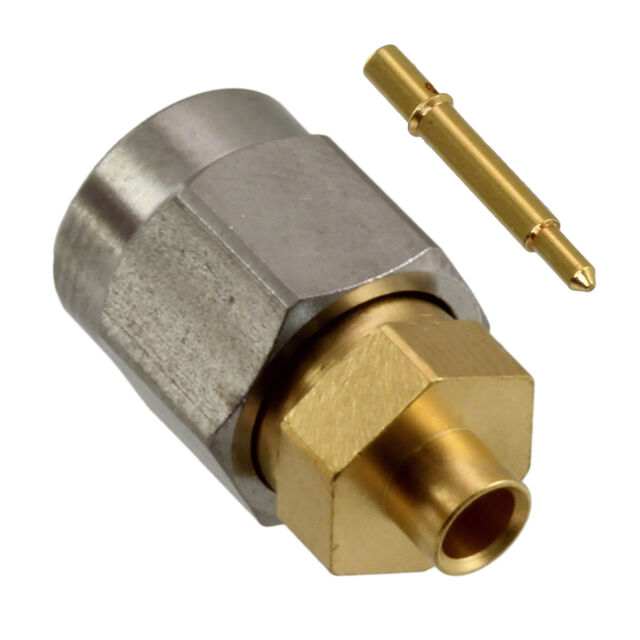

 Molex | 500 V | Stainless Steel | Polytetrafluoroethylene (PTFE) | 50 Ohms | -65 ░C | 165 °C | Brass | Gold | 500 | SMA | 1 | Male Pin Plug | Solder | Gold | Free Hanging (In-Line) | Solder | Gold | 18 GHz | RG-405 (.085" Semi Rigid) | |||
 Molex | ||||||||||||||||||||||

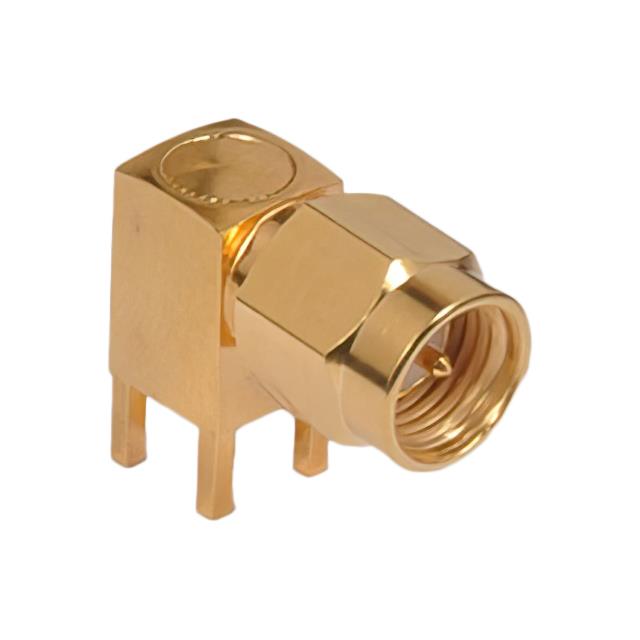

 Molex | 500 V | Brass | Polytetrafluoroethylene (PTFE) | 50 Ohms | Brass | Gold | SMA | 1 | Male Pin Plug | Solder | Gold | Through Hole Right Angle | Solder | Gold | 18 GHz | |||||||
Molex | 50 Ohms | SMA | Female Socket Jack | IP67 - Dust Tight Waterproof | ||||||||||||||||||
Molex | 500 V | Brass | Polytetrafluoroethylene (PTFE) | 50 Ohms | Brass | Gold | SMA | 1 | Female Socket Jack | Solder | Gold | Through Hole | Solder | Gold | 18 GHz |
