JSM07011 Series
Manufacturer: Littelfuse/Commercial Vehicle Products
Beta
⌘K

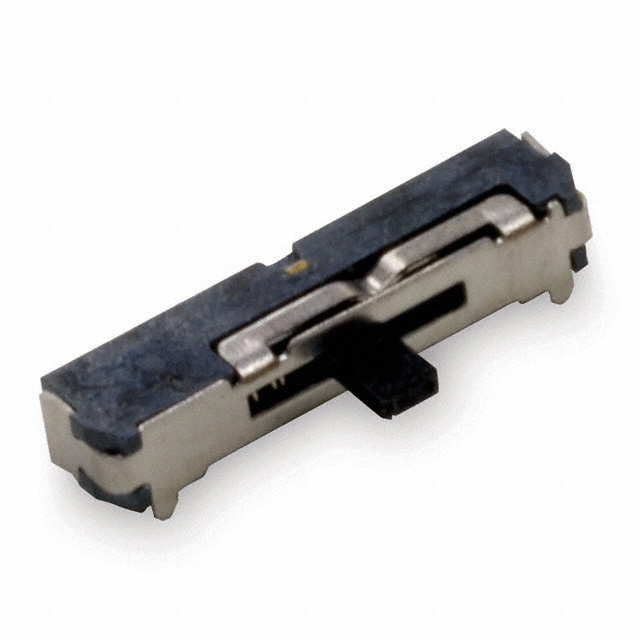

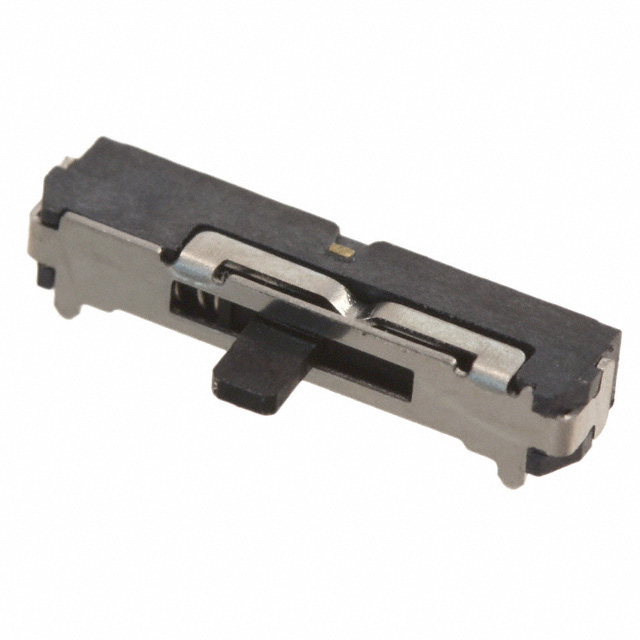

SWITCH SLIDE ON ON MOM SP3T SIDE SLIDE 0.3A 4VDC GULL WING SMD T/R
| Part | Switch Travel | Electrical Life | Contact Finish | Switch Function | Termination Style | Mounting Type | Actuator Length [x] | Contact Material | Circuit | Actuator Material | Current Rating (Amps) | Contact Timing | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | 2 mm | 10000 Cycles | Silver | On-On-Mom | Gull Wing | Surface Mount Right Angle | 2 mm | Beryllium Copper | SP3T | Nylon 4/6 Polyamide (PA46) | 300 mA | Not Specified | Standard | -30 ░C | 85 °C |
 Littelfuse/Commercial Vehicle Products | 2 mm | 10000 Cycles | Silver | On-On-Mom | Gull Wing | Surface Mount Right Angle | 2 mm | Beryllium Copper | SP3T | Nylon 4/6 Polyamide (PA46) | 300 mA | Not Specified | Standard | -30 ░C | 85 °C |
