SH14 Series

Catalog

PCB-PLUG WSCREW FLANGE 508MMPS14

Part	Number of Levels	Operating Temperature	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Contact Mating Finish	Current - UL	Color	Type	Termination Style	Mounting Type	Plug Wire Entry Angle	Pitch	Current - IEC	Wire Gauge or Range - mm²	Number of Positions	Features	Voltage - UL	Voltage - IEC	Positions Per Level	Operating Temperature (Min)	Operating Temperature (Max)	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)	Contact Material	Torque - Screw	Housing Material	Wire Strip Length	Screw Size	Material Flammability Rating
Altech Corporation SH14-5,08-K	1	105 °C	30 AWG	14 AWG	Nickel	12 A	Green	Female Sockets Plug	Screw - Rising Cage Clamp	Free Hanging (In-Line)	180 °	5.08 mm	16 A	4 mm²	14	Retention Latches (Non-Wire Side)	300 V	450 V	14
Altech Corporation SH14-5,08	1	105 °C	30 AWG	14 AWG	Nickel	12 A	Green	Female Sockets Plug	Screw - Rising Cage Clamp	Free Hanging (In-Line)	180 °	5.08 mm	16 A	4 mm²	14	Retention Latches (Non-Wire Side)	300 V	450 V	14
Altech Corporation SH14-5,00	1	105 °C	30 AWG	14 AWG	Nickel	12 A	Green	Female Sockets Plug	Screw - Rising Cage Clamp	Free Hanging (In-Line)	180 °	0.197 in	16 A	4 mm²	14	Retention Latches (Non-Wire Side)	300 V	450 V	14
Altech Corporation SH14-3,81	1	105 °C	30 AWG	16 AWG	Tin	8 A	Green	Female Sockets Plug	Screw - Rising Cage Clamp	Free Hanging (In-Line)	180 °	0.15 in	8 A	1.5 mm²	14		300 V	130 V	14
Altech Corporation SH14-7,50	1	105 °C	30 AWG	14 AWG	Nickel	12 A	Green	Female Sockets Plug	Screw - Rising Cage Clamp	Free Hanging (In-Line)	180 °	0.295 in	16 A	4 mm²	14	Retention Latches (Non-Wire Side)	300 V	750 V	14
Altech Corporation SH14-3,81-K	1		30 AWG	14 AWG	Nickel	11 A	Green	Female Sockets Plug	Screw - Rising Cage Clamp	Free Hanging (In-Line)	180 °	0.15 in	8 A		14	Mating Flange	300 V	160 V	14	-30 °C	105 °C	1.5 mm²	0.25 mm²

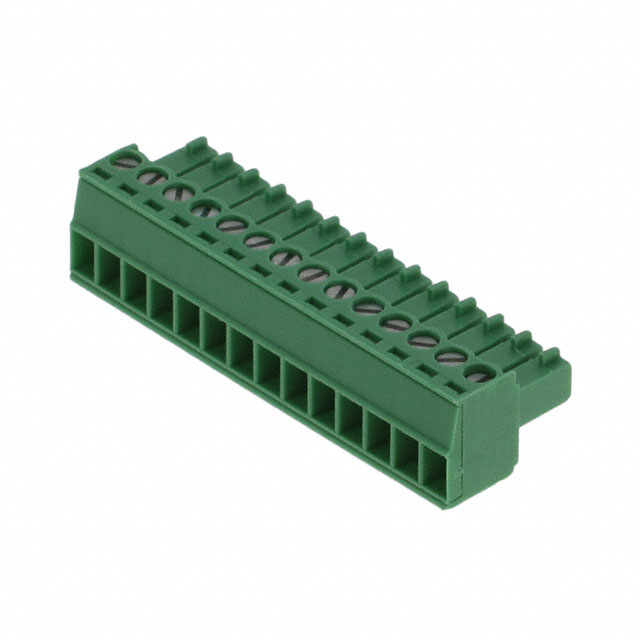

Altech Corporation SH14-3,50	1		30 AWG	14 AWG	Nickel	11 A	Green	Female Sockets Plug	Screw - Rising Cage Clamp	Free Hanging (In-Line)	180 °	0.138 in	8 A		14		300 V	130 V	14	-30 °C	105 °C	1.5 mm²	0.25 mm²	Copper Alloy	0.25 Nm	Nylon PA Polyamide	8 mm	M2	UL94 V-0
Altech Corporation SH14-3,50-K	1		30 AWG	14 AWG	Nickel	11 A	Green	Female Sockets Plug	Screw	Free Hanging (In-Line)	180 °	0.138 in	8 A		14		300 V	130 V	14	-30 °C	105 °C	1.5 mm²	0.25 mm²
Altech Corporation SH14-5,08IA
