NPPC281 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

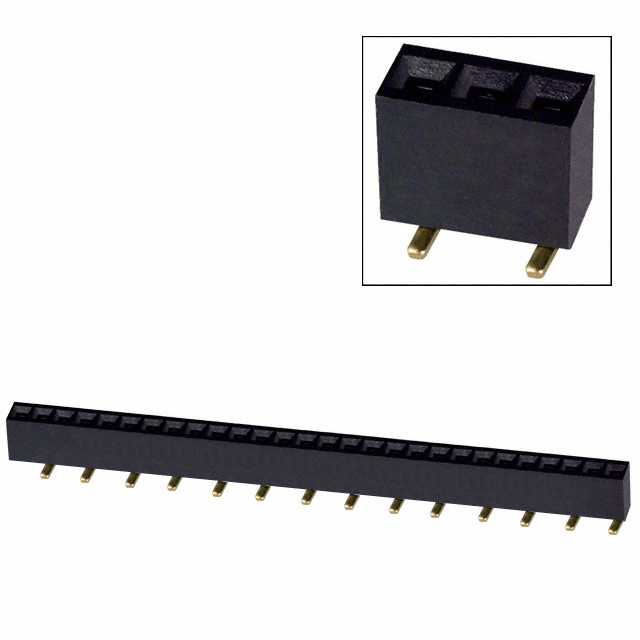

CONN HDR 28POS 0.1 GOLD SMD
| Part | Contact Finish Thickness - Post | Contact Shape | Contact Material | Insulation Material | Contact Type | Termination | Contact Finish - Post | Number of Positions | Current Rating (Amps) | Number of Positions Loaded | Number of Rows | Connector Type | Contact Finish - Mating | Contact Finish Thickness - Mating | Fastening Type | Insulation Color | Mounting Type | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Insulation Height | Insulation Height | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Flash | Square | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Female Socket | Solder | Gold | 28 | 3 A | All | 1 | Header Top or Bottom Entry | Gold | Flash | Push-Pull | Black | Surface Mount | 0.1 " | 2.54 mm | -40 C | 105 ░C | 250 V | 0.28 in | 7.1 mm | UL94 V-0 |
 Sullins Connector Solutions | Flash | Square | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Female Socket | Solder | Gold | 28 | 3 A | All | 1 | Header Top or Bottom Entry | Gold | Flash | Push-Pull | Surface Mount | 0.1 " | 2.54 mm | -40 C | 105 ░C | 250 V | 0.28 in | 7.1 mm | UL94 V-0 |
