PRPC036 Series
Manufacturer: Sullins Connector Solutions
Catalog
CONN HEADER VERT 36POS 2.54MM
| Part | Material Flammability Rating | Number of Positions | Number of Rows | Shrouding | Termination | Contact Finish Thickness - Mating | Insulation Height [z] | Insulation Height [z] | Insulation Color | Style | Fastening Type | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish Thickness - Post | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Contact Material | Contact Shape | Mounting Type | Contact Type | Contact Finish - Post | Insulation Material | Connector Type | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Overall Contact Length | Overall Contact Length | Contact Length - Mating [x] | Contact Length - Mating [x] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Length - Post | Contact Length - Post | Overall Contact Length | Insulation Height | Insulation Height | Contact Length - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

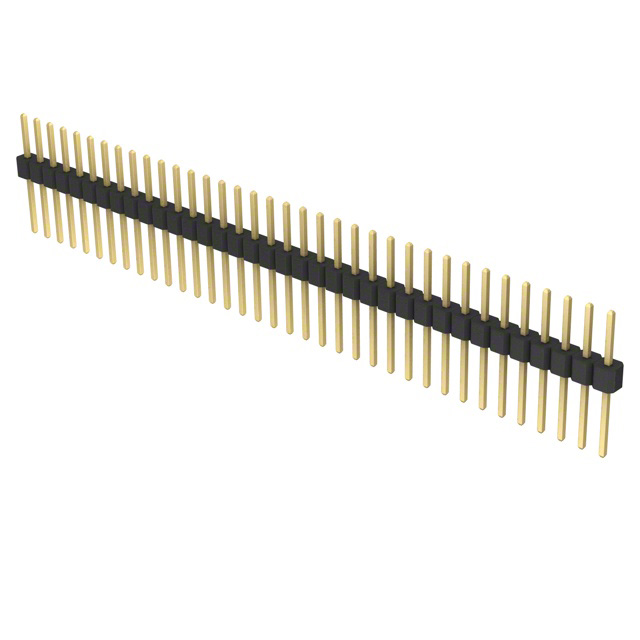

 Sullins Connector Solutions | UL94 V-0 | 36 | 1 | Unshrouded | Solder | Flash | 0.098 in | 2.5 mm | Black | Board to Board Cable | Push-Pull | 0.12 in | 3.05 mm | Flash | 3 A | -40 °C | 105 ░C | Gold | Brass | Square | Through Hole | Male Pin | Gold | Polybutylene Terephthalate (PBT) | Breakaway Header | All | 0.1 in | 2.54 mm | 13.63 mm | 0.537 " | 0.318 " | 8.08 mm | ||||||||

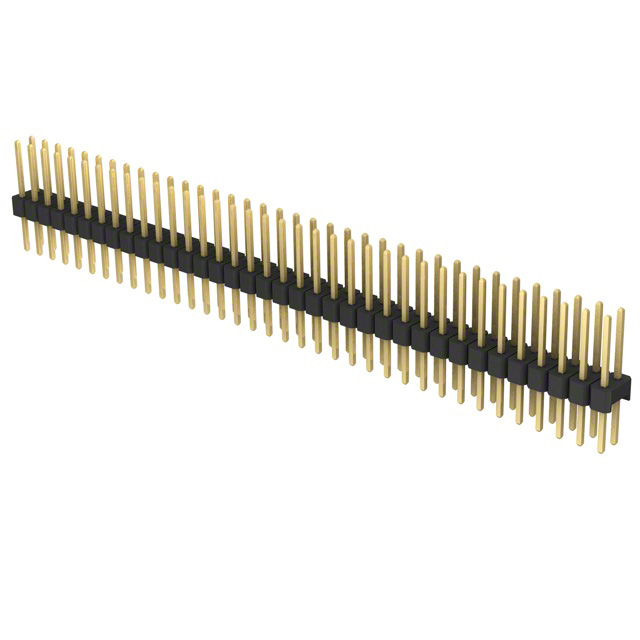

 Sullins Connector Solutions | UL94 V-0 | 72 | 2 | Unshrouded | Solder | Flash | 0.098 in | 2.5 mm | Black | Board to Board Cable | Push-Pull | Flash | 3 A | -40 °C | 105 ░C | Gold | Brass | Square | Through Hole | Male Pin | Gold | Polybutylene Terephthalate (PBT) | Breakaway Header | All | 0.1 in | 2.54 mm | 16.17 mm | 0.318 " | 8.08 mm | 2.54 mm | 0.1 in | 0.22 in | 5.58 mm | 0.637 in | ||||||

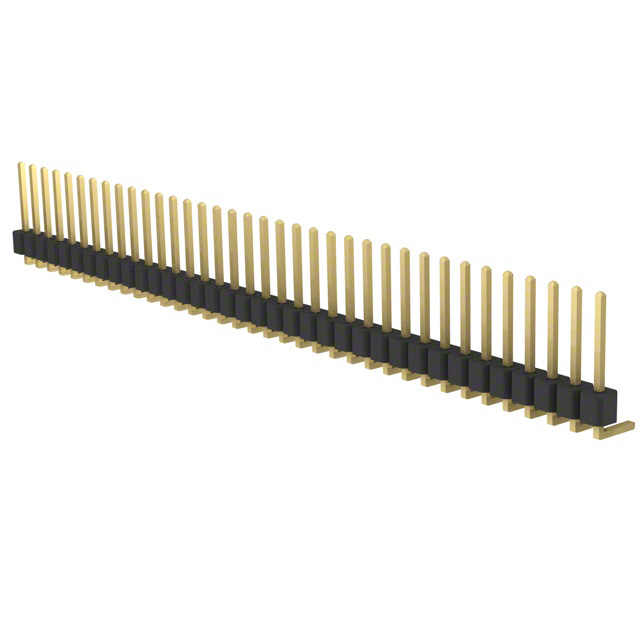

 Sullins Connector Solutions | UL94 V-0 | 36 | 1 | Unshrouded | Solder | Flash | 0.098 in | 2.5 mm | Black | Board to Board Cable | Push-Pull | 0.12 in | 3.05 mm | Flash | 3 A | -40 °C | 105 ░C | Gold | Brass | Square | Through Hole Right Angle | Male Pin | Gold | Polybutylene Terephthalate (PBT) | Breakaway Header | All | 0.1 in | 2.54 mm | 0.318 " | 8.08 mm | ||||||||||

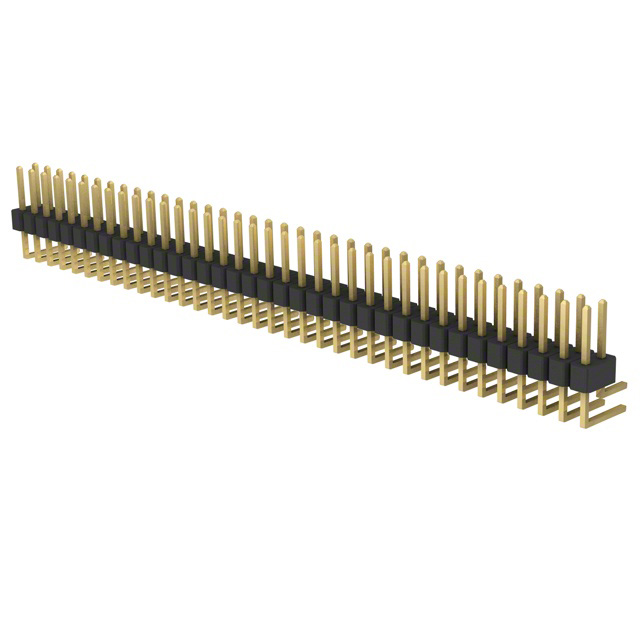

 Sullins Connector Solutions | UL94 V-0 | 72 | 2 | Unshrouded | Solder | Flash | Black | Board to Board Cable | Push-Pull | 0.12 in | 3.05 mm | Flash | 3 A | -40 °C | 105 ░C | Gold | Brass | Square | Through Hole Right Angle | Male Pin | Gold | Polybutylene Terephthalate (PBT) | Breakaway Header | All | 0.1 in | 2.54 mm | 0.23 in | 2.54 mm | 0.1 in | 0.197 in | 5 mm | 5.84 mm | ||||||||

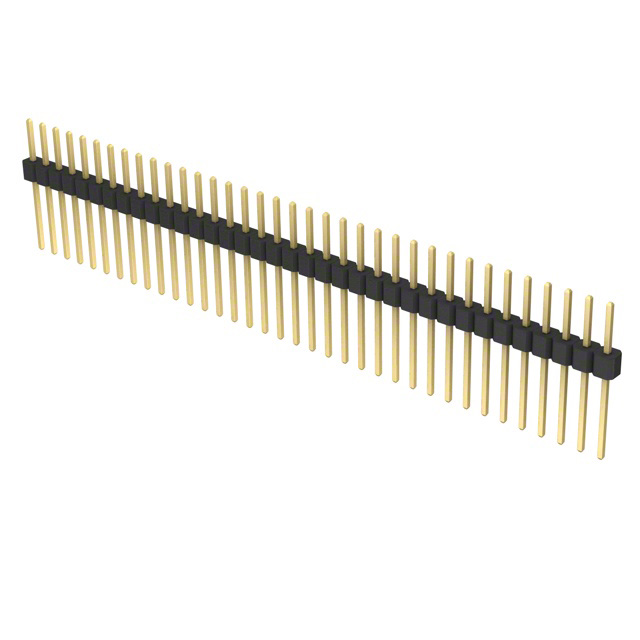

 Sullins Connector Solutions | UL94 V-0 | 36 | 1 | Unshrouded | Solder | Flash | 0.098 in | 2.5 mm | Black | Board to Board Cable | Push-Pull | 0.42 in | 10.67 mm | Flash | 3 A | -40 °C | 105 ░C | Gold | Brass | Square | Through Hole | Male Pin | Gold | Polybutylene Terephthalate (PBT) | Breakaway Header | All | 0.1 in | 2.54 mm | 19.01 mm | 0.23 in | 0.748 in | 5.84 mm | ||||||||
 Sullins Connector Solutions | UL94 V-0 | 72 | 2 | Unshrouded | Solder | Flash | 0.098 in | 2.5 mm | Black | Board to Board Cable | Push-Pull | Flash | 3 A | -40 °C | 105 ░C | Gold | Brass | Square | Through Hole | Male Pin | Gold | Polybutylene Terephthalate (PBT) | Breakaway Header | All | 0.1 in | 2.54 mm | 14.18 mm | 0.23 in | 2.54 mm | 0.1 in | 0.23 in | 5.84 mm | 0.558 in | 5.84 mm | ||||||
 Sullins Connector Solutions | UL94 V-0 | 36 | 1 | Unshrouded | Solder | Flash | 0.098 in | 2.5 mm | Black | Board to Board Cable | Push-Pull | 0.12 in | 3.05 mm | Flash | 3 A | -40 °C | 105 ░C | Gold | Brass | Square | Through Hole | Male Pin | Gold | Polybutylene Terephthalate (PBT) | Breakaway Header | All | 0.1 in | 2.54 mm | 11.39 mm | 0.23 in | 0.448 in | 5.84 mm | ||||||||
 Sullins Connector Solutions | UL94 V-0 | 72 | 2 | Unshrouded | Solder | Flash | 0.098 in | 2.5 mm | Black | Board to Board Cable | Push-Pull | 0.12 in | 3.05 mm | Flash | 3 A | -40 °C | 105 ░C | Gold | Brass | Square | Through Hole | Male Pin | Gold | Polybutylene Terephthalate (PBT) | Breakaway Header | All | 0.1 in | 2.54 mm | 11.39 mm | 0.23 in | 2.54 mm | 0.1 in | 0.448 in | 5.84 mm | ||||||
 Sullins Connector Solutions | UL94 V-0 | 36 | 1 | Unshrouded | Solder | Flash | 0.098 in | 2.5 mm | Black | Board to Board Cable | Push-Pull | 0.32 in | 8.13 mm | Flash | 3 A | -40 °C | 105 ░C | Gold | Brass | Square | Through Hole | Male Pin | Gold | Polybutylene Terephthalate (PBT) | Breakaway Header | All | 0.1 in | 2.54 mm | 16.47 mm | 0.23 in | 0.648 in | 5.84 mm |
