V7 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

BASIC / SNAP ACTION SWITCHES V-BASIC SW SPDT 15A 250VAC ROLLER ACTR

Part	Electrical Life	Operating Force	Circuit	Overtravel [custom]	Overtravel [custom]	Termination Style	Mechanical Life	Voltage Rating - AC	Differential Travel	Differential Travel	Pretravel	Pretravel	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Switch Function	Mounting Type	Release Force	Actuator Type	Current Rating (Amps)	Operating Position [x]	Operating Position [x]	Features	Ingress Protection	Operating Position	Operating Position	Differential Travel [x]	Differential Travel [x]

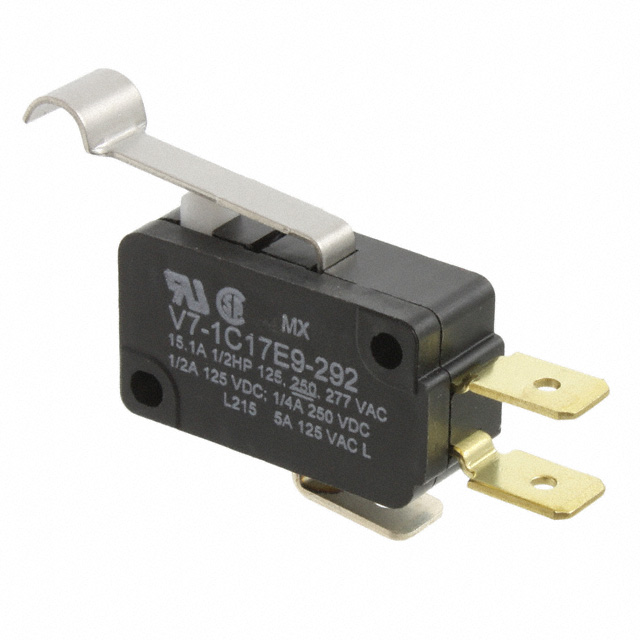

Honeywell Sensing and Productivity Solutions V7-1C17E9-292	100000 Cycles	90 gf	SPDT	0.06 "	1.5 mm	Quick Connect - 0.250" (6.3mm)	10000000 Cycles	125 V	0.76 mm	0.03 in	0.106 in	2.7 mm	85 °C	-40 C	125 VDC	On-Mom	Chassis Mount	9 gf	Lever Simulated Roller	15 A 500 mA	18.5 mm	0.73 in
Honeywell Sensing and Productivity Solutions V7-2B17P07-207-1		75 gf	SPDT			PC Pin		125 V					85 °C	-40 C		On-Mom			Lever Roller	11 A
Honeywell Sensing and Productivity Solutions V7-5F37E9-000-1
Honeywell Sensing and Productivity Solutions 1CPSC6A			4PST-2NO/2NC					250 V					80 °C	-40 C	60 VDC	Off-On On-Off				50 mA			Lighted Indicator	IP67 - Dust Tight Waterproof

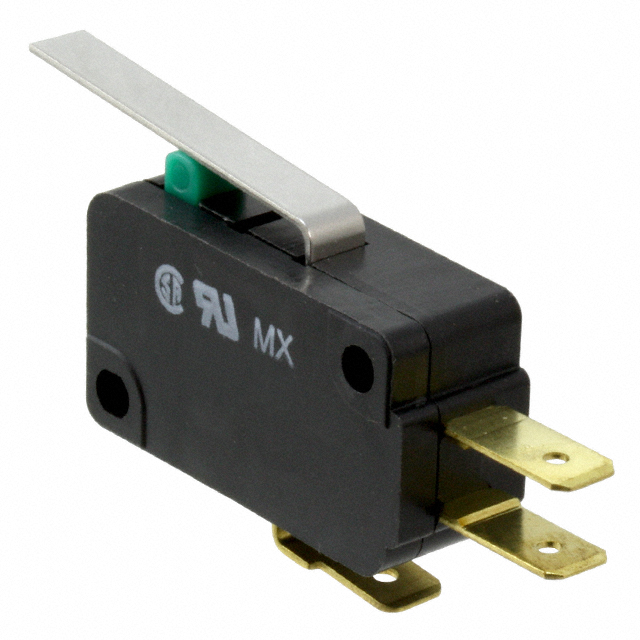

Honeywell Sensing and Productivity Solutions V7-2S17D8-022	100000 Cycles	41 gf	SPDT	0.07 "	1.8 mm	Quick Connect	10000000 Cycles	125 V	0.7 mm	0.028 in	0.128 in	3.25 mm	85 °C	-40 C		On-Mom	Chassis Mount	3 gf	Lever Straight	100 mA					15.3 mm	0.602 in

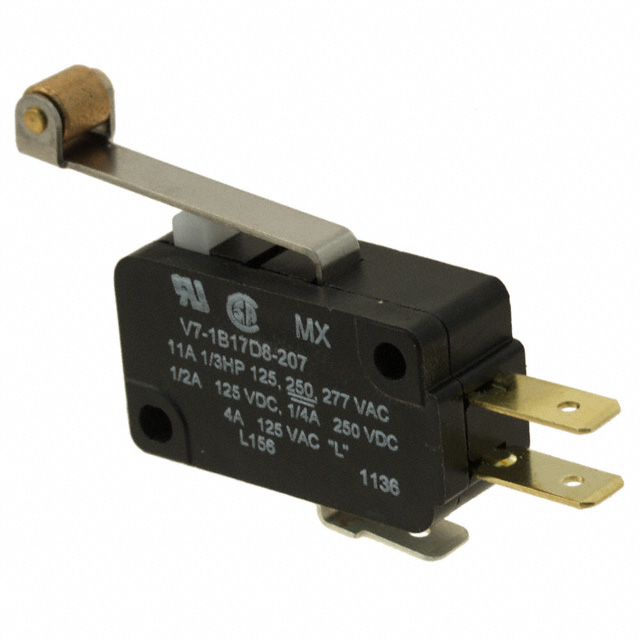

Honeywell Sensing and Productivity Solutions V7-1B17D8-207	100000 Cycles	85 gf	SPDT	0.06 "	1.5 mm	Quick Connect	10000000 Cycles	125 V	0.76 mm	0.03 in	0.114 in	2.9 mm	85 °C	-40 C	125 VDC	On-Mom	Chassis Mount	9 gf	Lever Roller	11 A 500 mA					20.6 mm	0.812 in
Honeywell Sensing and Productivity Solutions V7-3E17E9	100000 Cycles	50 gf	SPDT	0.05 "	1.27 mm	Quick Connect - 0.250" (6.3mm)	10000000 Cycles	125 V			0.047 in	1.2 mm	85 °C	-40 C	125 VDC	On-Mom	Chassis Mount		Round (Pin Plunger)	0.5 mA 10 A					14.7 mm	0.579 in	0.01 in	0.25 mm
Honeywell Sensing and Productivity Solutions V7-6C39D8-002
Honeywell Sensing and Productivity Solutions V7-1Z19E9	100000 Cycles	225 gf	SPDT	0.05 "	1.27 mm	Quick Connect - 0.250" (6.3mm)	10000000 Cycles	277 V			0.047 in	1.2 mm	85 °C	-40 C		On-Mom	Chassis Mount	20 gf	Round (Pin Plunger)	25 A					14.7 mm	0.579 in	0.01 in	0.25 mm

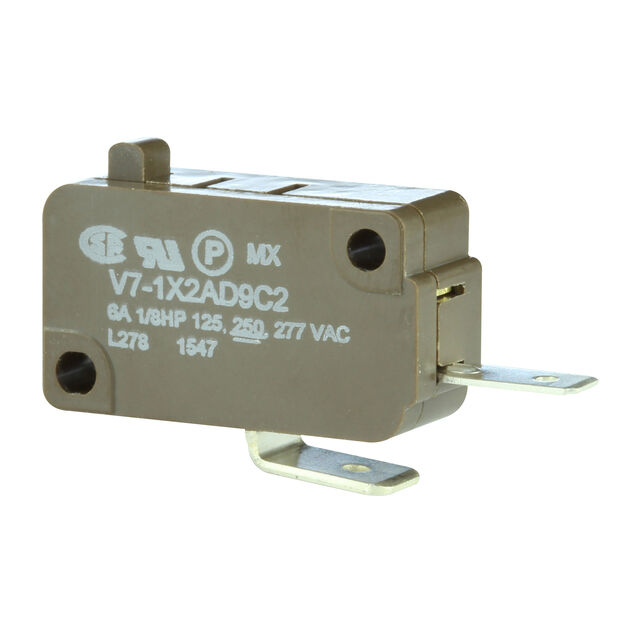

Honeywell Sensing and Productivity Solutions V7-1X2AD9C2		150 gf	SPST-NO	0.05 "	1.27 mm	Quick Connect - 0.250" (6.3mm)	10000000 Cycles	125 V			0.047 in	1.2 mm	85 °C	-40 C		Off-Mom	Chassis Mount		Round (Pin Plunger)	6 A					14.7 mm	0.579 in	0.01 in	0.25 mm
