SMJ001 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

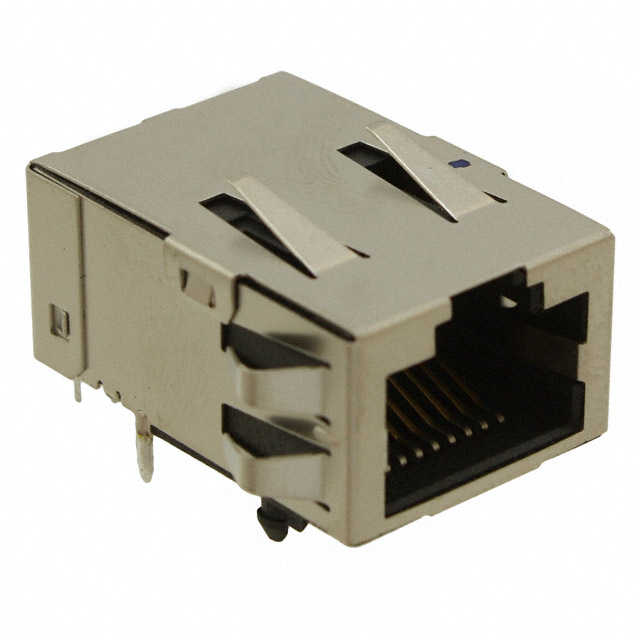

CONN JACK 1PORT PCB
| Part | Contact Finish Thickness | Contact Finish Thickness | Shield Material | Housing Material | Number of Cores per Jack | Applications | Features | Mounting Type | Shielding | Height Above Board | Height Above Board | LED Color | Orientation | Number of Ports | Contact Material | Termination | Tab Direction | Connector Type | Contact Finish | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | 50 µin | 1.27 µm | Brass | Polyamide (PA46) Nylon 4/6 | 8 | 10/100/1000 Base-T AutoMDIX | Board Lock | Through Hole | EMI Finger Shielded | 10.6 mm | 0.417 in | Does Not Contain LED | 90 ° | 1 | Copper Alloy | Solder | Up | RJ45 | Gold | 1 |
