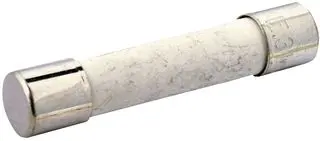

FUSE 250V SB 3AB Pb-FREE 8A
Description
AI
The 3AB Slo-Blo® Fuse with ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal for applications where high current loads are expected.
Beta
⌘K
FUSE 250V SB 3AB Pb-FREE 8A
FUSE 250V SB 3AB Pb-FREE 8A
| Part | DC Cold Resistance | Current Rating (Amps) | Fuse Type | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Breaking Capacity @ Rated Voltage | Approval Agency | Mounting Type | Melting I²t | Response Time | Package / Case [y] | Package / Case [x] | Package / Case | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE | 0.0193 Ohms | 8 A | Cartridge Ceramic | -55 C | 125 °C | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | 400 A | CE CSA K-Mark PSE UL | Requires Holder | 67.1 I²t | Slow Blow | 0.25 in | 3AB 3AG | 250 V | |
 LITTELFUSE | 0.0193 Ohms | 8 A | Cartridge Ceramic | -55 C | 125 °C | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | 400 A | CE CSA KC PSE UL | Requires Holder | 67.1 I²t | Slow Blow | 0.25 in | 3AB 3AG | 250 V | |
 LITTELFUSE | 8 A | Cartridge Ceramic | -55 C | 125 °C | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | 400 A | CE CSA K-Mark PSE UL | Requires Holder | 67.1 I²t | Slow Blow | 0.25 in | 3AB 3AG | 250 V |
