B51-024 Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K

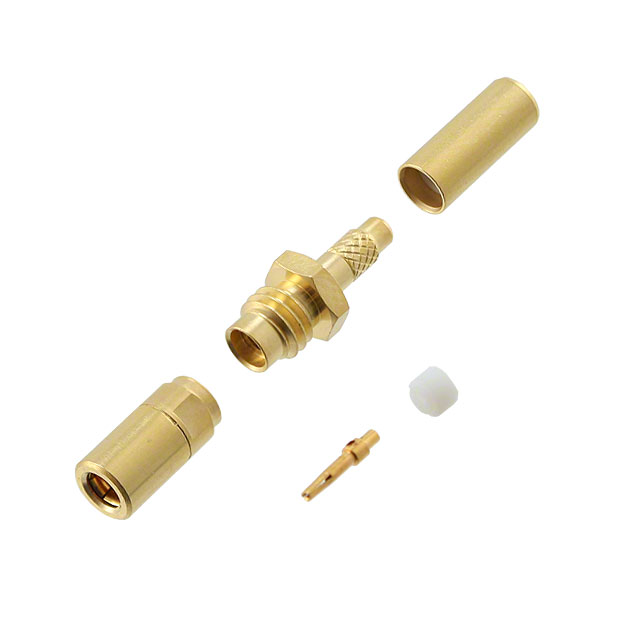

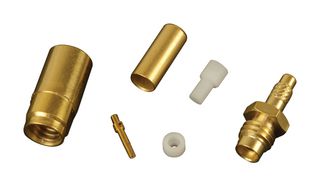

RF / COAXIAL CONNECTOR, SMB COAXIAL, STRAIGHT PLUG, CRIMP, 50 OHM, RG174, RG316, BRASS
| Part | Mating Cycles | Body Material | Center Contact Plating | Insertion Loss | Dielectric Material | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Includes | Center Contact Material | Cable Group | Cable Group | Number of Ports | Frequency - Max [Max] | Impedance | Connector Style | Contact Termination | Housing Color | Mounting Type | Shield Termination | Connector Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ITT Cannon, LLC | 500 | Brass | Gold | 0.25 dB | Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | 1 Connector 1 Contact 1 Ferrule 1 Front Body 2 Insulators | Brass | RG-174 | 316 | 1 | 4 GHz | 50 Ohms | SMB | Solder | Gold | Free Hanging (In-Line) | Crimp | Female Socket Plug | Snap-On |
