PNF18 Series

Catalog

FORK TERMINAL 18-22AWG COPPER RED 19.79MM TIN BOX

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Tongue Inside Opening	Tongue Inside Opening	Material - Insulation	Features	Insulation	Length - Overall [x]	Length - Overall [x]	Terminal Type	Contact Material	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Stud/Tab Size	Contact Finish	Color	Termination	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Width - Outer Edges [x]	Width - Outer Edges [x]	Thickness	Thickness	Insulation Diameter	Insulation Diameter	Width - Outer Edges	Width - Outer Edges	Length - Overall	Length - Overall	Insulation Diameter [Max]	Insulation Diameter [Min]	Tongue Inside Opening [x]	Tongue Inside Opening [x]
Panduit Corp PNF18-6F-M	0.136 in	3.45 mm	3.81 mm	0.15 in	Nylon Polyamide (PA)	Butted Seam Serrated Termination	Insulated	20.32 mm	0.8 "	Standard	Copper	22 AWG	17.5 AWG	Free Hanging (In-Line)	6 Stud	Tin	Red	Crimp

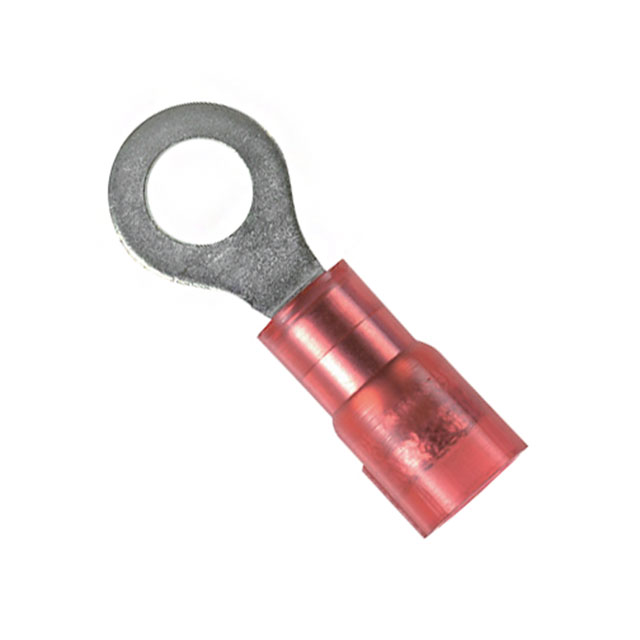

Panduit Corp PNF18-10R-C					Nylon Polyamide (PA)	Serrated Termination	Insulated	22.1 mm	0.87 in	Circular	Copper	22 AWG	17.5 AWG	Free Hanging (In-Line)	10 Stud	Tin	Red	Crimp	0.08 in	3.45 mm	0.136 in	2.03 mm	0.32 in	8.13 mm	0.81 mm	0.032 in
Panduit Corp PNF18-6LF-M			3.81 mm	0.15 in	Nylon Polyamide (PA)	Butted Seam	Insulated	20.83 mm	0.82 in	Snap Spring	Copper	22 AWG	17.5 AWG	Free Hanging (In-Line)	6 Stud	Tin	Red	Crimp									0.145 in	3.68 mm	6.86 mm	0.27 in
Panduit Corp PNF18-14R-3K	0.15 in	3.81 mm			Nylon Polyamide (PA)	Butted Seam Serrated Termination	Insulated			Circular	Copper	22 AWG	17.5 AWG	Free Hanging (In-Line)	0.25 Stud	Tin	Red	Crimp					0.38 in	9.65 mm	0.81 mm	0.032 in					1.06 in	26.92 mm
Panduit Corp PNF18-8LF-3K					Nylon Polyamide (PA)	Serrated Termination	Insulated	22.61 mm	0.89 in	Snap Spring	Copper	22 AWG	17.5 AWG	Free Hanging (In-Line)	8 Stud	Tin	Red	Crimp					0.29 in	7.37 mm			2.29 mm 3.68 mm						0.145 in	0.09 in	4.06 mm	0.16 in
Panduit Corp PNF18-14R-M					Nylon Polyamide (PA)	Serrated Termination	Insulated	27.43 mm	1.08 in	Circular	Copper	22 AWG	17.5 AWG	Free Hanging (In-Line)	0.25 Stud	Tin	Red	Crimp	0.08 in	3.45 mm	0.136 in	2.03 mm	0.46 in	11.68 mm	0.81 mm	0.032 in
Panduit Corp PNF18-10R-3K					Nylon Polyamide (PA)	Butted Seam Serrated Termination	Insulated	21.84 mm	0.86 "	Circular	Copper	22 AWG	17.5 AWG	Free Hanging (In-Line)	10 Stud	Tin	Red	Crimp					0.25 "	6.35 mm	0.81 mm	0.032 in	2.29 mm 3.68 mm						0.145 in	0.09 in
Panduit Corp PNF18-6LF-C			3.81 mm	0.15 in	Nylon Polyamide (PA)		Insulated	20.83 mm	0.82 in	Snap Spring	Copper	22 AWG	17.5 AWG	Free Hanging (In-Line)	6 Stud	Tin	Red	Crimp									0.145 in	3.68 mm	6.86 mm	0.27 in
Panduit Corp PNF18-6R-M					Nylon Polyamide (PA)	Serrated Termination	Insulated			Circular	Copper	22 AWG	17.5 AWG	Free Hanging (In-Line)	6 Stud	Tin	Red	Crimp	0.08 in	3.45 mm	0.136 in	2.03 mm	0.25 "	6.35 mm	0.81 mm	0.032 in					0.77 in	19.56 mm
Panduit Corp PNF18-8R-C					Nylon Polyamide (PA)	Serrated Termination	Insulated	22.1 mm	0.87 in	Circular	Copper	22 AWG	17.5 AWG	Free Hanging (In-Line)	8 Stud	Tin	Red	Crimp	0.08 in	3.45 mm	0.136 in	2.03 mm			0.81 mm	0.032 in			7.87 mm	0.31 in
